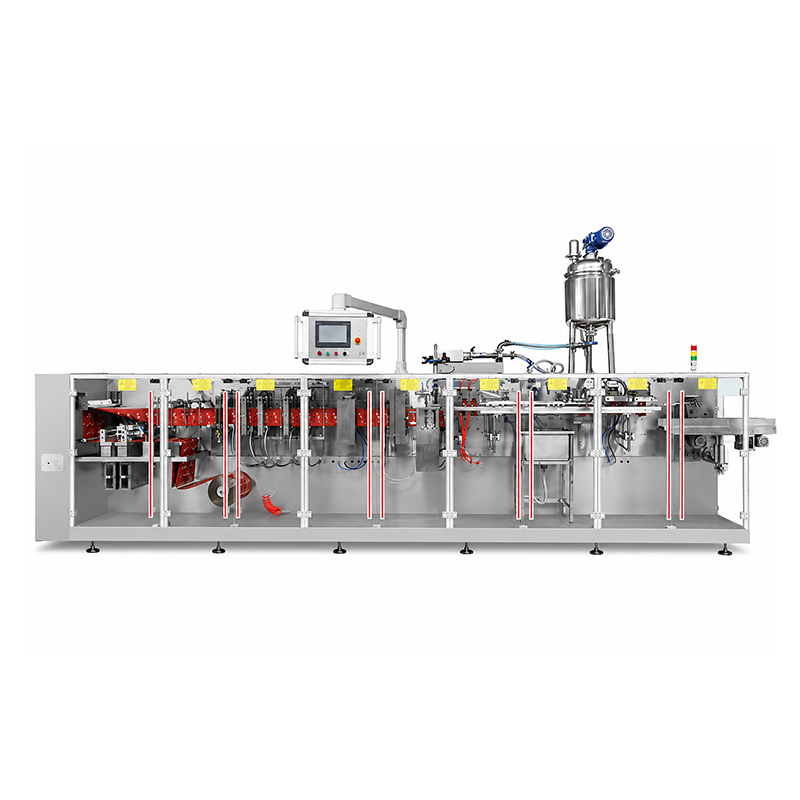

APK-130S Doypack Machine — Stand-Up Pouches from Roll Film
60 to 130 mm stand-up pouches, up to 200 ml, 35 to 45 a minute
You’re buying printed stand-up pouches, and they’re a real line on your cost sheet. This machine makes the pouch itself — film comes off a roll, the bottom gusset is punched and formed, the pouch is filled and sealed, all in one horizontal line. Film costs less than a finished pouch. The trade-off is a 4.5 m machine and running one size for long stretches.
1. Pouch size: 60 to 130 mm wide, 80 to 190 mm long
2. Fill: up to 200 ml
3. Speed: 35 to 45 pouches a minute
4. Length: 4.5 m, the shortest line in our roll-film group
Is the APK-130S the right size for you?
✓ Yes, if…
- You run one pouch size for long stretches, and pouch cost is a real line item
- Your pouch is 60 to 130 mm wide and holds up to 200 ml
- You need 35 to 45 pouches a minute
- You have 4.5 m of floor and three-phase supply at 6 kW
- You're packing a powder or a free-flowing granule
✕ Buy something else if…
- You run several pouch sizes → a premade pouch machine changes size with an adjustment. Buying film only pays off when the size stays put
- Your pouch is over 130 mm wide or 200 ml → the APK-180S takes 1,000 ml
- You'd rather not manage film rolls and scrap → buy printed pouches and see our premade pouch machines
- Your product is a liquid or a gel → we build these machines for powders and granules

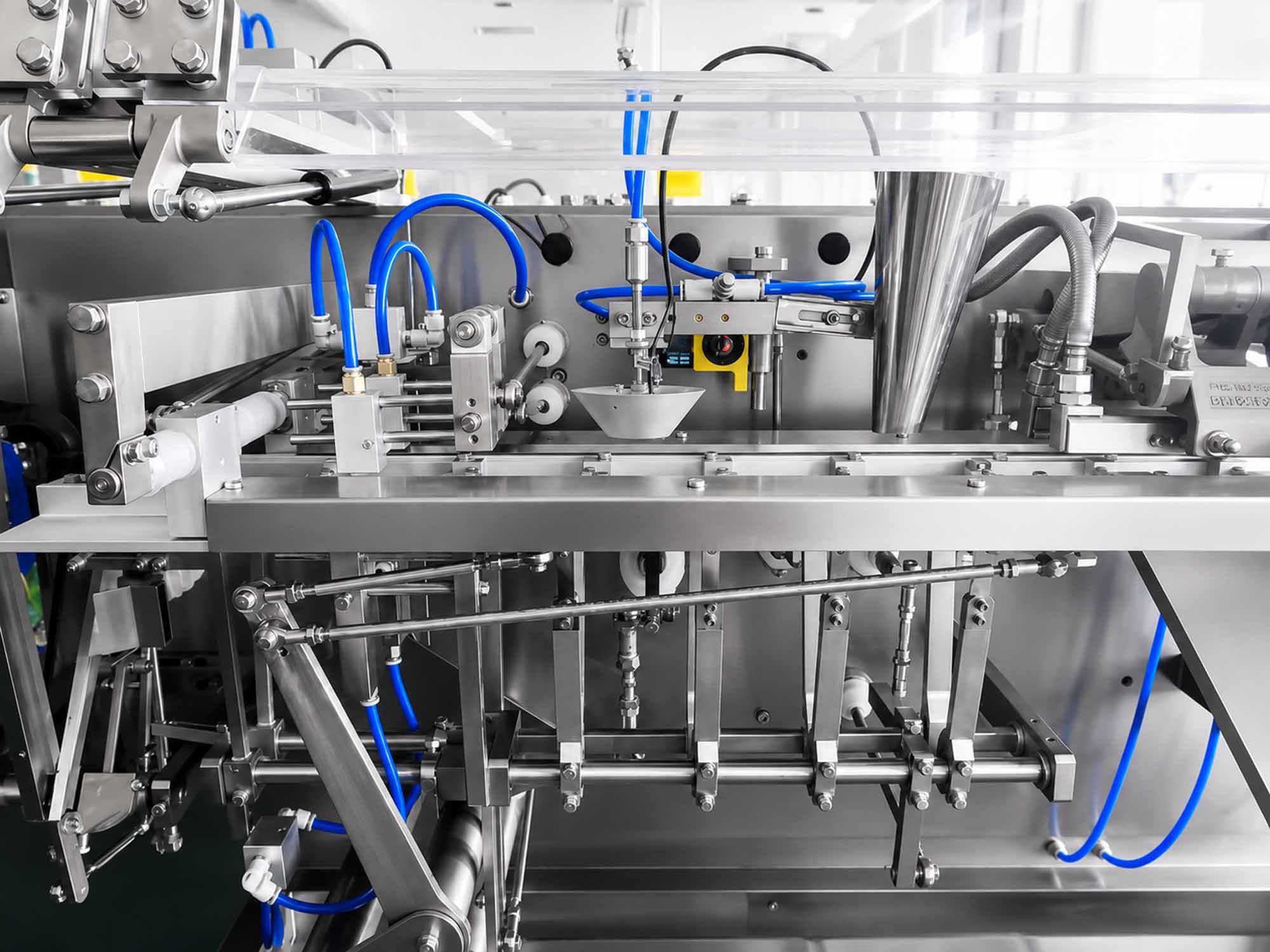

Film In, Stand-Up Pouch Out
Film comes off a roll, is folded by a forming plough, and the bottom gusset is punched before the side seals are made. The pouch that reaches the filler is one the machine made seconds earlier — no pouch magazine to refill, and no pouches bought in.

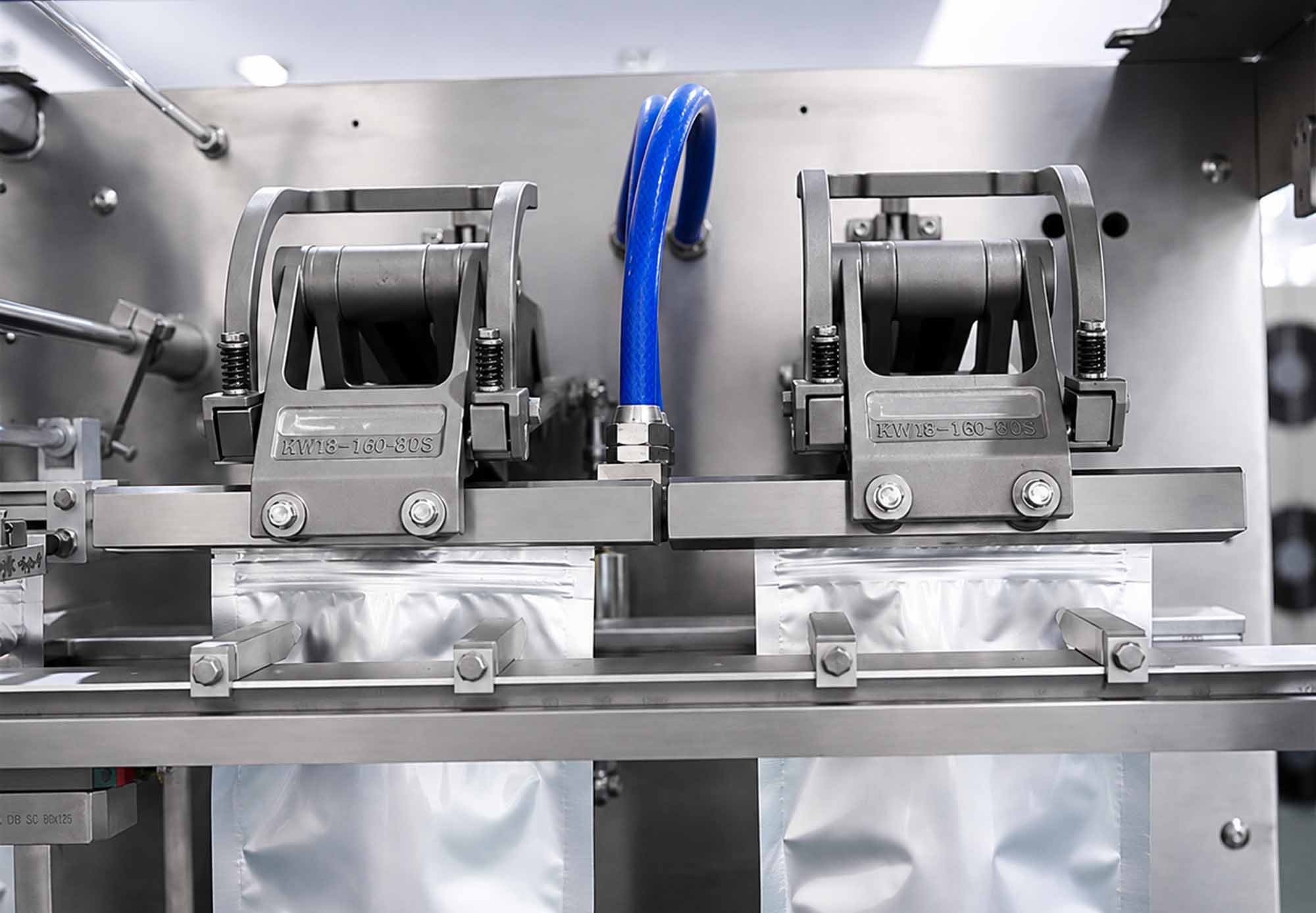

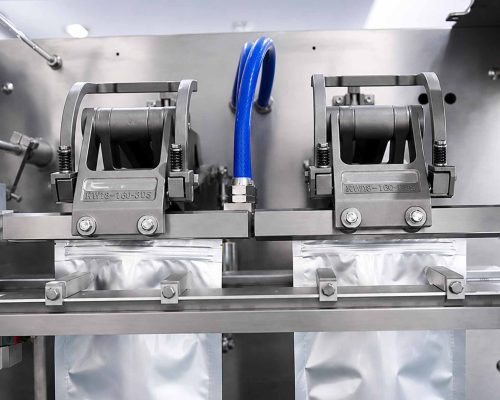

Servo Film Advance
A servo pulls the film forward instead of a mechanical gripper. Pouch length is set on the touchscreen, and the pull stays even as the roll gets lighter.
Registration to Your Printed Film
A photocell reads the registration mark on printed film and corrects the feed as it goes, so the artwork lands in the same place on every pouch rather than drifting across a roll.

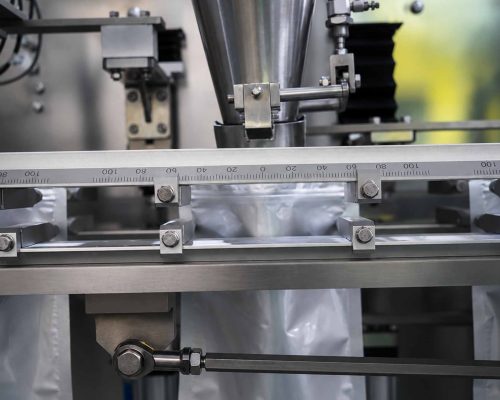

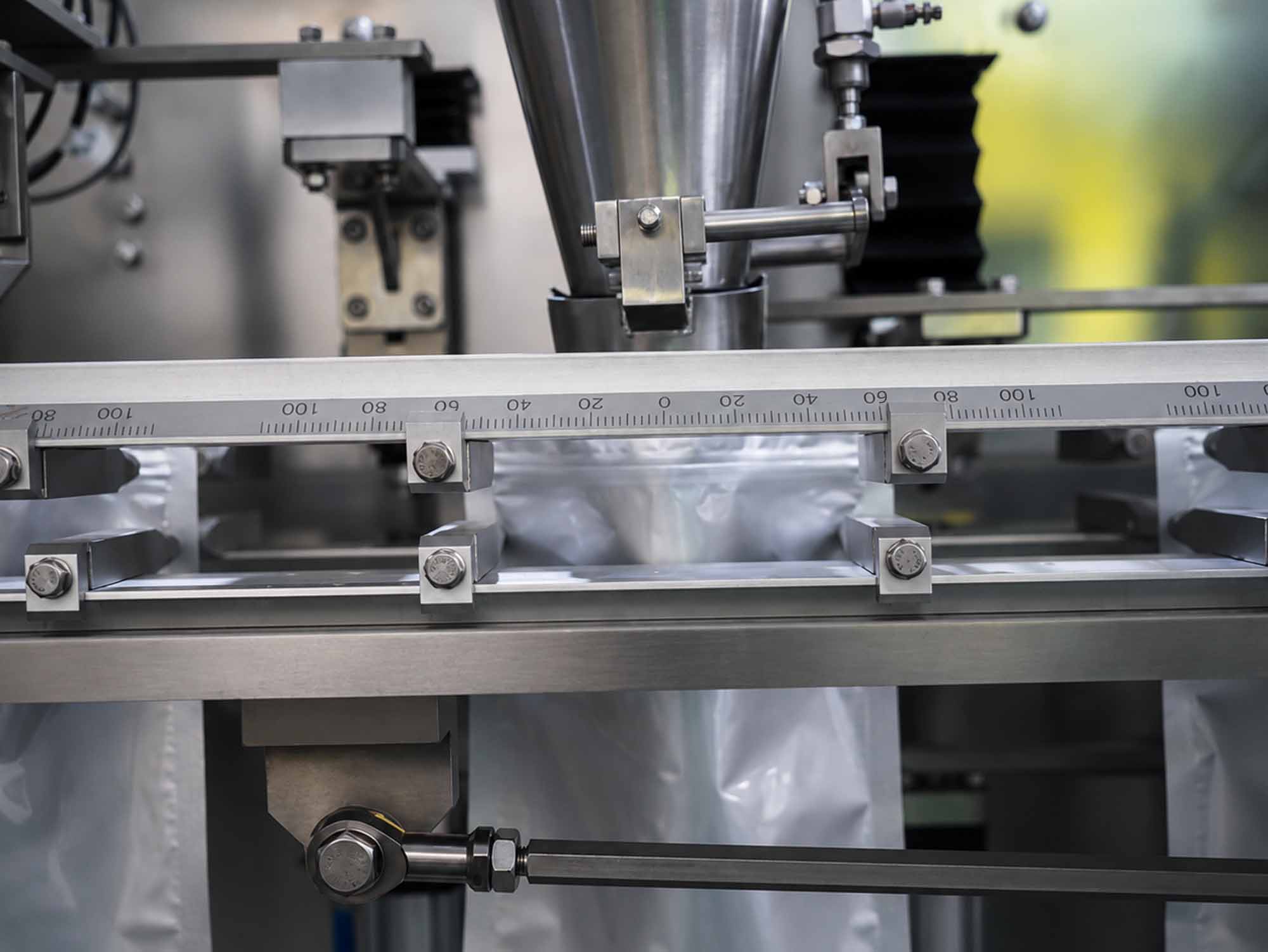

Forming, Filling and Sealing at Separate Stations
On a vertical form-fill-seal machine, the product drops while the bag is still being made. Here the pouch is formed, punched, side-sealed, filled and top-sealed at separate stations along a horizontal track, so powder isn’t falling past a seal while it’s being made.
Technical specification
Parameter | APK-130S | What it means for you |
Pouch width | 60–130 mm | Adjust width freely within this range without purchasing or swapping change parts, lowering tooling costs and changeover downtime. |
Pouch length | 80–190 mm | Set on the touchscreen |
Max fill | 200 ml | Over that, see the APK-180S |
Speed | 35–45 pouches/min | — |
Pouch types | Stand-up pouch, shaped pouch, hang hole | Produces retail-ready packaging formats with high shelf visibility. Handles stand-up bases and hang holes on a single machine. |
Power | 6 kW | Energy-efficient 6 kW operation. Voltage and phase configurations are customized to match your facility’s local power grid. |
Air | 300 NL/min | — |
Dimensions | 4,500 × 940 × 2,150 mm | The shortest line in the roll-film group |
Weight | 1,000 kg | — |
Construction | SUS304 | Built with heavy-gauge SUS304 stainless steel to ensure a robust, corrosion-resistant frame that meets strict industrial hygiene and longevity requirements. |
Model comparison
Model | Pouch width | Max fill | Speed | Power | Length |
APK-130S | 60–130 mm | 200 ml | 35–45/min | 6 kW | 4.5 m |
APK-180S | 90–180 mm | 1,000 ml | 40–60/min | 9 kW | 6.0 m |
APK-240S | 100–240 mm | 1,500 ml | 40–60/min | 11 kW | 8.7 m |
APK-280DS | 90–140 mm | 600 ml | 90–120/min | 15.5 kW | 10.1 m |
Every machine in this group makes the pouch from roll film. If you'd rather buy printed pouches, see our premade pouch machines — shorter, lower power, and a size change is an adjustment.
Production Material Applications
Thanks to its universal docking design, the main packager can be integrated with various filling and feeding systems to handle diverse physical product states:
Single-serve powder pouches
Electrolyte, collagen and drink-mix portions in small stand-up pouches, run in one size for weeks.
Trial and sample sizes
Small pouches of a new flavour, where the pouch cost matters as much as the powder in it.
Probiotic and enzyme granules
Free-flowing granules on a volumetric cup rather than an auger.
Shaped and hang-hole pouches
Pouches for peg display, with the hang hole and contour punched inline rather than bought in.
What changing over involves
What changed | What you adjust | Roughly |
Same pouch, new film roll | Splice the new roll | 15-30 Minutes |
Pouch length | Touchscreen setting | 15-30 Minutes |
Pouch width | 60 mm–130 mm | 15-30 Minutes |
Powder → granule | Dosing unit — auger to cup | 15-30 Minutes |
A roll-film machine earns its keep running one size for a long time. If you change size weekly, that’s what premade pouch machines are for.
What to check before you buy
What a size change costs you
On a roll-film machine, find out what changes when your pouch width changes — a setting or a set of parts — and how long it takes. That's the number that decides whether buying film pays off.
Your film, not theirs
Every supplier's speed was measured on some film. Send yours and ask for the rate they held on it.
Installation and training
Ask what's included and what costs extra.
Why Buy From AIPAK?
One Point of Contact
You deal with us for the machine, the change parts, the installation and the service call. If something goes wrong on your floor, there’s one number to ring and one team responsible for fixing it — not a machine supplier and an installer pointing at each other.
We Run Your Product Before You Order
Every supplier quotes a speed and an accuracy figure, and those were measured on somebody’s product — probably not yours. Running your own sample is the only way to know what the machine will actually do on it.
A U.S. Number, Answered by Us
+1 (213) 526-8644 — phone or WhatsApp, 9am to 11pm Eastern, Monday to Friday. That’s 6am to 8pm Pacific, so it covers a full working day anywhere in the continental U.S. Outside those hours and at weekends, message us and we’ll come back at the start of the next window. We’d rather tell you that than claim 24/7 and not answer.
Spare Parts and Lead Time, in Writing
Wear parts are listed and priced in your quote before you sign, so you know what the first year costs. Lead time is confirmed in writing with your order — not estimated on a call.
Product Technical FAQ for APK-130S Premade Pouch Filling Machine
Traditional VFFS machines form pouches and fill products vertically within the same forming process. The APK-130S utilizes a horizontal walking beam that separates pouch forming, bottom hole punching, multi-stage vertical sealing, dosing, and final top closing into dedicated physical stations. This configuration provides more controlled pouch forming and sealing, while reducing the risk of product entering the sealing area during filling.
The machine is engineered to process a wide range of heat-sealable flexible roll stock, including standard PVC, multi-layer laminated films, PET/AL/PE foils, and eco-friendly recyclable barrier materials. Its independent PID digital temperature controllers allow operators to micro-adjust sealing bars to handle thin-gauge or heavy-foil films smoothly.
The machine features a computerized specification changeover system driven by a high-torque servo advance drive. Operators can adjust the relevant pouch specifications directly through the HMI touchscreen console, allowing faster changeovers and stable film pulling with reduced deviation.

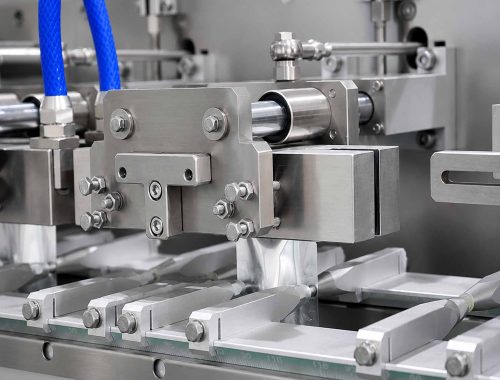

The line features a dual-stage photodiode photocell tracking system that actively monitors color marks and registration markers on the film web. If it flags any micro-scale stretching or tracking drift, the PLC instantly recalculates web feed speed to keep cutting edges perfectly aligned and prevent graphic clipping.
Yes, the main packager features a universal mechanical gantry deck with excellent compatibility across various filling systems. It can be integrated with servo motor auger fillers for powders and volumetric cups or multi-head combination weighers for granules, depending on the product and dosing requirements.
The APK-130S handles a pouch width range of 60 mm to 130 mm, a pouch length range of 80 mm to 190 mm, and delivers a maximum operational filling capacity of up to 200 ml at a stable production speed of 35 to 45 pouches per minute.
The system incorporates a specialized shape function module directly inline before final discharge. By integrating custom mechanical die-punch tooling and a rolling perforating device, the machine automatically executes irregular pouch contours, tear notches, or hanging euro-holes with clean edge finishes and zero plastic burrs.
Roll film if you run one pouch size for long stretches and pouch cost matters: film costs less than a finished pouch. Premade pouches if you run several sizes: the machine is shorter, draws less power, and a size change is an adjustment. Tell us how many sizes you run and we’ll tell you which one pays back.
Customers Also Interested In...
Expand your primary production footprint or seamlessly integrate your turnkey packaging facility by exploring AIPAK’s industry-proven pharmaceutical and packaging machinery lines:
Send Us Your Film Spec and a Powder Sample
Three things decide whether this machine pays off for you. Your pouch has to be 60 to 130 mm wide and hold up to 200 ml. You need 4.5 m of floor for the line. And you should be running one pouch size for long stretches — roll film costs less per bag than a premade pouch, but that saving only adds up when the size stays put.
Send us your film spec and a sample of your powder. We’ll form, fill and seal pouches from it and send them back, so you see the seal, the stand-up bottom and the fill weight on your own material before you order. If you run several sizes, we’ll tell you honestly that a premade pouch machine may suit you better.
- Reply within one business day
- Your film and powder run on the machine before you order
- Your formula and artwork stay with us
No sales calls — we reply by email or WhatsApp, whichever you gave us.
