Blister Packaging Machine

Flat-Plate and Rotary Blister Machines for Tablets, Capsules and Softgels

A flat-plate machine forms deeper pockets; a rotary machine runs several times faster. Your pocket depth usually decides which one you need.

Flat-Plate and Rotary
80 to 380 mm Forming Width
Alu-PVC and Alu-Alu

Why Choose AIPAK Blister Packaging Machines?

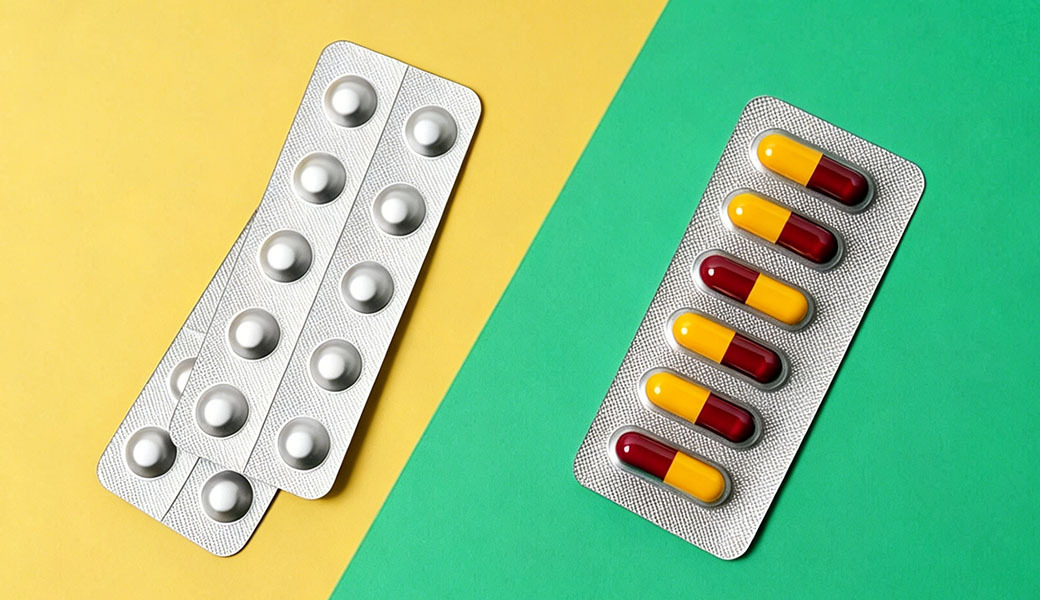

Material and Feeder, Decided Before We Build

Material and Feeder, Decided Before We Build

Alu-PVC, cold-formed Alu-Alu, tropical blister and dialysis paper each behave differently, and so does every feeder. Some feeders run both Alu-PVC and Alu-Alu. The Alu-PVC universal feeder runs Alu-PVC only, and it can’t be converted after the machine ships. If Alu-Alu is anywhere in your plan, tell us at the quotation stage.

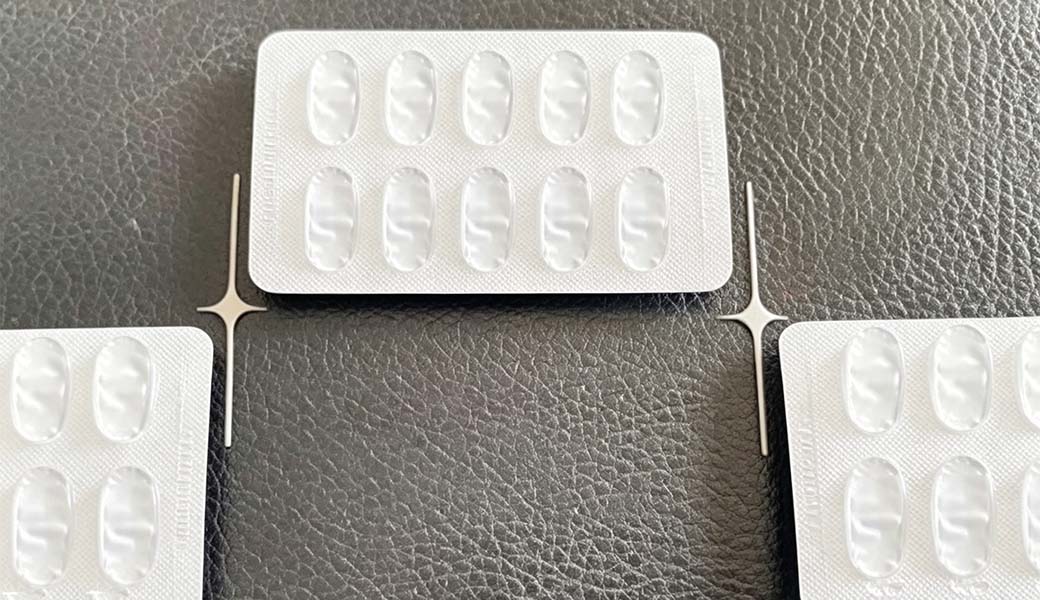

Servo Traction on the Wider Machines

Servo Traction on the Wider Machines

On our servo models, film advance is driven by a servo motor rather than a mechanical linkage. A linkage drifts across a long shift, and that drift turns into wasted foil at the gap between plates. Servo holds it. On cold-formed Alu-Alu, where the foil costs several times what Alu-PVC does, that gap is a real line item.

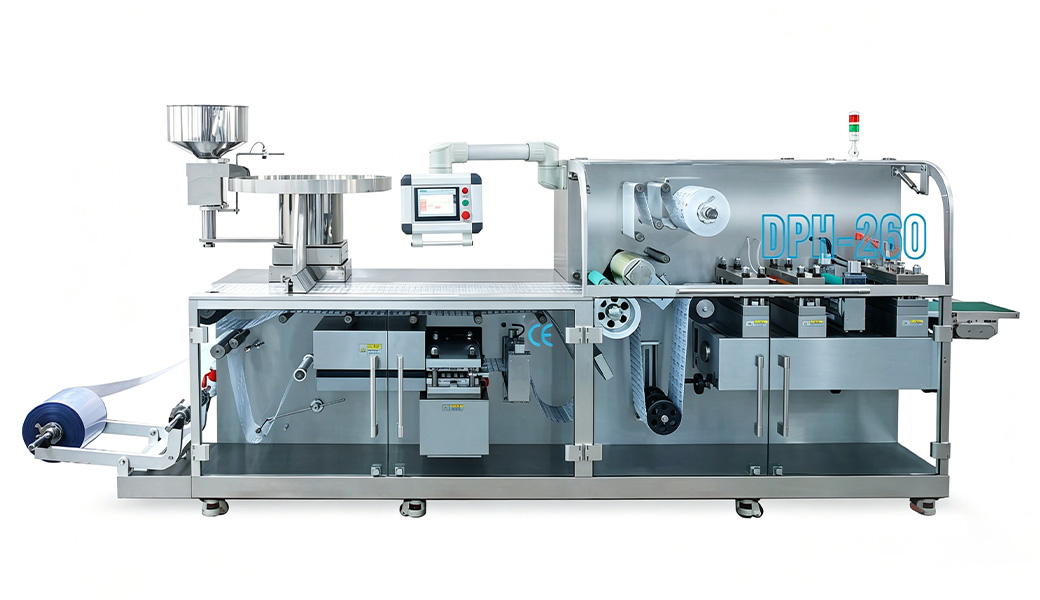

Separated Drive Compartment

Separated Drive Compartment

Drives, belts and motors sit behind the working area rather than under it. There’s less surface in the production zone to wipe down between batches, and nowhere for powder to settle under the forming station.

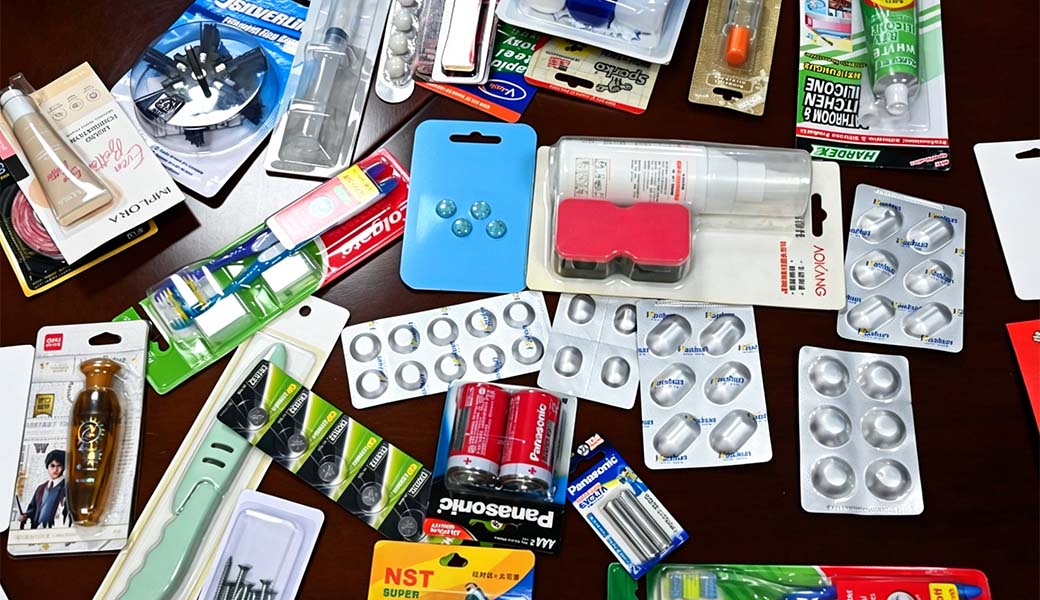

Linked to a Cartoner When You're Ready

Linked to a Cartoner When You're Ready

Every blister machine we supply can run standalone first and be linked to a cartoner later. When the vision system rejects a blister upstream, a linked cartoner skips that cycle — no carton drawn, no leaflet folded. Most customers buy the blister machine first and carton by hand until volume justifies the link.

Flat-Plate or Rotary
1. How tall is your item?

This decides it more often than speed does. A flat-plate machine presses warm film against a static mould and forms a deep pocket — up to 26 mm on Alu-PVC. A rotary machine forms against a turning drum, so the film has less dwell time and stretches less far: 12 to 16 mm is the ceiling. Large softgels, big caplets and chewables need flat-plate.

2. How many plates an hour?

Our flat-plate machines run up to about 60 punches a minute. Our rotary machines run up to 180. If you need more than about 12,000 plates an hour and your item is shallow enough, rotary is the answer.

3. How often do you change format?

A flat-plate format change is four moulds on a graduated rack. A rotary machine has heavier drums and rollers, and the wider the web the longer it takes. If you change format more than once a week, flat-plate costs you less in downtime.

4. What foil are you running?

Alu-Alu. Alu-Alu runs slower on any machine — on our DPP-260H1 it drops from 60 punches a minute to 40. Plan on your Alu-Alu figure, not the headline one.

 Flat-plate (DPP)Rotary (DPH)
Pocket depthUp to 26 mm on Alu-PVC12–16 mm
Punch rateUp to about 60/minUp to 180/min
ChangeoverFasterSlower, more so on wide webs
Best forDeep pockets, frequent format changes, large softgelsShallow tablets and capsules at volume

Flat-Plate or Rotary?

Where These Machines Are Running

Multivitamin and supplement blisters
Softgels and capsules
Effervescent and moisture-sensitive tablets
Large softgels and caplets

Model comparison

Model

Type

Punch rate

Forming area

Max depth

Power

Weight

DPP-80

Flat-plate

10–33/min

80 × 57 mm

15 mm

2.4 kW, single-phase

425 kg

DPP-120H

Flat-plate

10–35/min

120 × 110 mm

15 mm

4.5 kW

750 kg

DPP-150E

Flat-plate

10–40/min

150 × 120 mm

15 mm

6.5 kW

950 kg

DPP-180H

Flat-plate

10–50/min

180 × 150 mm

15 mm

8.5 kW

1,200 kg

DPP-260H1

Flat-plate

≤60/min Alu-PVC, ≤40 Alu-Alu

250 × 180 mm

26 mm Alu-PVC, 14 Alu-Alu

7.6 kW

1,600 kg

DPP-260H2

Rotary

60–130 times/min

240 × 240 × 12 mm

26 mm Alu-PVC, 14 Alu-Alu

7.6 kW

2,600 kg

DPH-260H

Rotary

80–150/min, 200 max

200 × 260 mm

16 mm

24 kW

3,000 kg

DPH-380H

Rotary

40–180/min, 200 max

320 × 380 mm

16 mm

28 kW

5,000 kg

Pocket depth is the column to read first. Every rotary machine stops at 16 mm; flat-plate goes to 26.

Send us your tablet, not your target speed

Item height and plate layout decide the machine. Post us a few samples and we’ll design the pocket, tell you whether it’s flat-plate or rotary, and run it before you order.

Documentation & Selection Support

Verify our quality standards and simplify your procurement process with our official documentation.

Documentation & Selection Support
Specifications for every flat-plate and rotary model, with footprint drawings and material options.
Quality Assurance
CE Declaration of Conformity for the blister machine range. Material certificates available on request.
Technical Standards
Send us your tablet or capsule samples and we'll design the pocket layout and plate arrangement around your product — before you commit to tooling.

FAQs on Blister Packaging Machines

How do I choose between a Flat-Plate and a Rotary Blister Packaging Machine?

A flat-plate machine forms deeper pockets — up to 26 mm on Alu-PVC — and changes format faster. A rotary machine runs several times faster but forms to 12–16 mm. If your item is tall, flat-plate is the answer whatever your volume.

Can one machine run both Alu-PVC and Alu-Alu?

It depends on the feeder specified at order. Some feeder types run both. The Alu-PVC universal feeder runs Alu-PVC only and can’t be converted afterwards. Cold-formed Alu-Alu also needs its own forming tooling, and it runs slower — on the DPP-260H1, 40 punches a minute instead of 60. Tell us at the quotation stage if Alu-Alu is in your plan.

What are the main factors that determine the speed of a blister packaging machine?

The throughput of a blister packaging machine is determined by three factors: the punch frequency (strokes per minute), the forming area width (which dictates how many plates are produced per stroke), and the material characteristics. On our widest machine, the DPH-380H, that means 40 to 180 punches a minute, 200 at most.

Does sealing heat reach the product?

Very little. Heating is PID-controlled and the forming and sealing molds are water-cooled. On the rotary machines, the seal is made by a roller, so each pocket spends only a moment in contact with the heat. If your product is heat-sensitive, send us a sample and we’ll check it on the machine.

Can I integrate a blister packaging machine with other downstream equipment?

Yes. Every blister machine we supply can run on its own first and be linked to a cartoner later. Camera inspection is an option. When it rejects a blister, a linked cartoner skips that cycle, so no carton is drawn and no leaflet is folded.

How long does a format change take?

On a flat-plate machine, four moulds — forming, sealing, embossing, cutting — sit on a rack mandrel with a graduated scale, so you set them by reading the scale rather than by eye. It takes 15-45 minutes. On a rotary machine the drums and rollers are heavier, and a wider web takes longer. If you change format weekly, that difference matters more than punch rate.

How deep a pocket can you form?

Up to 26 mm on Alu-PVC on the flat-plate DPP-260H1, 14 mm on cold-formed Alu-Alu. Rotary machines stop at 12 to 16 mm. Send us the item height before you look at anything else — it rules out more machines than speed does.

How fast can I get spare parts?

A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.

Do your machines meet U.S. electrical certification requirements?

Yes. Our machines are certified and use certified electrical components. Because the exact scope depends on the model and electrical configuration you select, our factory confirms it in writing before production.

Send us your item height and your plate layout.

Those two numbers decide whether you need flat-plate or rotary, and which width. Speed comes after. Send us a sample tablet or capsule and we’ll design the pocket and tell you honestly which machine fits — including when it’s the smaller one.
