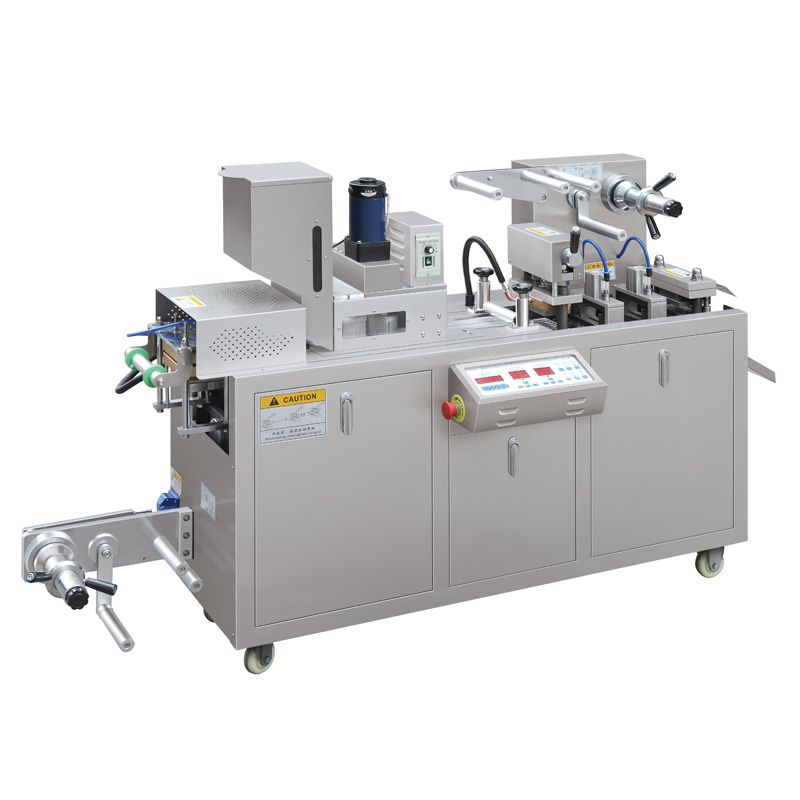

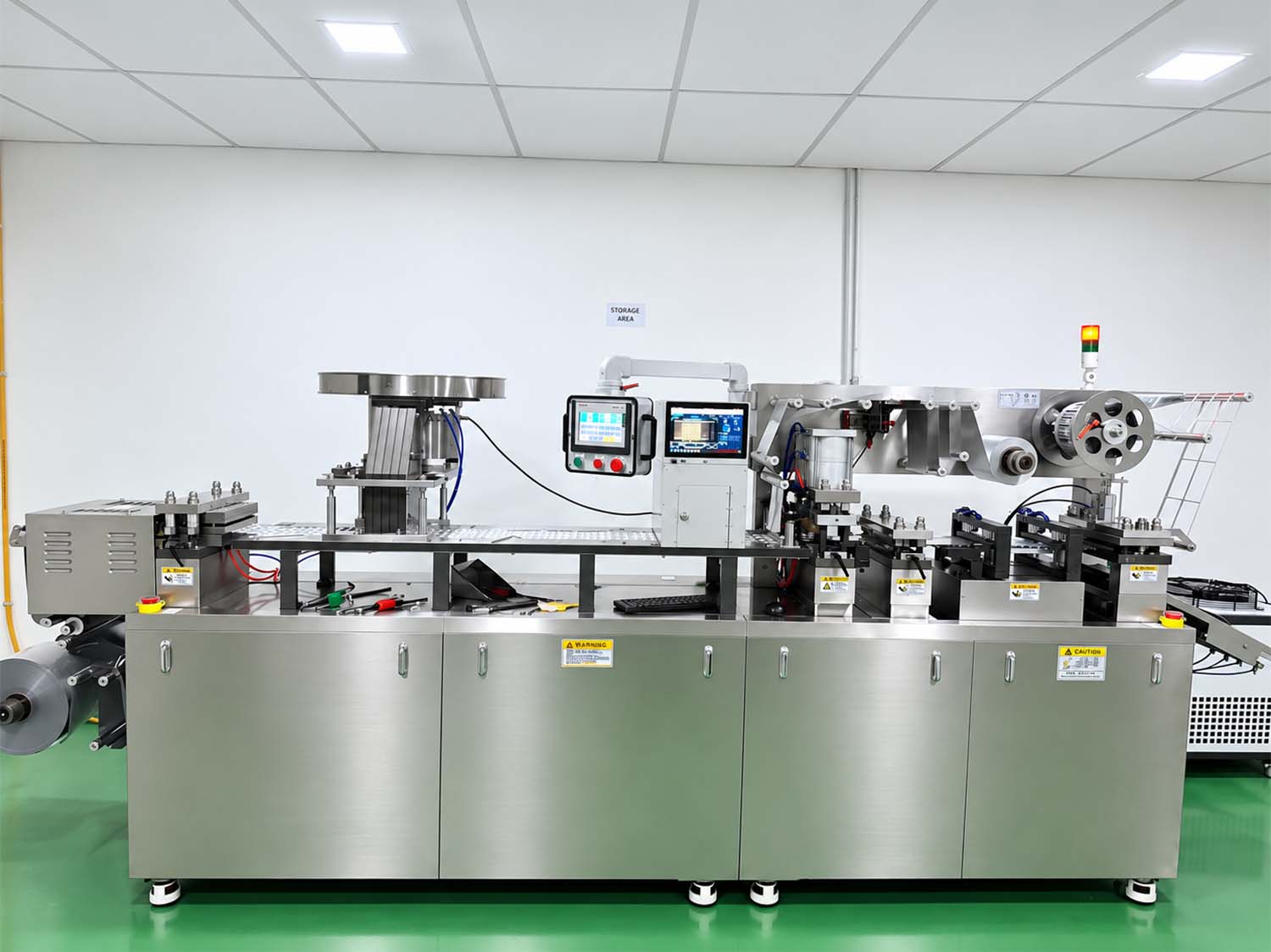

DPP-80 Compact Flat-Plate Blister Packaging Machine

80 × 57 mm plate, single-phase power, 1.8 m footprint

You’ve got a product going into blister and you need to know whether the pocket works before you commit to a production machine. The DPP-80 runs the same four-station format logic as our industrial models — forming, sealing, embossing, cutting — on an 80 × 57 mm plate, from a single-phase socket.

1. Output: 1,980 plates an hour, 10 to 33 punches a minute

2. Plate size: 80 × 57 mm, customizable

3. Power: single-phase, 2.4 kW. No three-phase supply needed

4. Materials: PVC, PTP, cold-formed Alu-Alu and dialysis paper

Is this the right machine for you?

✓ Yes, if…

✕ Buy something else if…

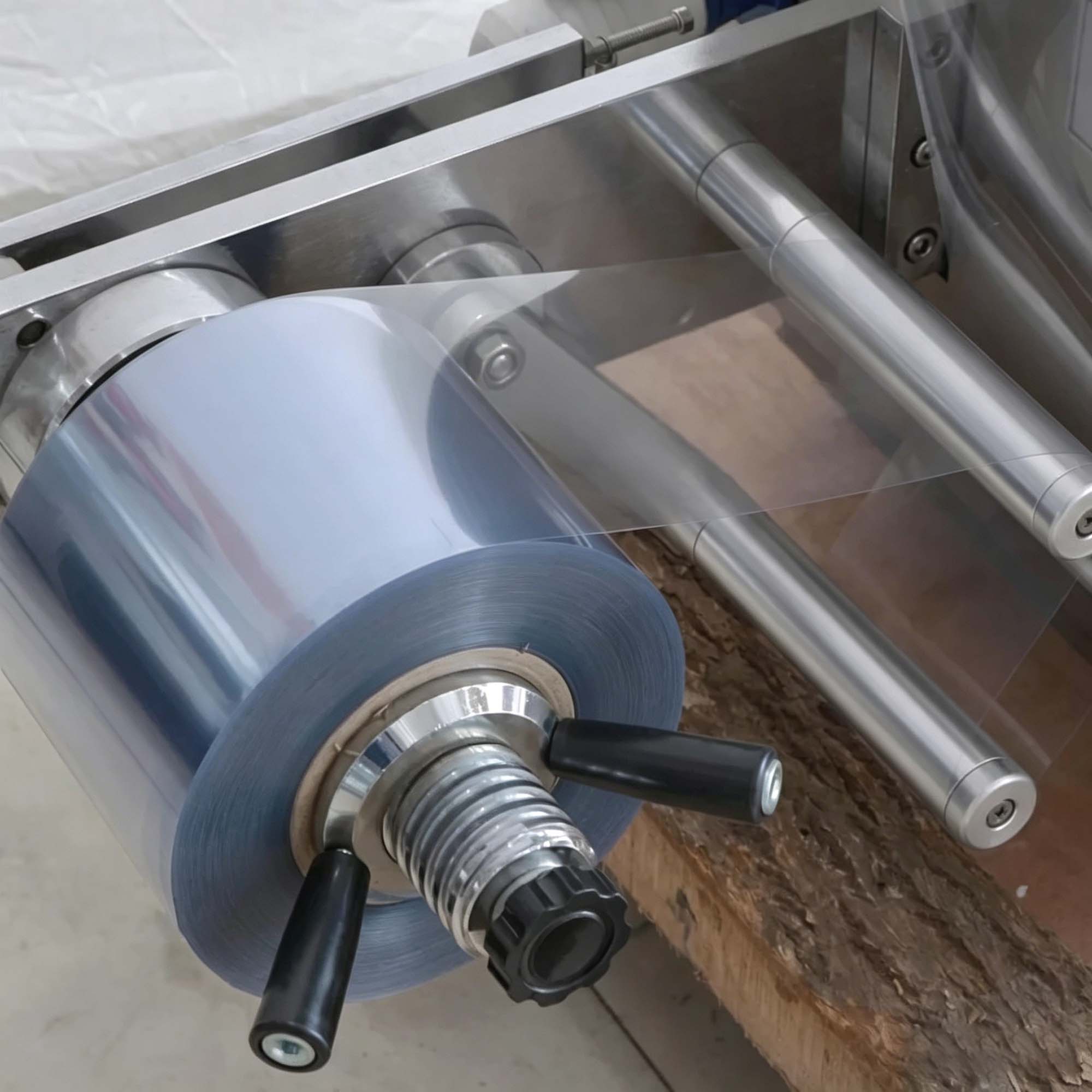

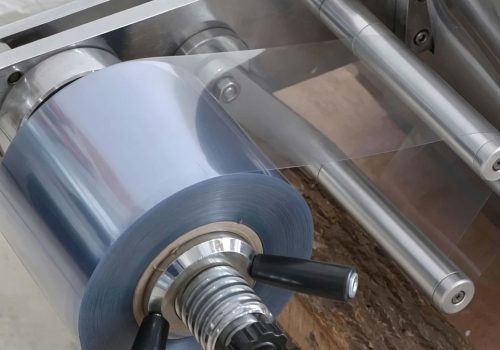

Advanced High-Power Transmission

Equipped with a chain-driven main shaft. It avoids the backlash and noise of a gear drive, so the machine runs smoother and quieter.

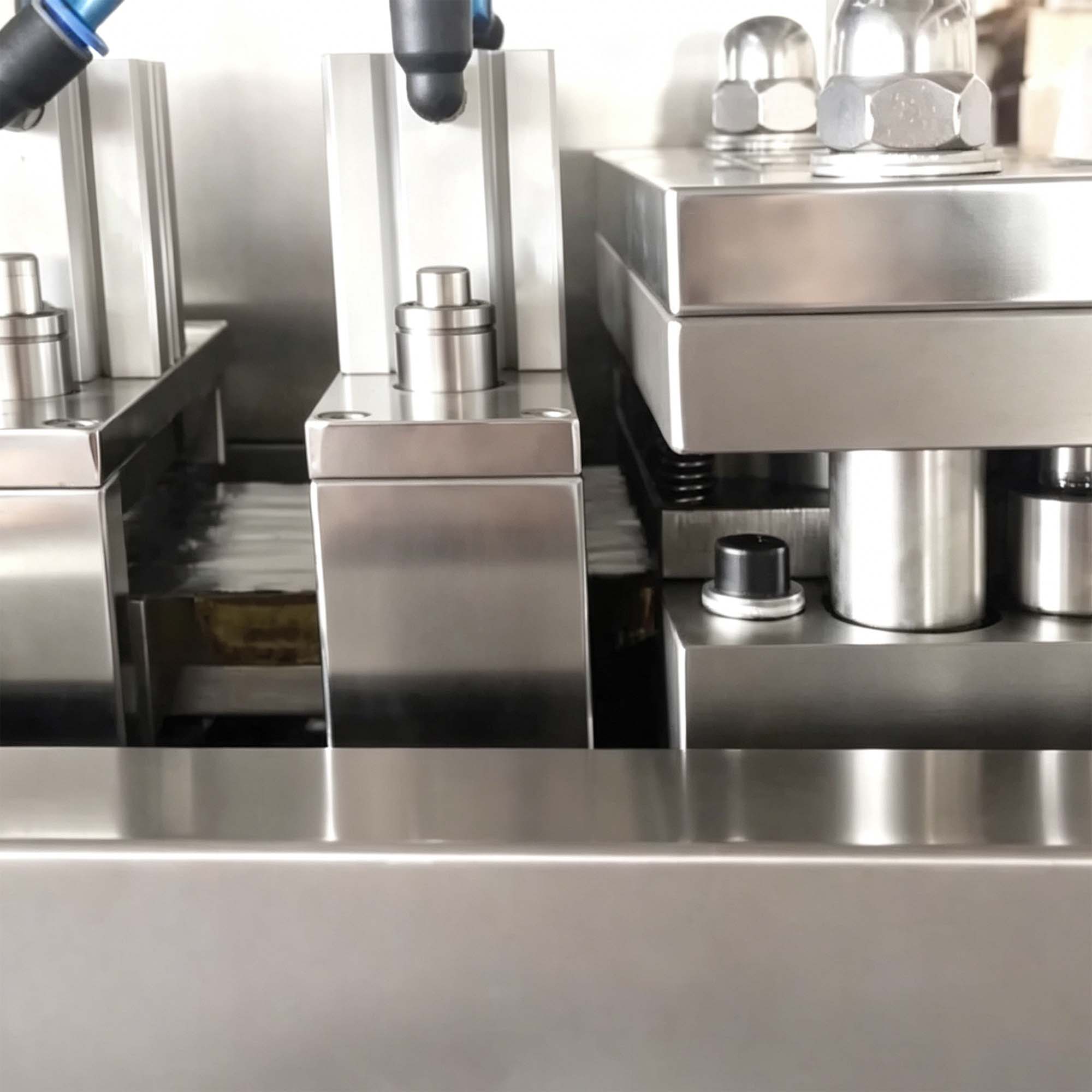

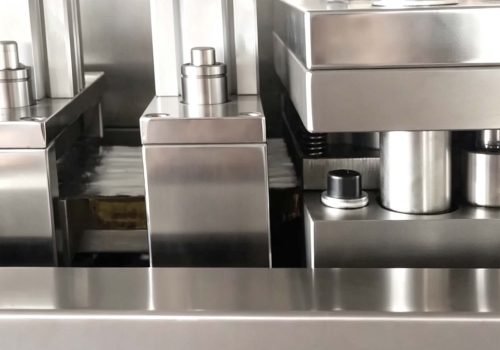

Intelligent Control & Detection

The DPP-80 can be fitted with missing-tablet detection and automatic rejection as options. A plate with a missing tablet is caught before it leaves the machine.

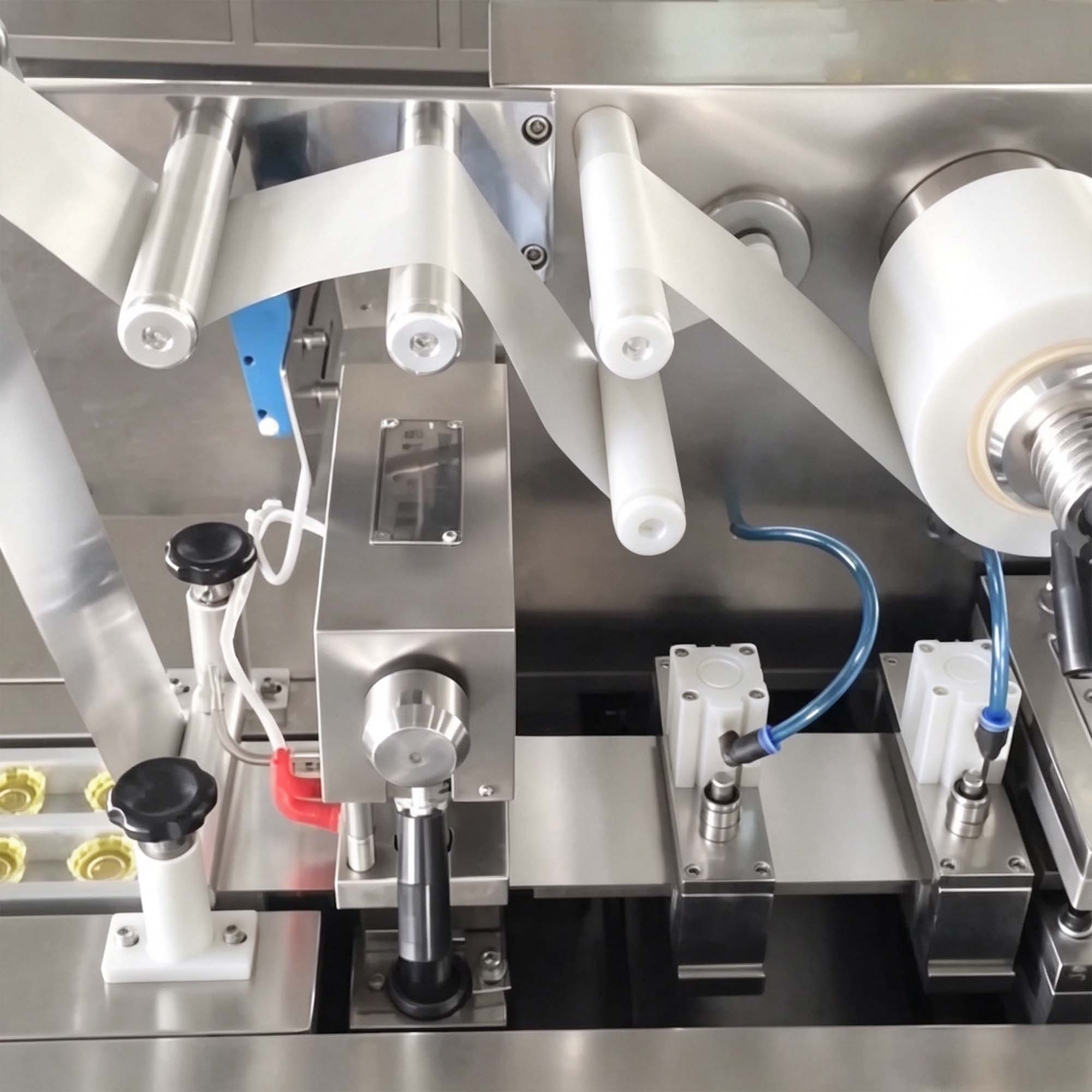

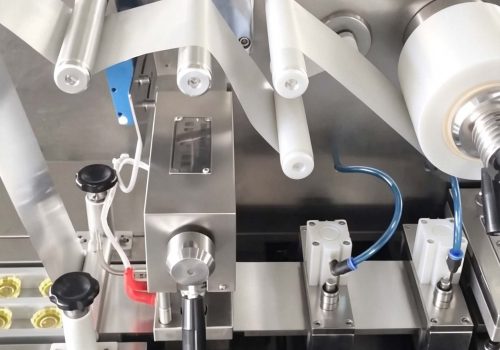

Exceptional Synchronous Stability

Utilizes a photoelectrical control system for automatic material feeding (PVC/PTP/ALU) and waste side trimming. This holds registration even across multi-station, over-length production distances.

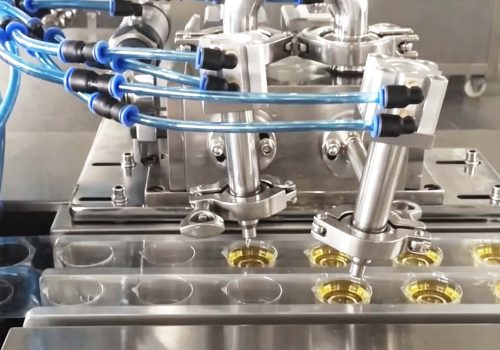

Modular Tooling on a Rack Mandrel

All four stations sit on a rack mandrel with a graduated scale. You turn the handle and read the scale to set each one, which keeps a format change short.

Technical specification

Feature

Specification

Model

DPP-80 Compact Flat-Plate Blister Packaging Machine

Punch Frequency

10–33 times/min

Production Capacity

1,980 plates/hour

Standard Plate Size

80 × 57 mm (customizable)

Max Forming Depth

15 mm standard / 25 mm custom

Standard Stroke Range

30–80 mm

Power Supply

2.4 kW, single-phase, 60 Hz. Built to your U.S. supply; we confirm the voltage with your quote

Compressed Air

≥0.3 m³/min

Air Pressure

0.4–0.6 MPa

Mold Cooling

Tap or recycled water

Noise

< 75 dB(A)

Weight

Net 425 kg / Gross 475 kg

Overall Dimension

1,840 × 590 × 1,100 mm (L×W×H)



Model comparison

Model

Type

Punch freq.

Output

Forming area

Power

DPP-80

Flat plate

10–33 times/min

1,980 plates/hour

80 mm

2.4 kW

DPP-120H

Flat plate

10–35 times/min

2,400–4,200 plates/hour

120 mm

4.5 kW

DPP-150E

Flat plate

10–40 times/min

3,600–7,200 plates/hour

150 mm

6.5 kW

DPP-180H

Flat plate

10–50 times/min

4,800–9,600 plates/hour

180 mm

8.5 kW

DPP-260H1

Flat plate

10–50 times/min

6,000–12,000 plates/hour

 260 mm

9.5 kW

DPP-260H2

Rotary seal

60–130 times/min

Up to 28,800 plates/hour

260 mm

15 kW

DPH-260H

Rotary

80–150 times/min, 200 max

6,000–18,000 plates/hour

260 mm

24 kW

DPH-380H

Rotary

40–180 times/min, 200 max

Up to 45,000 plates/hour

380 mm

28 kW

Flat plate and rotary are two different machines, not two speeds of one. Flat plate stretches the film against a mold with positive air pressure and a mechanical punch. Rotary forms and seals on a drum with line contact. The difference shows up in material waste, changeover time and what the machine costs you per plate — the table above shows where each one fits.

What changing over involves

A format set is four stations, not one part.

What changed

What you adjust

Roughly

Same format, new batch

Nothing

—

Plate layout or pocket size changes

All four molds — forming, sealing, embossing, cutting

15–30 minutes

Alu-PVC → Alu-Alu

Molds, and the feeder — if you specified the Alu-PVC universal feeder, it cannot be converted

Not a changeover

Tablets → paste or liquid

Molds and a different feeder entirely

Not a changeover

All four stations sit on a rack mandrel with a ruler. You turn the handle and read the scale rather than aligning by eye — which is what keeps a format change to minutes rather than a morning.

What to check before you buy

01

The tooling, not the machine

A format set covers four synchronised stations. Ask any supplier who designs the pocket layout, how long a new format takes to make, and what it costs. That's where a blister project succeeds or fails.

02

The feeder, before you order

An Alu-PVC universal feeder cannot run cold-formed Alu-Alu, and it cannot be converted afterwards. Ask which feeder you're being quoted and what it locks you out of.

03

Installation and training

Ask what's included and what costs extra. The answer varies more between suppliers than the machine price does.

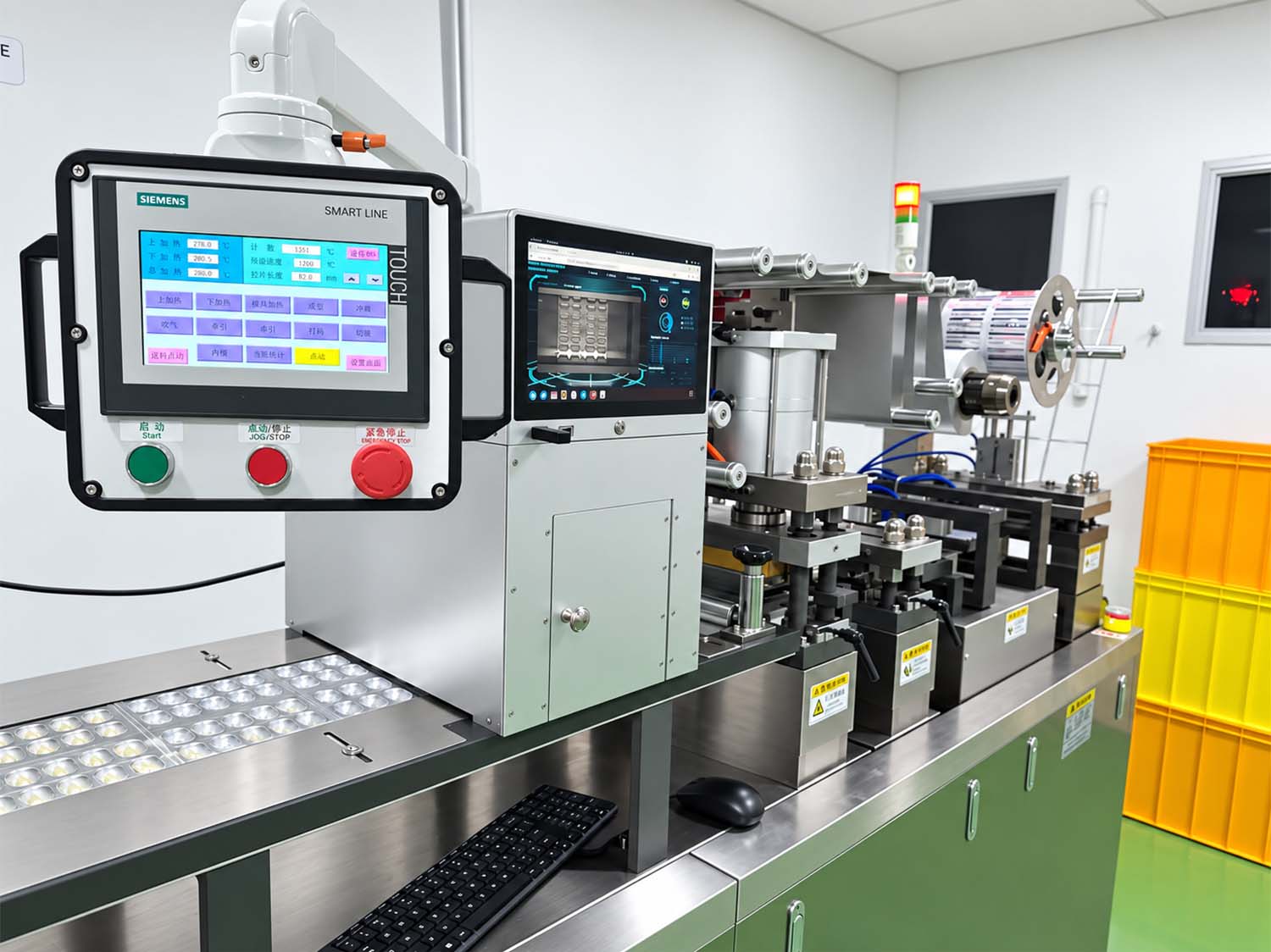

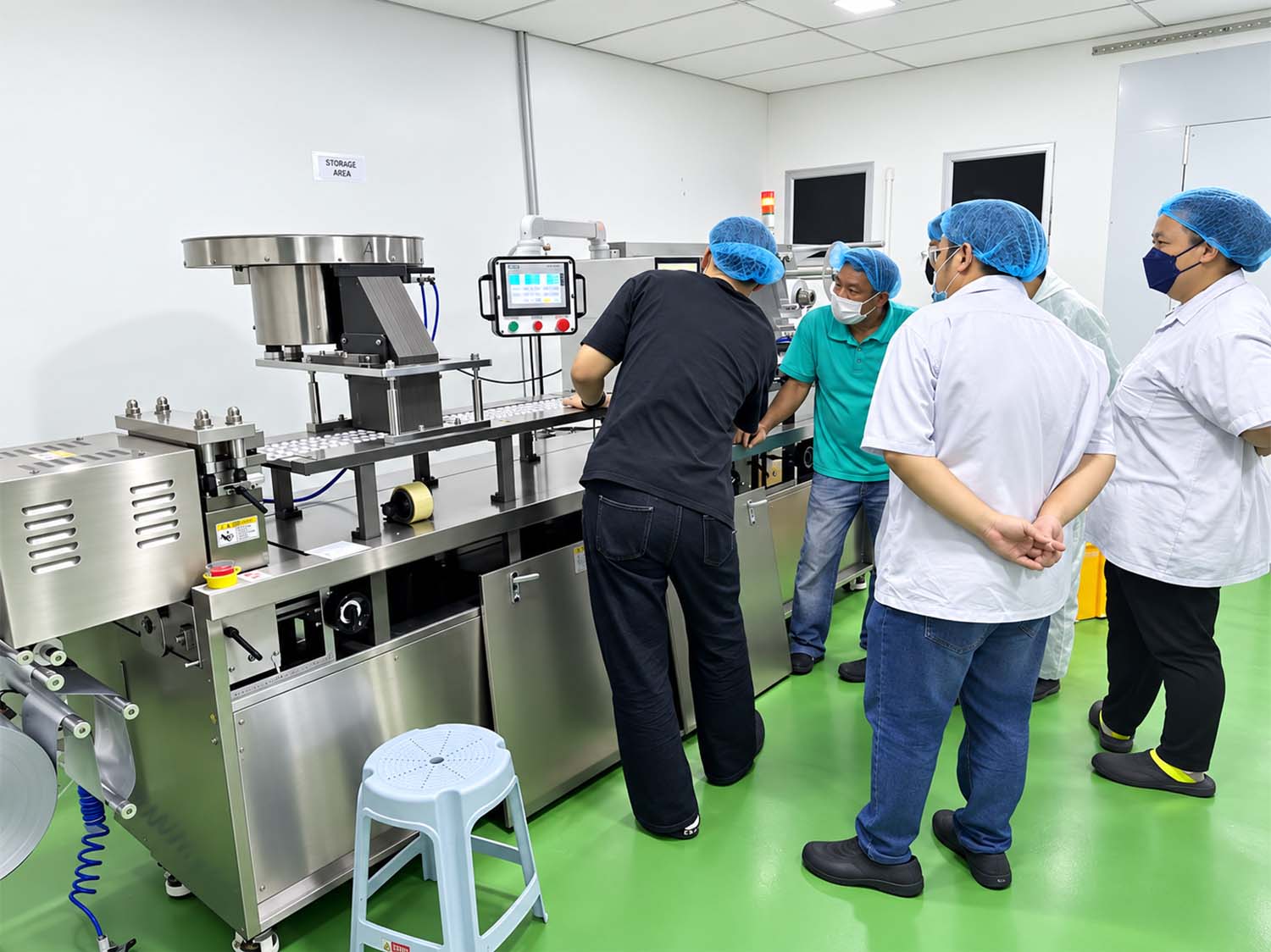

Why Choose AIPAK?

One Point of Contact

One project engineer handles your machine from proposal to commissioning, so you’re not chasing five suppliers for one answer.

We Design the Pocket Around Your Product

Send us your tablet or capsule samples and tell us your foil. We design the pocket layout and specify the feeder before we quote, because an Alu-PVC universal feeder can’t be converted to Alu-Alu later.

A U.S. Number, Answered by Us

+1 (213) 526-8644, answered by our engineers 9 AM–7 PM China time, Monday to Friday. That’s evening and overnight in the U.S., so leave a message or send a WhatsApp anytime and we’ll pick it up first thing.

Spare Parts and Lead Time, in Writing

A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.

Applications Where This Machine Is Running

An 80 mm plate is small. That’s a limitation on a production line and an advantage in three other places.

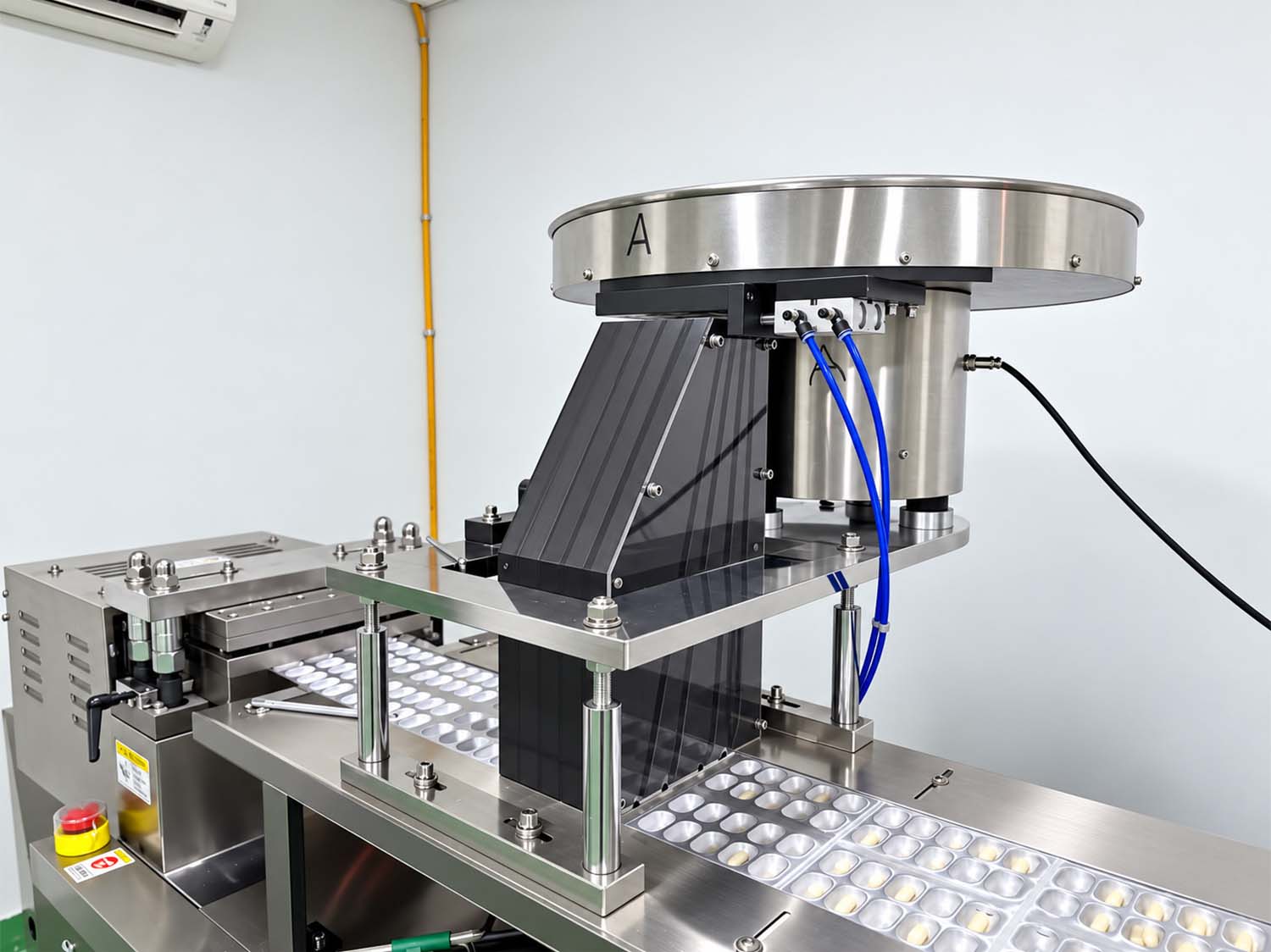

Tablets and capsules in trial formats

Your actual product and your actual foil, in a pocket designed around it — before you buy tooling for a wider machine. The four-station sequence is the same as on our production machines; what changes is the plate size.

Pilot batches and marketing samples

Vitamins, herbal softgels and functional candies in short runs. 1,980 plates an hour is enough for a sample launch and not enough for a product that sells.

Shelf-life and stability samples

Blister a small lot in Alu-PVC and in Alu-Alu side by side and see which one holds up, before you choose the foil for production.

Softgels and odd-shaped tablets

Check that a softgel or caplet sits and seals properly in the pocket before you order production tooling for a wider machine.

DPP-80 Blister Packaging Machine FAQ

What are the main differences between the DPP-80 and larger rotary blister machines?

The DPP-80 is a flat-plate machine. Compared with a rotary machine, it gives each seal more dwell time, which helps on Alu-Alu, and its tooling costs much less. That’s why it suits R&D and pilot work, where the format is still changing.

Can I customize the blister pocket size and shape on this machine?

Yes. The DPP-80 features a modular mold design where the plate size (80 × 57 mm) and stroke range (30–80 mm) can be specifically designed according to your requirements. We also offer custom deep-forming options up to 25 mm for larger or uniquely shaped items.

How does the machine handle noise and mechanical errors during high-speed runs?

The main driving shaft is chain-driven rather than gear-driven. Gear transmissions accumulate backlash as they wear, and that shows up as drift in the cutting position months into a run. A chain drive is also noticeably quieter.

Is it possible to print logos or batch codes accurately on the foil?

Yes. The embossing station stamps batch codes as standard. For pre-printed foil, add the optional photocell correction device with stepper motor traction, which keeps your printed graphics in register with the pockets.

What materials are compatible with the DPP-80?

It is a multi-material system. It supports PVC hard film (0.15–0.5mm), PTP Aluminum film (0.02–0.035mm), Cold-forming Aluminum, and Dialysis Paper (50–100g), allowing you to switch between different packaging formats quickly.

Can I move this format to a bigger machine later?

The format logic transfers — same four stations, same sequence. The tooling does not: an 80 mm plate set won’t fit a 120 or 150 mm machine. Plan on new tooling when you scale, and tell us at the development stage so we design the pocket with that in mind.

Does it run on US power?

Yes. It runs on single-phase power, built to your U.S. supply at 60 Hz, and we confirm the voltage with your quote. This is the only machine in our blister range that doesn’t need three-phase — which is usually what decides whether it can go in a development room rather than a production hall.

How do spare parts work?

A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.

Customers Also Interested In...

Send Us Your Product and Your Foil

You’re proving a format, not scaling one. So the useful thing isn’t a quotation — it’s knowing whether your tablet forms cleanly in the pocket you have in mind.

Send us your product samples, or a drawing, and tell us what foil you plan to run. We’ll design the pocket layout and run it before you order. If the item needs more depth than a standard build gives you, we’d rather tell you now.

  • Direct from our factory

  • Lead time confirmed in your quote

  • Installation and training available

  • Spare parts listed in your quote
