Doypack Machine

Stand-Up Pouches Formed from Roll Film, for Supplement Powders and Granules

Buy film instead of printed pouches — the machine forms, fills and seals the pouch in one line.

From Roll Film
Zipper Versions
35–120 Pouches/Min

Why Choose Our Doypack Machines?

The Pouch Is Made on the Machine

The Pouch Is Made on the Machine

Printed film comes off a roll and is folded, punched and sealed into a stand-up pouch in line. No pouch magazine to refill, and no finished pouches to buy in.

Zipper Sealed In as the Pouch Forms

Zipper Sealed In as the Pouch Forms

On the zipper versions, the zipper comes off its own reel with its own tension control, so it seals flat rather than puckering.

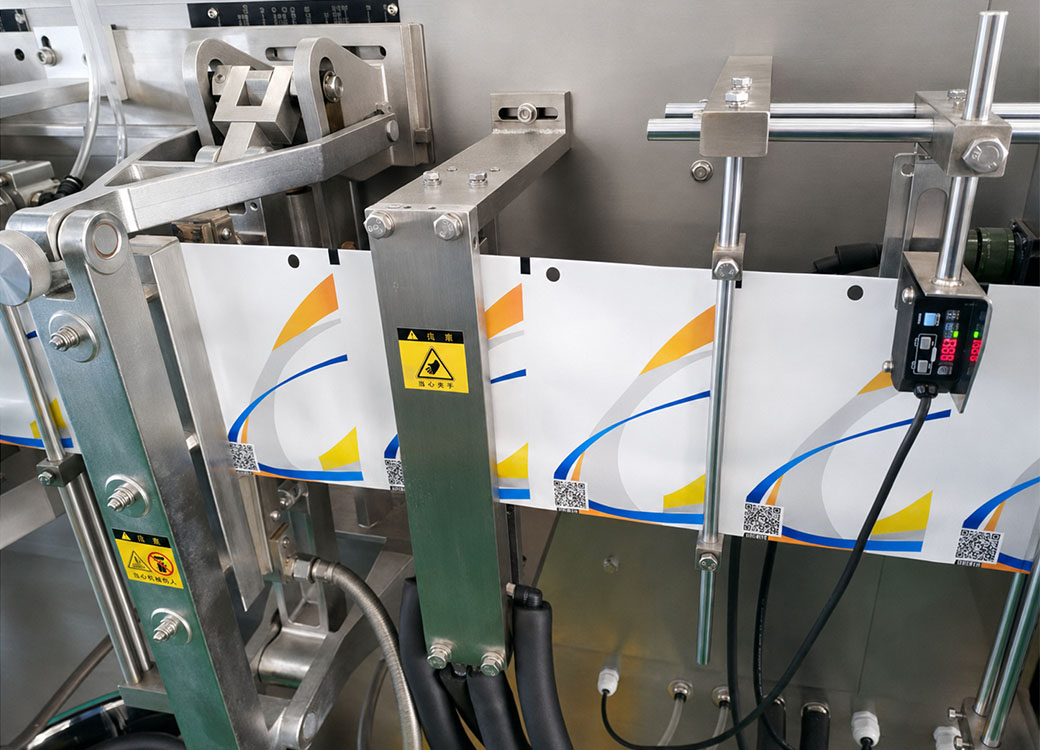

Printed Film Stays in Register

Printed Film Stays in Register

A photocell reads the mark on your printed film and corrects the servo feed, so the artwork lands in the same place on every pouch.

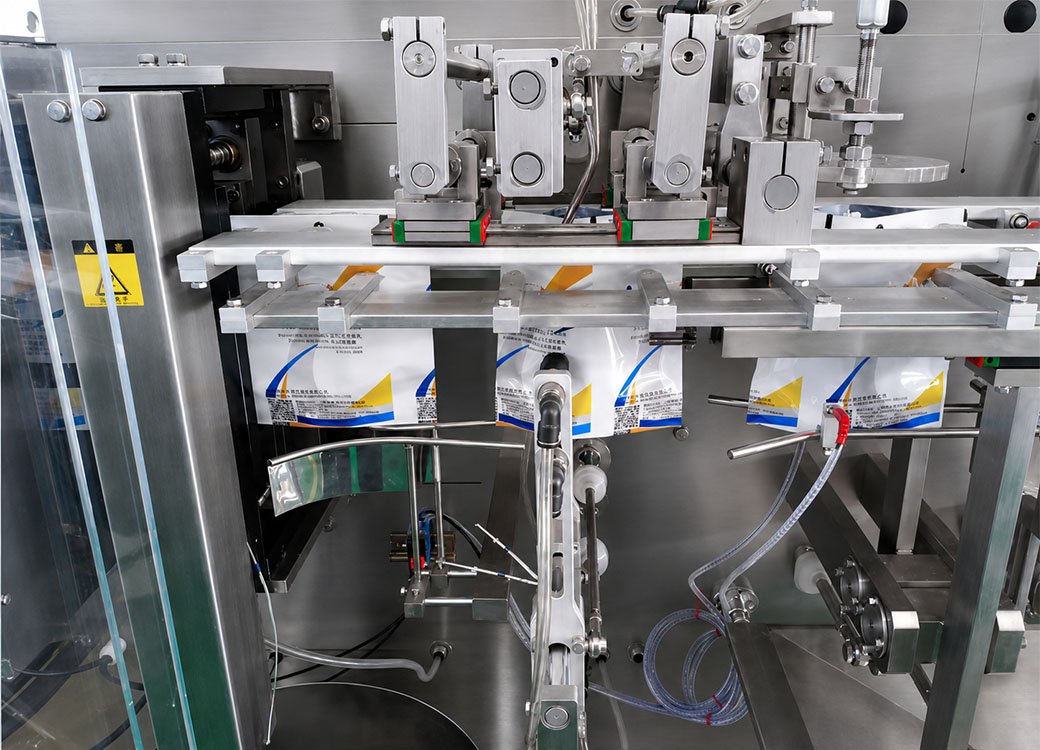

Sealed Hot, Then Set Cold

Sealed Hot, Then Set Cold

The top seal is made by heated jaws and then pressed by cooling jaws before the pouch leaves the machine — which is what keeps it flat.

Roll Film or Premade Pouches?

Roll film or premade pouches

A doypack machine buys film. Printed film comes off a roll and the machine forms the stand-up pouch, fills it and seals it. Film costs less than a finished pouch, so the cost per bag comes down — but the machine is longer, and a new pouch size means new forming parts.

A premade pouch machine buys pouches. Your supplier prints and makes them; the machine opens, fills and seals them. Shorter machine, a size change is an adjustment, but every pouch costs more.

One pouch size running for weeks? Film pays off. Several sizes, or modest volumes? Buy printed pouches.



Doypack machine

Premade pouch machine

You buy

Film on a roll

Printed pouches

Machine length

4.5–10.1 m

2.25–5.1 m

Cost per bag

Lower

Higher

Size change

New forming parts

An adjustment

Best for

One size, long runs

Several sizes

Industry Applications

Protein in zipper stand-up pouches
Collagen and creatine
Greens and superfood blends
Electrolyte and probiotic granules

Model comparison

Model

Output

Pouch width

Speed

Power

Line length

APK-130S

Single

60–130 mm

35–45/min

6 kW

4.5 m

APK-180S

Single

90–180 mm

40–60/min

9 kW

6.0 m

APK-240S

Single

100–240 mm

40–60/min

11 kW

8.7 m

APK-280DS

Twin

90–140 mm per lane

90–120/min

15.5 kW

10.1 m



Zipper versions of the 180S, 240S and 280DS form the zipper into the pouch as it's made. Line length is the number to check first.

Send us your film spec and a powder sample

Pouch width decides the machine. How long you run one size decides whether film pays off at all. Send us both and we’ll tell you — including when the answer is a premade pouch machine.

Documentation & Selection Support

Verify our quality standards and simplify your procurement process with our official documentation

Product Portfolio

Product Portfolio

Download specs for our complete range of Doypack models.
Quality Assurance

Quality Assurance

CE Declaration of Conformity for our doypack machines.
Technical Standards

Technical Standards

Detailed insights into our patented contour-shaping and sealing technology.

Post us your film spec and a powder sample. We’ll form, fill and seal pouches and send them back.

Doypack Machine FAQ

How do I choose the right model?

Start with pouch width. Up to 130 mm, the APK-130S. Up to 180 mm, the APK-180S. Up to 240 mm, the APK-240S. If your pouch is 140 mm or under and you need more than 60 a minute, the twin-output APK-280DS.

What do the letters in the model names mean?

S means stand-up pouch. Z means the zipper version. D means twin output — two pouches per cycle.

Can they make shaped pouches?

Yes — all four models can punch a contour shape and a hanging hole as the pouch is formed.

How long does a full format changeover take?

A new pouch size means changing the forming parts as well as the settings, so it takes longer than on a premade pouch machine. We time a changeover on your pouch sizes during the test run, so you see it before you order.

How does the zipper module work?

The zipper comes off its own reel with its own tension control, and it’s sealed into the pouch as the pouch forms. Holding the tension is what keeps the zipper flat instead of puckering.

How accurate is the fill?

It depends on the dosing unit and your product. Our servo augers and volumetric cups hold ±0.3–1.2%. Send us a sample and we’ll tell you what to expect on yours.

Can I integrate these machines with my existing upstream/downstream equipment?

Often, yes. Tell us the make and model of the weigher, auger or conveyor you already have, and we’ll confirm the mounting and the signal connection before you order.

Should I buy a doypack machine or a premade pouch machine?

A doypack machine if one pouch size runs for long stretches and pouch cost is a real line item — film costs less than a finished pouch. A premade pouch machine if you run several sizes. See premade pouch machines →

How fast can I get spare parts?

A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.

Do your machines meet U.S. electrical certification requirements?

Yes. Our machines are certified and use certified electrical components. Because the exact scope depends on the model and electrical configuration you select, our factory confirms it in writing before production.

Send us your film spec and a powder sample.

Pouch width decides the machine. How long you run one size decides whether film pays off. Send us both, and we’ll form, fill and seal pouches and send them back.
