Sachet Machine

Three-Side and Four-Side Seal Sachets for Supplement Powders and Granules

Six models, 60 to 400 ml, 60 to 160 sachets a minute. The machine makes the sachet and fills it in one pass — and because the sealing station works independently of the filling station, powder doesn’t end up trapped in the seal. That’s what a leaking sachet usually is.

60 to 160 sachets/min
60 to 400 ml
Powders and granules

Why Choose Our Sachet Machines?

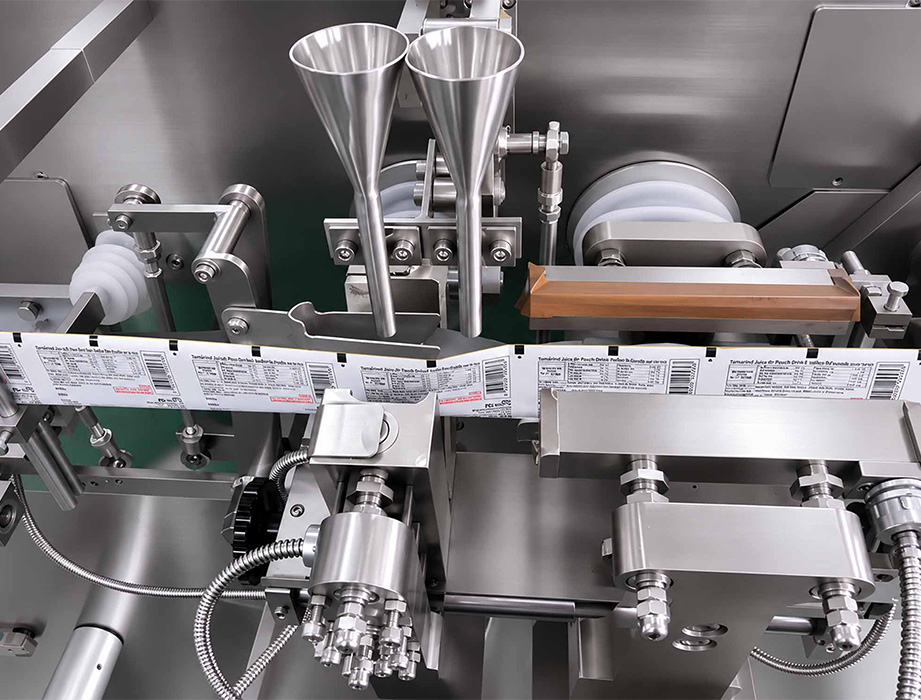

The Sealing Station Works on Its Own

The Sealing Station Works on Its Own

Bag forming and sealing happen independently of filling. Powder that’s still settling can’t get caught in the seal, because the seal isn’t made at the moment the powder drops. A sachet that leaks in the carton usually leaks because something was trapped in the edge.

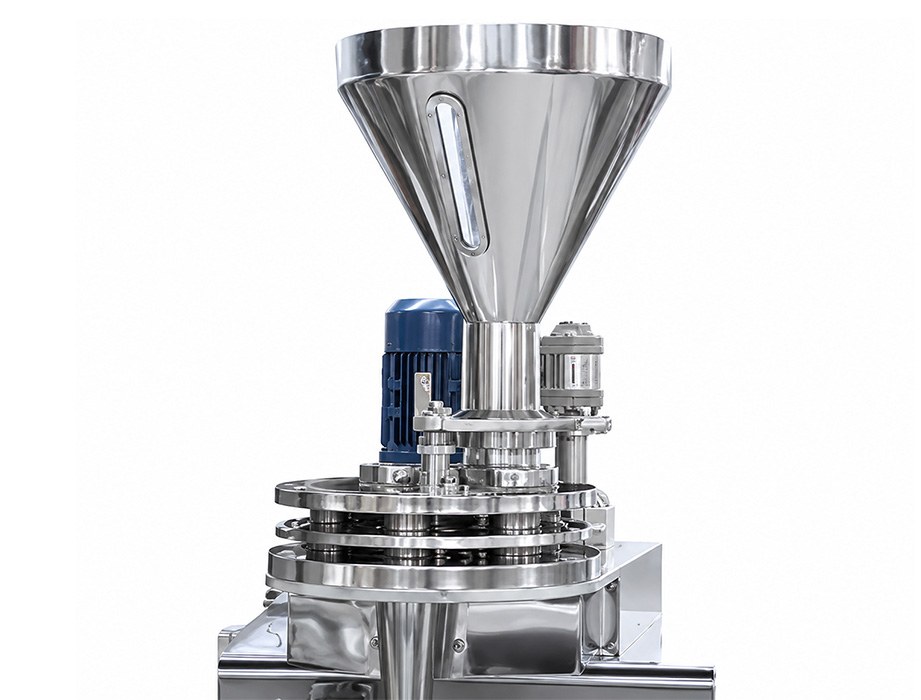

Auger for Powder, Cup for Granules

Auger for Powder, Cup for Granules

Two dosing units cover what we build these machines for. A servo auger meters powders by turns; a volumetric cup meters free-flowing granules by volume. Which one suits your product is what a sample run tells us.

Lightweight Walking Beam

Lightweight Walking Beam

The carriage that moves the film through the stations is built light on purpose. Less mass means less inertia at 160 sachets a minute, which shows up as steadier sealing and less wear on the drive.

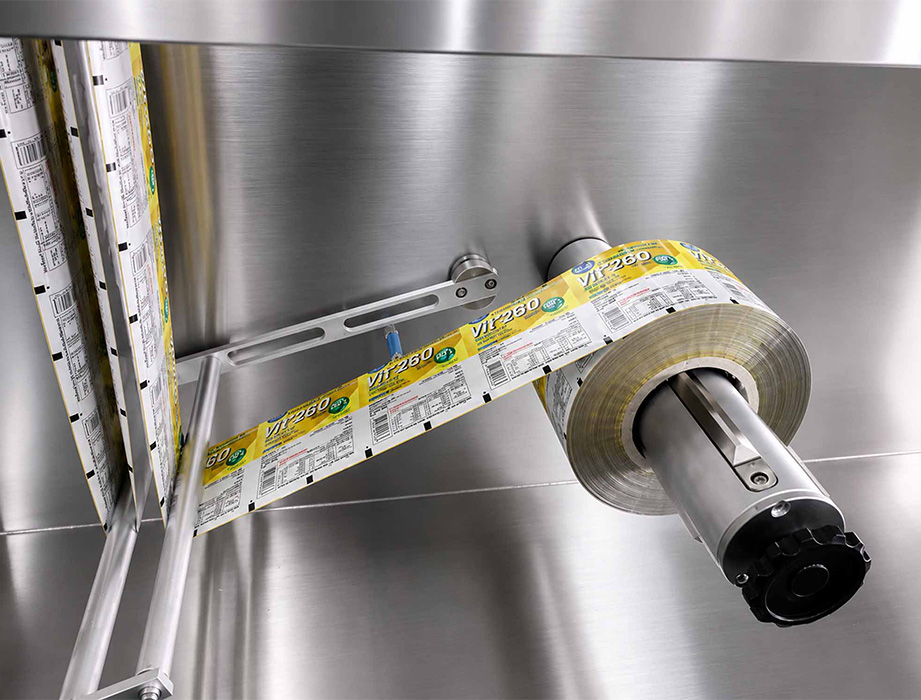

Format Change Without New Tooling

Format Change Without New Tooling

Sachet width and length adjust within each model’s range rather than needing a new set of parts. Tell us the sachet sizes you run and we’ll confirm they fit one machine.

Speed or Capacity — You Don't Get Both

Our six models split into two groups, and the trade-off between them is the whole decision.

The single-output machines fill more per sachet. The APK-180 takes 400 ml and runs 60 to 80 sachets a minute.

The twin-output machines run twice as fast and hold less per sachet. The APK-210D runs 120 to 160 a minute — but tops out at 150 ml.

That isn’t a limitation we’re apologizing for; it’s arithmetic. Two sachets forming side by side means each one gets half the width of the film.

So start with your fill volume, not your target speed.

Your fill

Model

Speed

Up to 60 ml

APK-110

60–80/min

Up to 100 ml, twin-link sachets

APK-180T

120–160/min

Up to 150 ml

APK-210D

120–160/min

Up to 160 ml

APK-130

60–80/min

Up to 180 ml

APK-240

100–160/min

Up to 400 ml

APK-180

60–80/min

One more question: do you want two sachets joined together?

The APK-180T makes twin-link sachets — two pouches connected by a perforation, so a customer tears one off and keeps the other. Common for twice-daily dosing. It’s the only model in the range that does it.

What These Machines Are Filling

Protein and meal replacement powders
Electrolyte and drink mix powders
Probiotic and enzyme granules
Twice-daily supplement doses

Model comparison

ModelSachet widthSachet lengthFill volumeSpeedFormat
APK-11050–110 mm50–130 mm60 ml60–80/min3 or 4-side seal
APK-13060–140 mm80–180 mm160 ml60–80/min3 or 4-side seal
APK-18060–180 mm80–225 mm400 ml60–80/min3 or 4-side seal
APK-180T60–90 mm80–225 mm100 ml120–160/min3 or 4-side seal, twin-link
APK-210D60–105 mm90–225 mm150 ml120–160/min3 or 4-side seal
APK-24070–120 mm100–225 mm180 ml100–160/min3 or 4-side seal

Shared specifications

ModelsPowerAir consumptionWeightDimensions
APK-110 / 1303.5 kW100 NL/min800 kg2,850 × 940 × 1,400 mm
APK-180 / 180T / 210D / 2404.5 kW200 NL/min1,600 kg3,900 × 970 × 1,450 mm

Sachet width is the number to read first. The model numbers refer to the machine platform, not the sachet — the APK-240 makes sachets up to 120 mm wide, not 240.

Send us your powder and your fill weight.

Fill volume decides the model before speed does. Send us a sample and tell us how many sachets a minute you need, and we’ll tell you which one — including when it’s the slower machine.

Documentation & Selection Support

Verify our quality standards and simplify your procurement process with our official documentation

Product Portfolio

Sachet Packaging Catalog

Explore technical specs for the complete range of our Sachet Packaging Machine models. Access detailed technical data, footprint layouts, and configuration options for our entire series, from high-precision standard units to industrial-scale heavy-duty lines.
Quality Assurance

Compliance & Certification

Official certification ensuring our equipment meets the highest global safety standards. Verified compliance documentation including CE Declaration of Conformity, ISO 9001:2015 quality certificates, and GMP-compliant manufacturing records.
Technical Standards

Technology & Validation

Detailed insights into the core patented technology of our Sachet Packaging Machines. Deep dive into our high-speed walking beam transport systems, precision heat-sealing patents, and FDA 21 CFR Part 11 data integrity validation protocols (IQ/OQ/PQ).

We run it on the machine you’re considering and send you filled sachets back, so you see the fill weight spread and the seal on your own product before you order.

Sachet Machine FAQ

How do I choose between the six models?

Start with your fill volume, not your speed. Over 180 ml, the APK-180 is the one, at up to 400 ml. Under 180 ml, the twin-output models run twice as fast; the single-output APK-110 and APK-130 cover smaller fills at 60 to 80 a minute. Then tell us whether your product is a powder or a free-flowing granule, because that decides whether we fit an auger or a volumetric cup.

Yes. Sachets come off the outfeed in sequence and can go straight to a cartoner. Tell us your cartoner model and we’ll check the rate against the sachet machine’s.

Why don't the seals trap powder?

Because the seal isn’t made at the moment the powder drops. Forming and sealing work independently of filling, so powder that’s still settling doesn’t get caught in the edge. That’s what usually makes a sachet leak in the carton.

How does the "Walking Beam" transport system improve machine performance?

The carriage that moves the film through the stations is built light. Less mass means less inertia and vibration at speed, which gives steadier sealing and less wear on the drive.

Powder or granule — does it change the machine?

Not the machine, but the dosing unit on it. Powders are metered by a servo auger; free-flowing granules by a volumetric cup. Both mount on the same machine. If your product is somewhere in between — a fine granule that behaves like a powder — send us a sample and we’ll try both.

Does it run on US power?

Yes. We build to your U.S. supply at 60 Hz and confirm the voltage with your quote.

Send us your powder and your fill weight.

Fill volume narrows the range to two or three models before anything else does. How your powder flows decides whether we fit an auger or a cup. Send us a sample and both numbers, and we’ll run it and send you filled sachets back.

  • Direct from our factory
  • Lead time confirmed in your quote
  • Installation and training available
  • Spare parts listed in your quote
