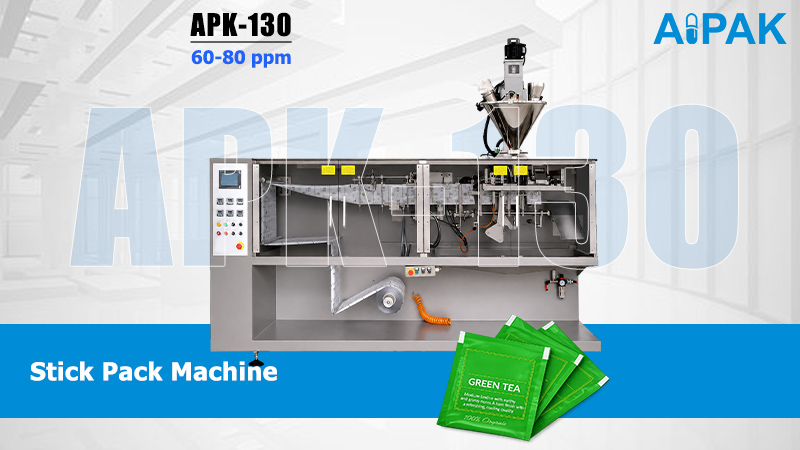

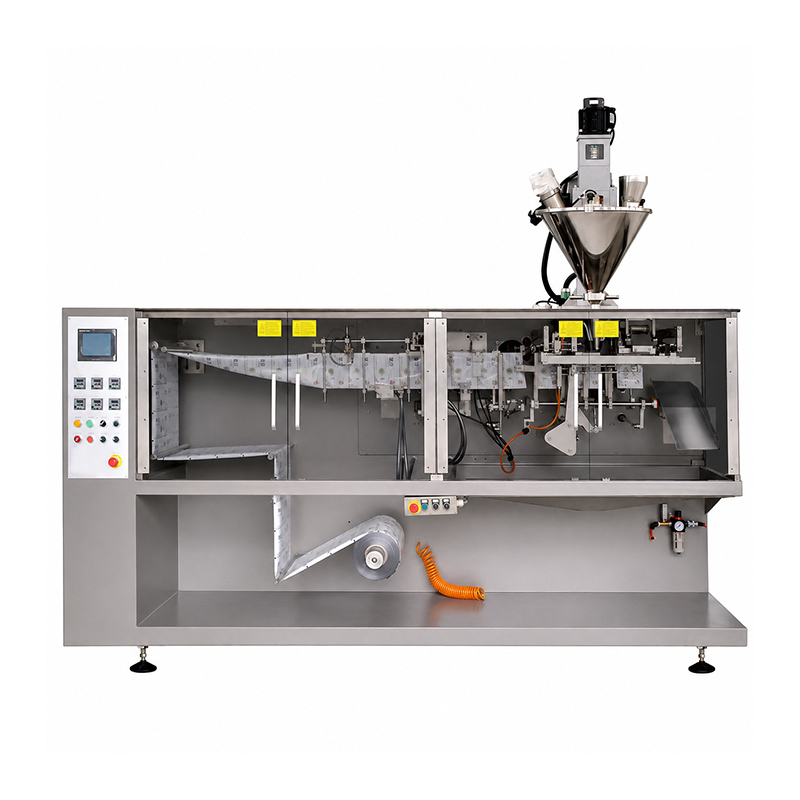

APK-130 Automatic Sachet Packaging Machine
3-side and 4-side seal sachets, up to 160 ml, 60 to 80 a minute
You’ve outgrown a 60 ml sachet. This machine runs the same speed as the APK-110 on a wider format — up to 140 mm across and 160 ml a fill, which is where most protein and meal-replacement single-serves land.
1. Sachet size: 60 to 140 mm wide, 80 to 180 mm long
2. Fill volume: up to 160 ml
3. Speed: 60 to 80 sachets a minute
4. Dosing: servo auger for powders, volumetric cup for granules
Is this the right machine for you?
✓ Yes, if…
- Your fill is between 60 and 160 ml
- Your sachet is 60 to 140 mm wide
- You need 60 to 80 sachets a minute
- You run powders or free-flowing granules
✕ Buy something else if…
- Your fill is under 60 ml → the APK-110 costs less and takes less floor
- Your fill is over 160 ml → the APK-180 takes 400 ml at the same speed
- You need more than 80 a minute → the twin-output models run 120 to 160, but at a smaller fill
- Your product is a liquid or a cream → we build these for powders and granules.
Technical specification
Parameter | APK-130 | What it means for you |
Pouch width | 60–140 mm | 30 mm wider than the APK-110 |
Pouch length | 80–180 mm | — |
Max filling capacity | 160 ml | Over that, see the APK-180 at 400 ml |
Packaging speed | 60–80 sachets/min | Same as the APK-110 and APK-180 |
Pouch types | 3-side seal, 4-side seal | Switched without new tooling |
Dosing | Servo auger or volumetric cup | Auger for powders, cup for free-flowing granules |
Power | 3.5 kW | Same platform as the APK-110 |
Frequency / voltage | 60 Hz, built to your U.S. supply | We confirm the voltage with your quote |
Air consumption | 100 NL/min | — |
Dimensions | 2,850 × 940 × 1,400 mm | Same footprint as the APK-110 |
Weight | 800 kg | — |
Model comparison
Model | Width | Fill | Speed | Format |
APK-110 | 50–110 mm | 60 ml | 60–80/min | 3 or 4-side |
APK-130 | 60–140 mm | 160 ml | 60–80/min | 3 or 4-side |
APK-180 | 60–180 mm | 400 ml | 60–80/min | 3 or 4-side |
APK-180T | 60–90 mm | 100 ml | 120–160/min | 3 or 4-side, twin-link |
APK-210D | 60–105 mm | 150 ml | 120–160/min | 3 or 4-side |
APK-240 | 70–120 mm | 180 ml | 100–160/min | 3 or 4-side |
Start with your fill volume. The twin-output models run twice as fast and hold roughly a quarter as much — two pouches share the width of the film.

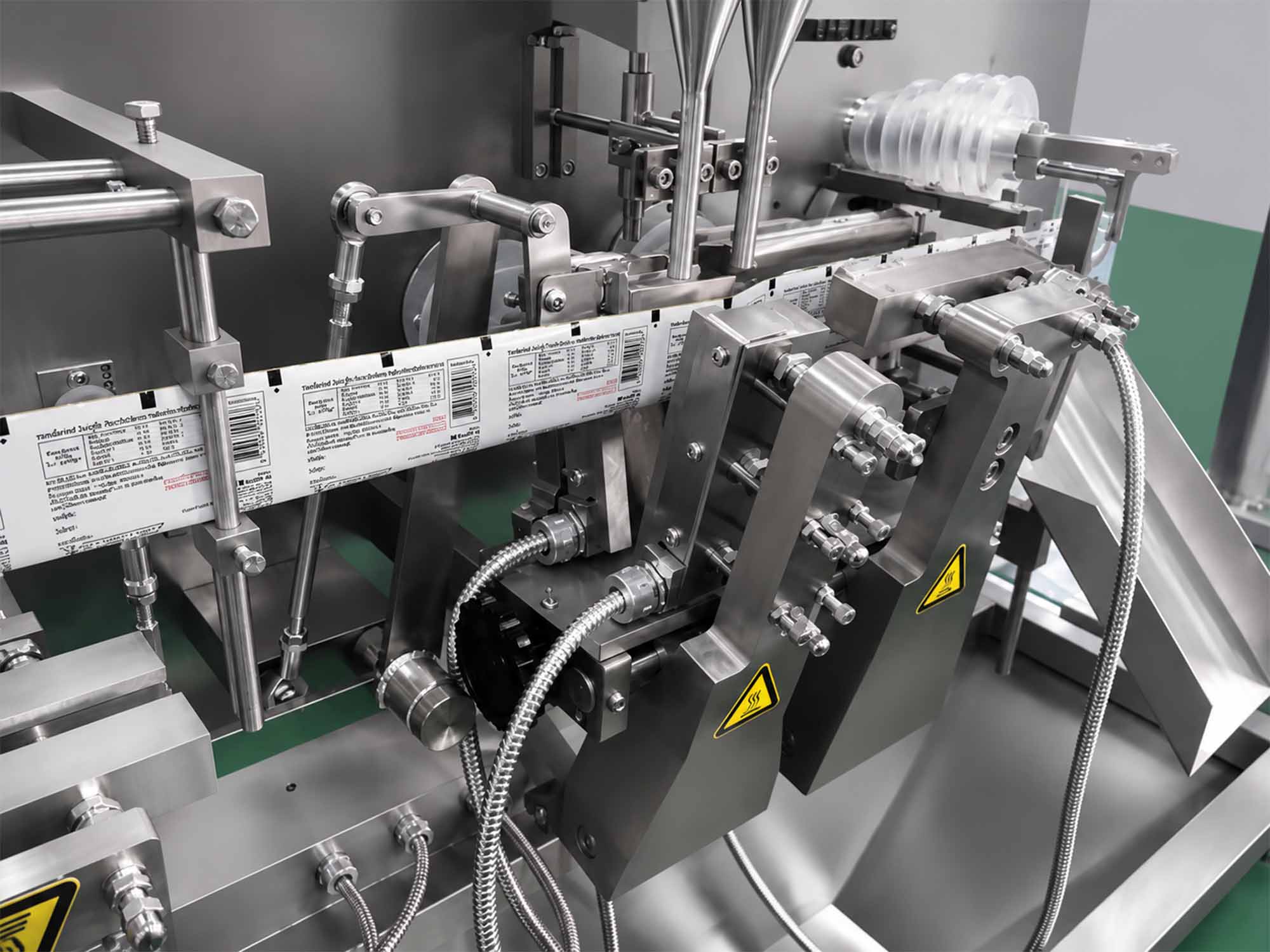

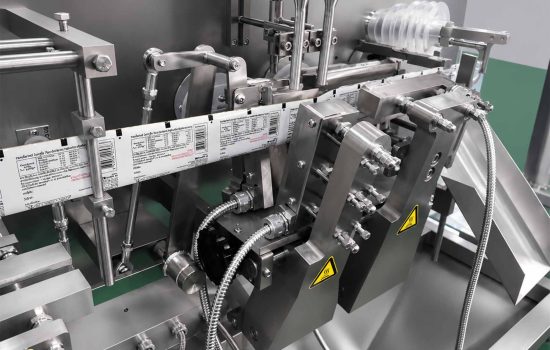

3-side or 4-side seal
The machine runs 3-side and 4-side seal sachets. Switching between them is a change to the sealing configuration, not a new machine.

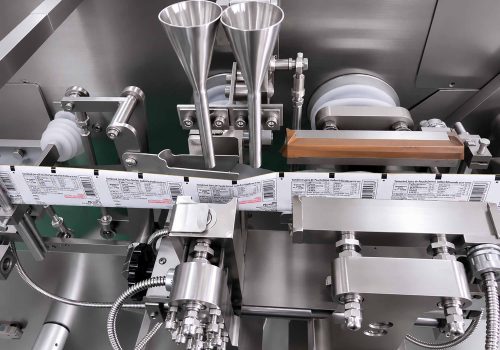

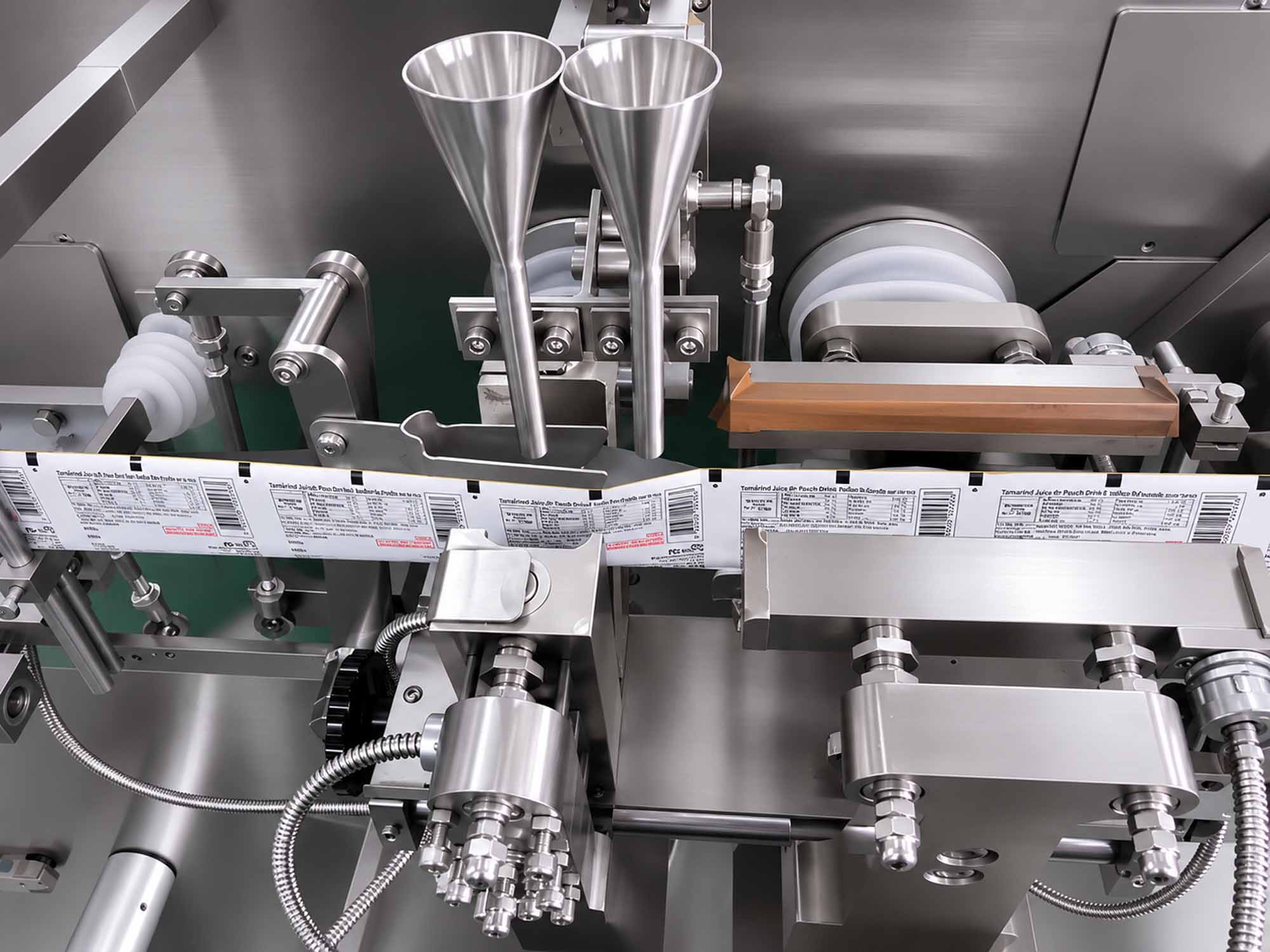

Wider sachets, bigger fills
Up to 140 mm wide and 160 ml a fill, 30 mm wider than the APK-110. That’s where most protein and meal-replacement single-serves land.

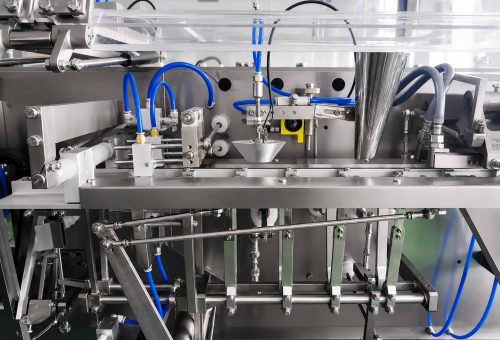

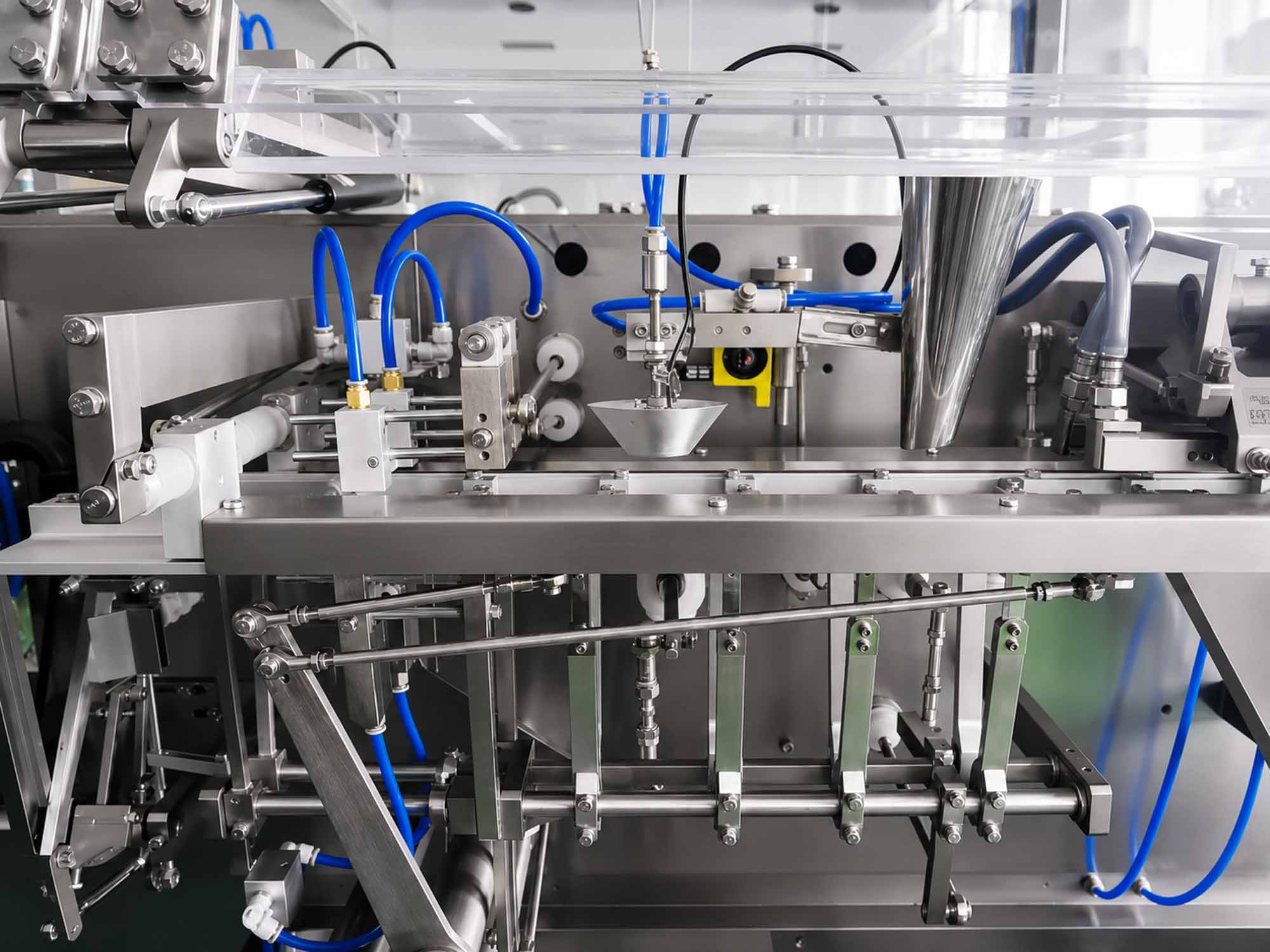

Lightweight walking beam
The carriage that moves the film is built light, so it starts and stops quickly with less wear on the drive. That’s what holds 60 to 80 sachets a minute.

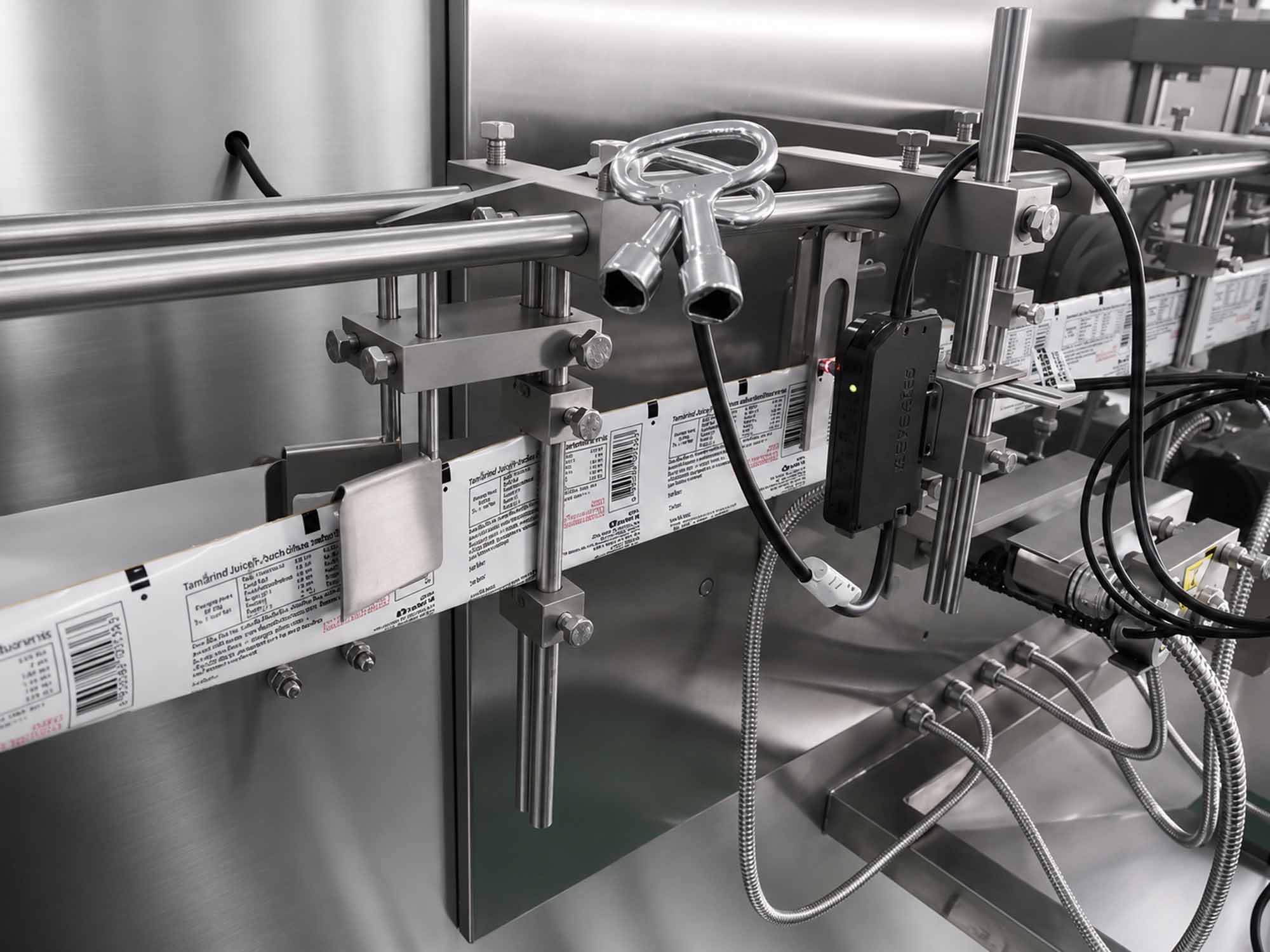

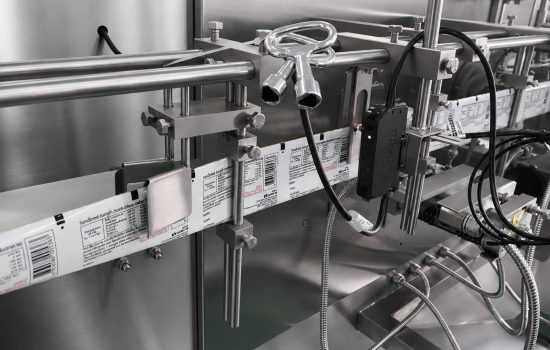

Independent sealing station
The sealing station works independently of the filling station, so powder that’s still settling can’t get caught in the edge. That’s what a leaking sachet usually is.
Industry Applications
Protein single-serves
A 25 to 40 g scoop of whey in a flat sachet. This is the fill range most protein portions land in.
Meal replacement portions
Larger fills than a drink mix, still inside 160 ml.
Greens and superfood blends
Fibrous powders that bridge easily. The agitator matters more than the speed here — send us a sample.
Probiotic and enzyme granules
Metered by volumetric cup rather than auger. Tell us the particle size.
What changing over involves
What changed | What you adjust | Roughly |
Same sachet, new film roll | Load the roll | A few minutes |
Sachet length changes | Setting on the machine | 15–30 minutes |
Sachet width changes within range | Forming set adjustment | 15–30 minutes |
3-side ↔ 4-side seal | Sealing configuration | 15–30 minutes |
Powder → granule | Change the dosing unit — auger to cup | 15–30 minutes |
What to check before you buy
Which dosing unit you're quoted
An auger meters powder by turns; a cup meters granules by volume. Ask which one is in your quote, and ask what it costs to add the other later if your product range changes.
Fill weight on your powder, not theirs
Every supplier's accuracy figure was measured on something. Ask them to run your sample and send you filled sachets with the weight spread.
Installation and training
Ask what's included and what costs extra.
Why Choose AIPAK?
One Point of Contact
One project engineer handles your machine from proposal to commissioning, so you’re not chasing five suppliers for one answer.
We Run Your Powder Before You Order
Send us a sample and we fill it on the machine, then send you the sachets back with the fill weight spread. You decide whether to talk quotes after that.
A U.S. Number, Answered by Us
+1 (213) 526-8644, answered by our engineers 9 AM–7 PM China time, Monday to Friday. That’s evening and overnight in the U.S., so leave a message or send a WhatsApp anytime and we’ll pick it up first thing.
Spare Parts and Lead Time, in Writing
A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.
APK-130 Automatic Sachet Packaging Machine FAQ
On many sachet machines, powder still settling in the pouch gets caught in the seal as the jaws close, and that’s where a leak starts. Here the sealing station works on its own, separate from filling, so the edge is clear when it seals. Send us your powder and we’ll send back sealed sachets you can check.
The carriage that moves the film is built light, so it starts and stops quickly with less wear on the drive. That’s what lets the machine hold 60 to 80 sachets a minute.
Yes. Powders go on a servo auger; free-flowing granules on a volumetric cup. Both mount on the same frame. Tell us your product and we’ll quote the right dosing unit.
Yes. The APK-130 runs 3-side and 4-side seal sachets. Switching between them is a change to the sealing configuration, not a new set of tooling. We confirm how long it takes on your sachet.
Fill volume and sachet width. Same speed, same platform, same dosing options. The 130 goes to 160 ml and 140 mm wide; the 110 stops at 60 ml and 110 mm. If your fill fits in 60 ml, the 110 costs less.
At 160 ml. Above that the APK-180 takes 400 ml at the same speed. It’s a bigger machine, 3.9 m long against 2.85 m here, so check your floor as well as your fill.
Yes. We build to your U.S. supply at 60 Hz and confirm the voltage with your quote.
A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.
Customers Also Interested In...
Send Us Your Powder
Two numbers narrow this down before anything else: how much goes in each sachet, and how many sachets a minute you need. This machine takes up to 160 ml at 60 to 80 a minute. If your fill or your speed sits outside that, we’ll point you at the model that fits rather than sell you this one.
Send us a sample of your powder and both numbers. We’ll run it and send you filled sachets back, so you see the fill weight spread on your own product.
- Reply within one business day
- Your powder run on the machine before you order
- Your formula stays with us
