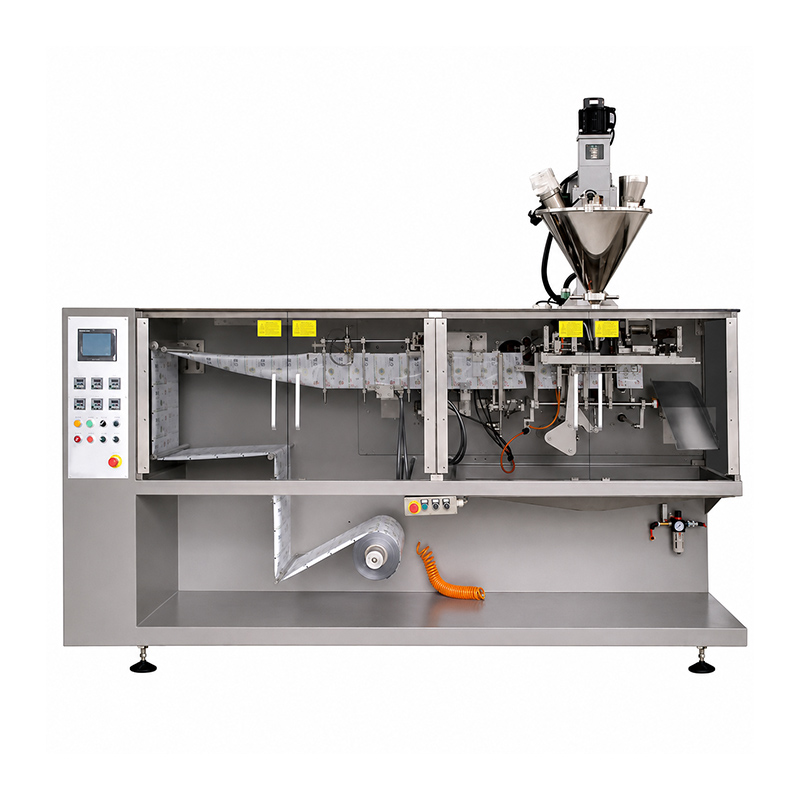

APK-110 Automatic Sachet Packaging Machine
3-side and 4-side seal sachets, 60 ml, 60 to 80 a minute
The smallest machine in our sachet range. It forms the sachet, fills it and seals it in one pass — and because the sealing station works independently of the filling station, powder that’s still settling can’t get trapped in the edge. That’s what a leaking sachet usually is.
1.Sachet size — 50 to 110 mm wide, 50 to 130 mm long
2.Fill volume — up to 60 ml
3.Speed — 60 to 80 sachets a minute
4.Dosing — servo auger for powders, volumetric cup for granules
Is this the right machine for you?
✓ Yes, if…
- Your fill is 60 ml or less
- Your product is a powder or a free-flowing granule
- You need 60 to 80 sachets a minute
- Your sachet is 50 to 110 mm wide
✕ Buy something else if…
- Your fill is over 60 ml → the APK-130 takes 160 ml at the same speed
- You need more than 80 a minute → the twin-output models run 120 to 160, but at a smaller fill
- You want two sachets joined together → only the APK-180T does that
- Your product is a liquid or a cream → we build these machines for powders and granules.

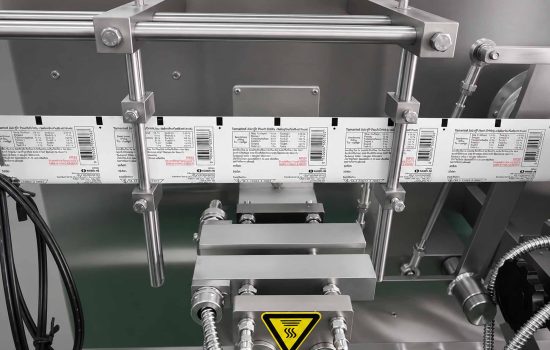

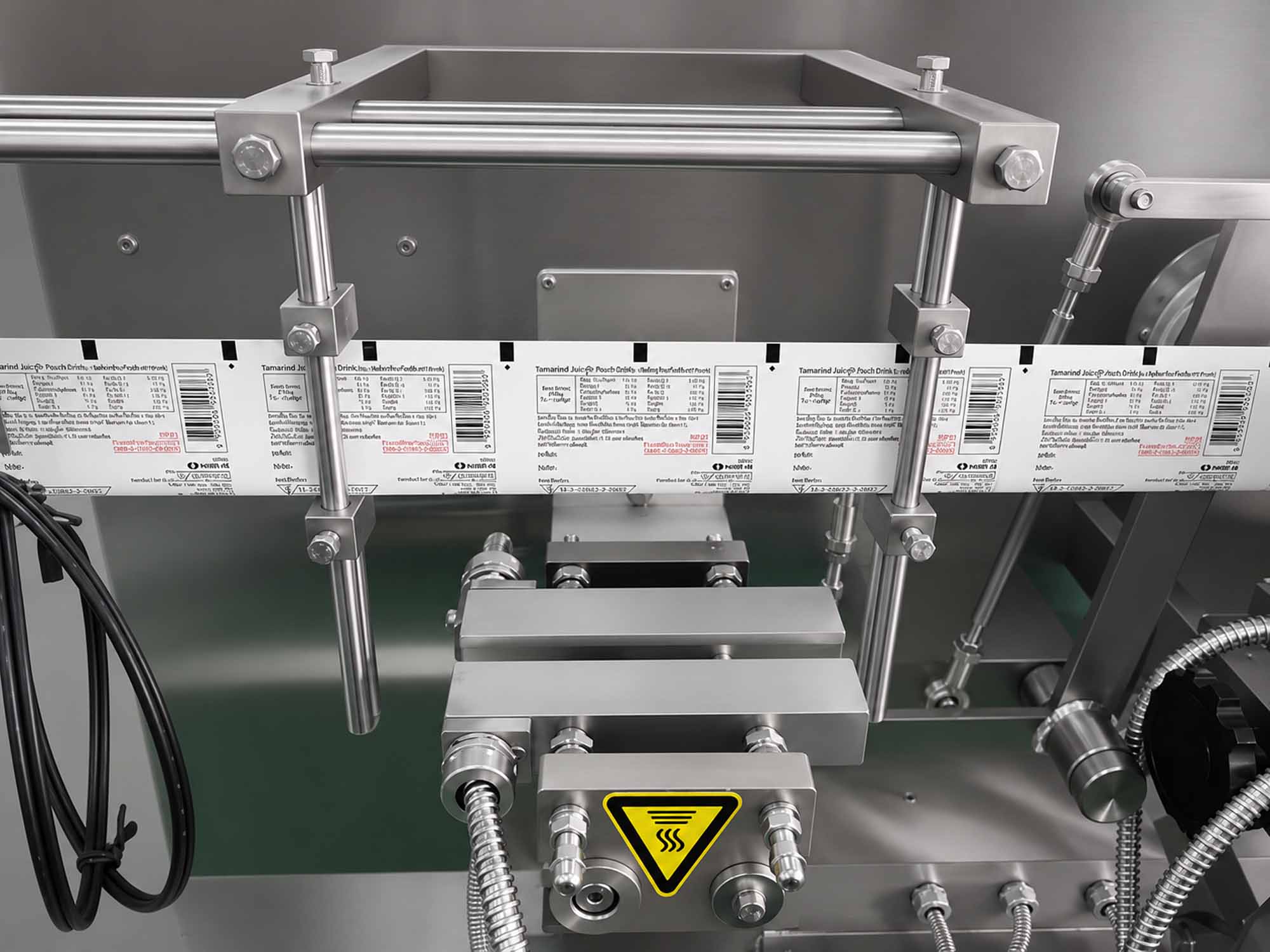

Independent Sealing Engineering
Features a specialized device ensuring sealing edges remain free from material clamping, which enhances seal integrity while minimizing leakage risks.

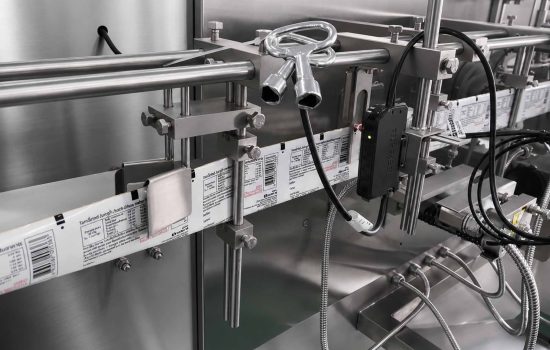

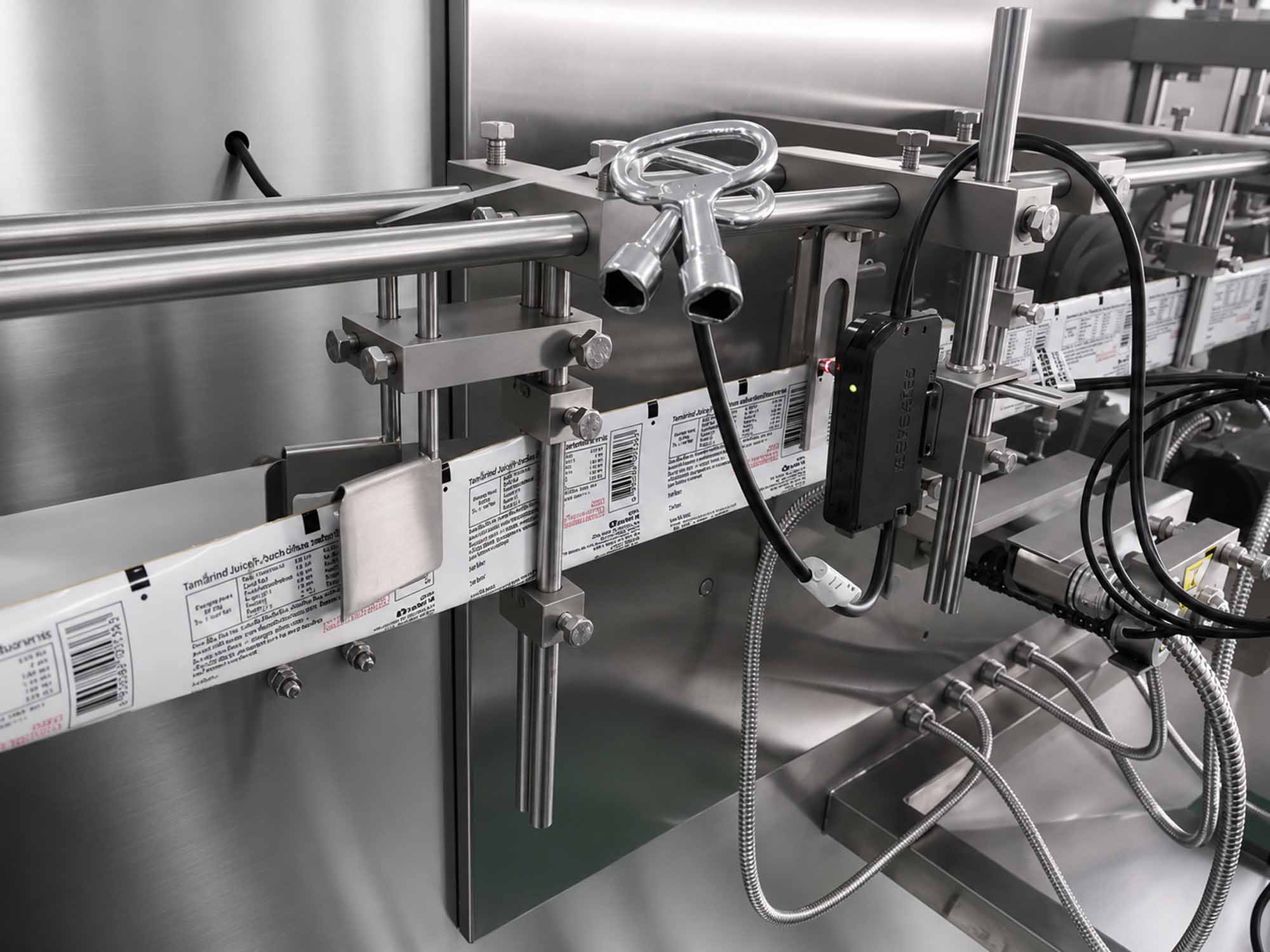

High-Speed Walking Beam Carriage
Utilizes a lightweight walking beam system that enables operational speeds of up to 80 ppm, while reducing mechanical wear and extending the equipment’s lifecycle.

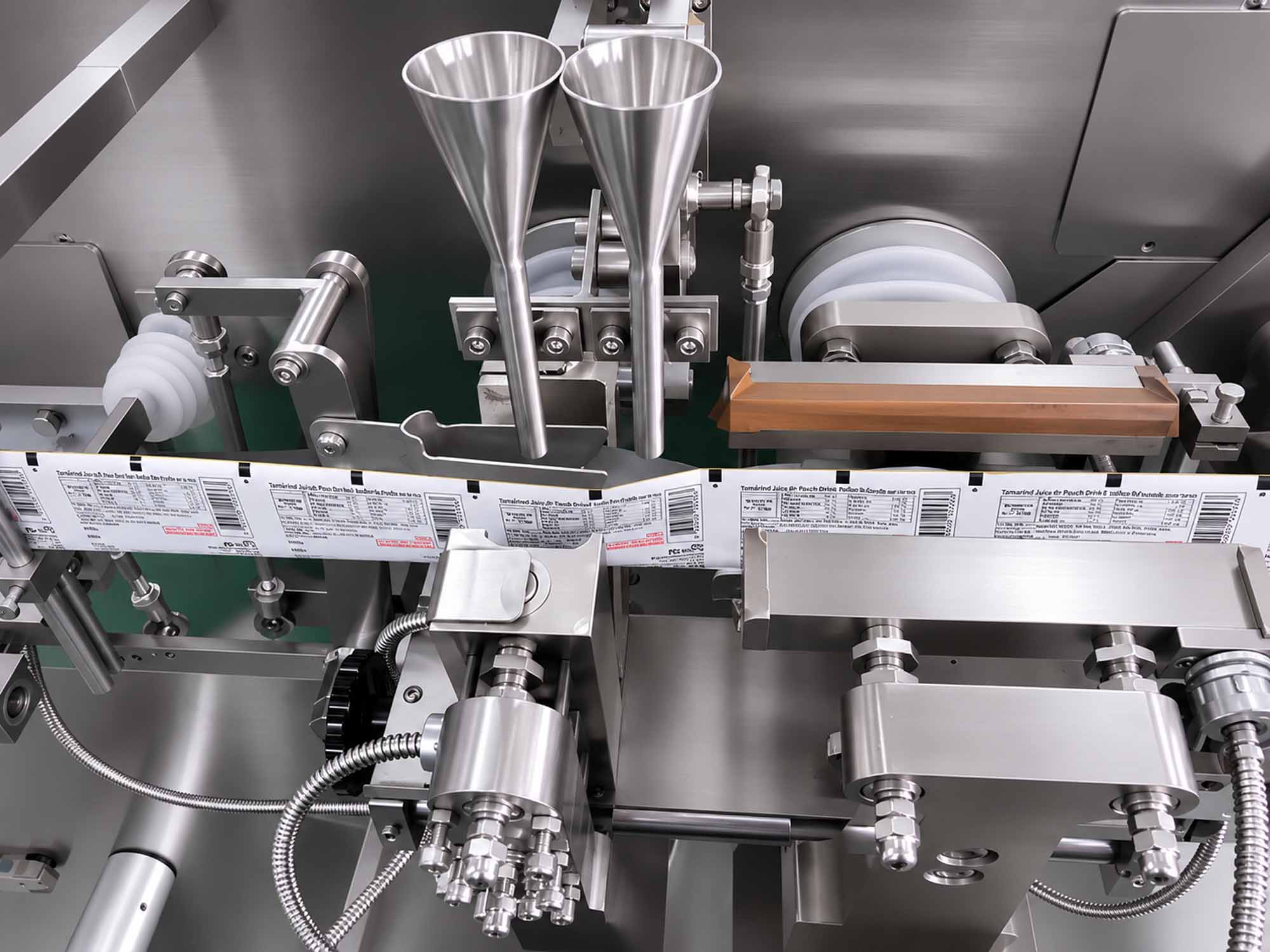

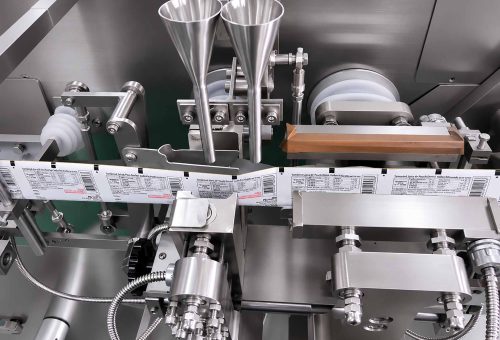

Format Flexibility
Designed for transition between 3-side and 4-side seal configurations, meeting diverse packaging specifications.
Technical specification
Parameter | APK-110 | What it means for you |
Pouch width | 50–110 mm | The smallest in the range |
Pouch length | 50–130 mm | — |
Max filling capacity | 60 ml | Over that, see the APK-130 |
Packaging speed | 60–80 sachets/min | Single output |
Pouch types | 3-side seal, 4-side seal | Switched without new tooling |
Power | 3.5 kW | — |
Air consumption | 100 NL/min | Half what the larger platform draws |
Dimensions | 2,850 × 940 × 1,400 mm | — |
Model comparison
Model | Width | Fill | Speed | Format |
APK-110 | 50–110 mm | 60 ml | 60–80/min | 3 or 4-side |
APK-130 | 60–140 mm | 160 ml | 60–80/min | 3 or 4-side |
APK-180 | 60–180 mm | 400 ml | 60–80/min | 3 or 4-side |
APK-180T | 60–90 mm | 100 ml | 120–160/min | 3 or 4-side, twin-link |
APK-210D | 60–105 mm | 150 ml | 120–160/min | 3 or 4-side |
APK-240 | 70–120 mm | 180 ml | 100–160/min | 3 or 4-side |
Start with your fill volume. The twin-output models run twice as fast and hold roughly a quarter as much — two pouches share the width of the film.
Industry Applications
What changing over involves
What changed | What you adjust | Roughly |
Same sachet, new film roll | Load the roll | 15-30 Minutes |
Sachet length changes | Setting on the machine | 15-30 Minutes |
Sachet width changes within range | Forming set adjustment | 15-30 Minutes |
3-side ↔ 4-side seal | Sealing configuration | 15-30 Minutes |
Powder → granule | Change the dosing unit — auger to cup | 15-30 Minutes |
What to check before you buy
Which dosing unit you're quoted
An auger meters powder by turns; a cup meters granules by volume. Ask which one is in your quote, and ask what it costs to add the other later if your product range changes.
Fill weight on your powder, not theirs
Every supplier's accuracy figure was measured on something. Ask them to run your sample and send you filled sachets with the weight spread.
Installation and training
Ask what's included and what costs extra.
Why Choose AIPAK？
Factory-Direct
You buy from the plant that builds the machine, not through a trading company. Custom sachet sizes, dosing units and layout changes are a conversation with the engineers who make it — not a request passed down a chain and quoted back three weeks later.
We Run Your Powder Before You Order
Send us a sample and we fill it on the machine you’re considering, then send you the sachets back with the fill weight spread we held. Every supplier quotes an accuracy figure; that figure was measured on somebody’s powder, and it probably wasn’t yours. A sticky greens blend and a free-flowing electrolyte behave differently in the same auger, and the only way to know which yours is, is to run it.
A U.S. Number, Answered by Us
+1 (213) 526-8644 — phone or WhatsApp, 9am to 11pm Eastern, Monday to Friday. That’s 6am to 8pm Pacific, so it covers a full working day anywhere in the continental U.S. It reaches our engineers, not a call centre. Outside those hours and at weekends, message us and we’ll come back at the start of the next window. We’d rather tell you that than claim 24/7 and not answer.
Spare Parts and Lead Time
Wear parts — sealing jaws, film guides, auger tips — are listed and priced in your quote before you sign, so you know what year one costs. Lead time is 1-3months from order, confirmed in writing.
APK-110 Automatic Sachet Packaging Machine FAQ
Traditional systems often cause material to get caught within the seal zone, leading to weak points or leaks. Our independent sealing device is engineered to keep the sealing edges free from material clamping. This results in a high-integrity seal that is leak-proof and delivers a flat, aesthetic finish essential for pharmaceutical-grade packaging.
The “Lightweight Walking Beam” carriage is designed for high-speed production. By reducing the overall mass of the moving parts, we decrease mechanical inertia and drag. This allows the machine to achieve consistent speeds of up to 80 ppm without sacrificing accuracy, while simultaneously reducing vibration, mechanical stress, and long-term wear on the drive components.
The system is designed for high modularity. We offer versatile dosing integration, allowing the machine to be equipped with specific tools based on your product: Servo Motor Auger Fillers for precise powder materials, and Volumetric Cups for uniform granules.
Yes, the APK-110 is built for flexibility. The machine supports quick-change tooling to transition between 3-side seal and 4-side seal formats. This allows manufacturers to handle various product lines on a single packaging workstation.
Not the machine, the dosing unit on it. Powders go on a servo auger; free-flowing granules on a volumetric cup. Both mount on the same frame. If your product sits between the two, send us a sample and we’ll try both.
Yes, it can be customizable.
Customers Also Interested In...
APK-130
The step up. Same speed, roughly two and a half times the fill.
APK-210D
Twin output. Double the speed if your fill fits.

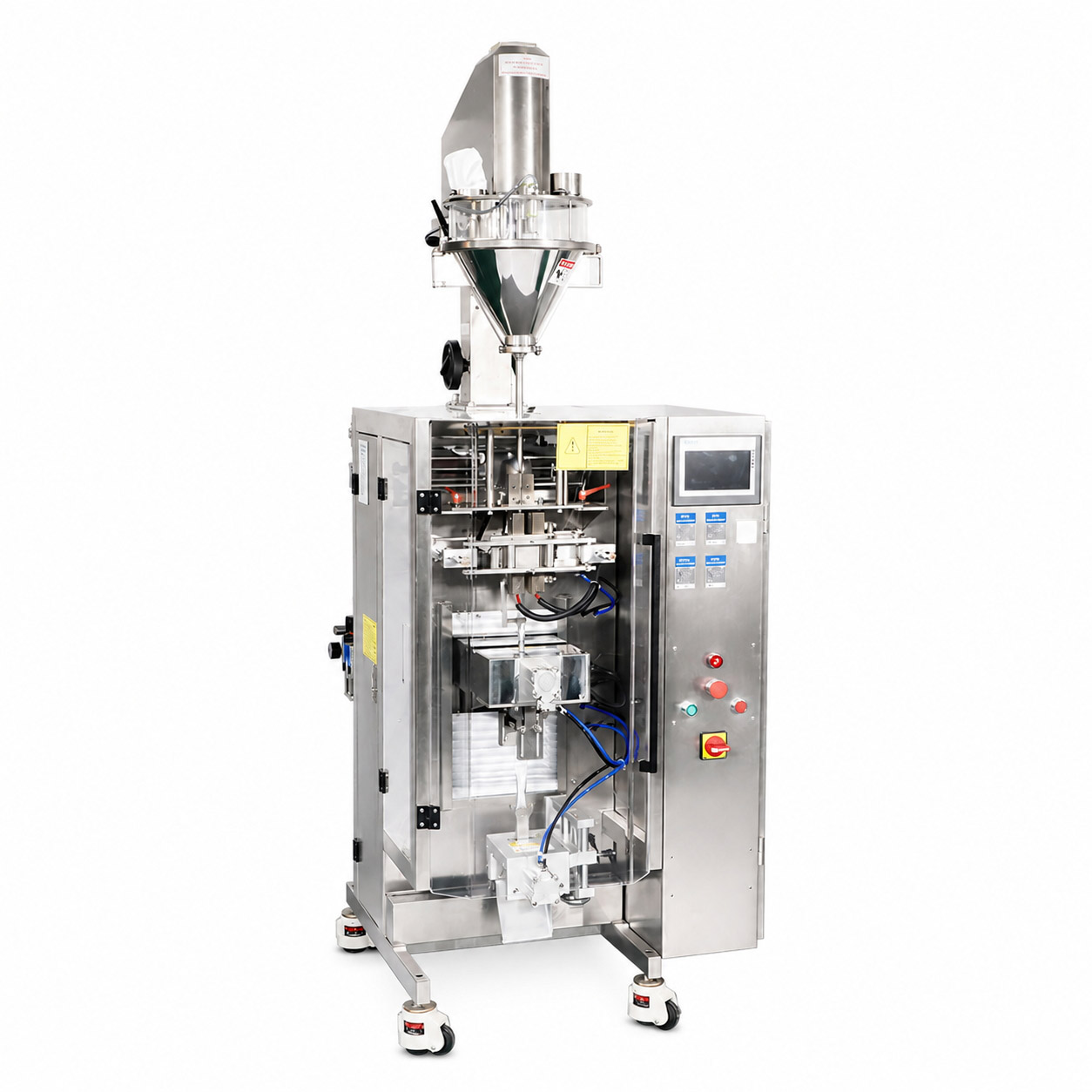

Stick Pack Machine
Send Us Your Powder
Two numbers narrow this down before anything else. How much goes in each sachet, and how many sachets a minute you need.
Twin-link is where those two pull against each other. Two pouches share the width of the film, so each one holds about a quarter of what a single sachet does — 100 ml here against 400 ml on the APK-180. If your fill is comfortably under 100 ml, you get double the speed for free. If it isn’t, no setting changes that, and we’d rather point you at the single-output machine.
Send us a sample of your powder and both numbers. We’ll run it and send you filled sachets back, so you see the fill weight spread and the tear line on your own product.
