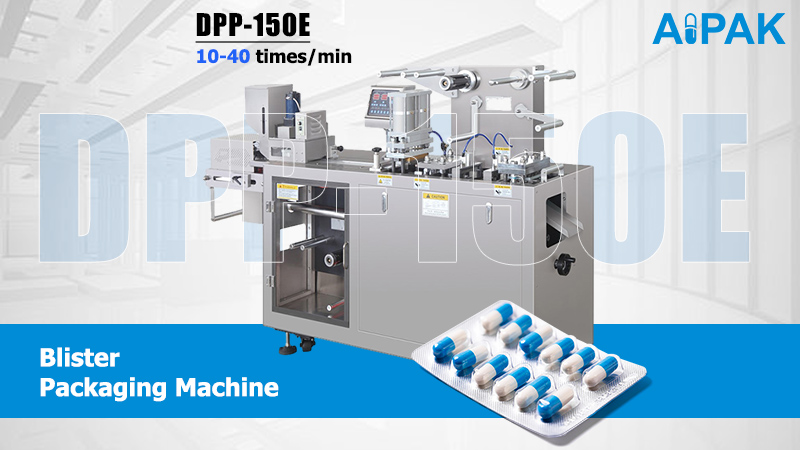

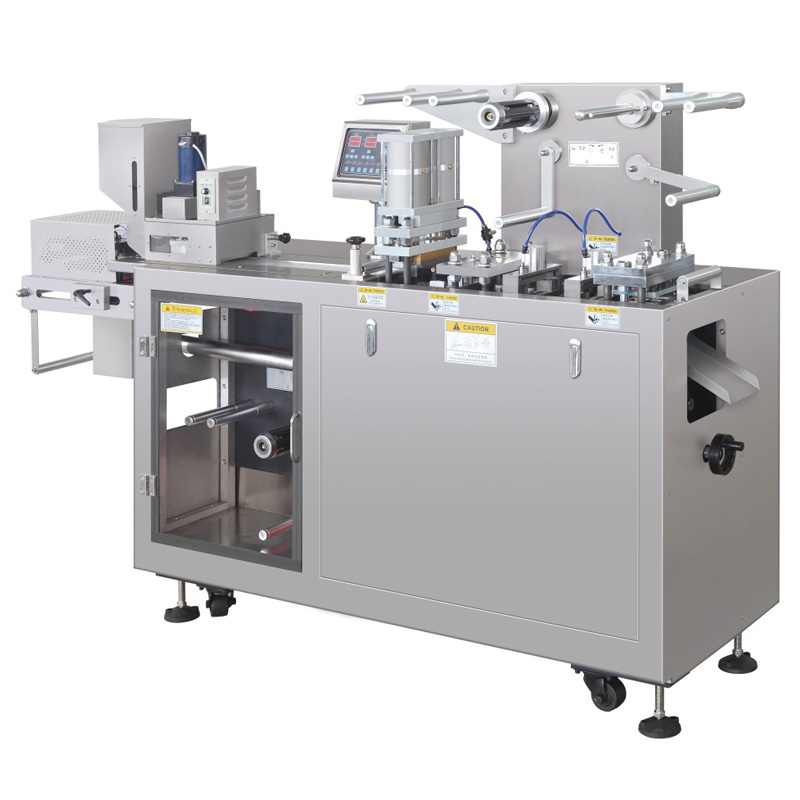

DPP-150E High-Efficiency Flat-Plate Blister Packaging Machine

150 × 120 mm forming area, 3,600 to 7,200 plates an hour

Your 120 mm machine is running two shifts to keep up. The DPP-150E gives you a 150 × 120 mm forming area and up to 40 punches a minute — 3,600 to 7,200 plates an hour, roughly double the 120H, on the same four-station format logic and the same footprint class.

1. Punch frequency: 10 to 40 times a minute

2. Output:  3,600 to 7,200 plates an hour

3. Forming area: 150 × 120 mm, depth ≤15 mm standard

4. Stroke range: 40 to 140 mm

5. Materials: PVC, PTP, cold-formed Alu-Alu, dialysis paper

Is this the right machine for you?

✓ Yes, if…

✕ Buy something else if…

Technical specification

FeatureDPP-150EWhat does it mean to you?
Punch frequency10–40 times/min—
Output3,600–7,200 plates/hourRoughly double the DPP-120H
Forming area & depth150 × 120 mm, ≤15 mm (custom to 25 mm)Tell us the item dimensions before assuming 25
Stroke range40–140 mm—
Standard plate size140 × 90 mm, or to your designSend us a sample tablet and we design the pocket
Air pressure0.4–0.6 MPa—
Air consumption≥0.4 m³/min—
Main motor2.2 kW—
Total power6.5 kW, three-phase, 60 Hz. Built to your U.S. supply; we confirm the voltage with your quoteSingle-phase only? See the DPP-80
PVC film0.15–0.5 × 160 mm30 mm wider than the 120H
PTP foil0.02–0.035 × 160 mm—
Dialysis paper50–100 g × 130 mmNote: paper is 130 mm, not 160
Dimensions2,600 × 650 × 1,550 mm (L×W×H)—
Weight950 kg—

Model comparison

Model

Type

Punch freq.

Output

Forming area

Power

DPP-80

Flat plate

10–33 times/min

1,980 plates/hour

80 mm

2.4 kW

DPP-120H

Flat plate

10–35 times/min

2,400–4,200 plates/hour

120 mm

4.5 kW

DPP-150E

Flat plate

10–40 times/min

3,600–7,200 plates/hour

150 mm

6.5 kW

DPP-180H

Flat plate

10–50 times/min

4,800–9,600 plates/hour

180 mm

8.5 kW

DPP-260H1

Flat plate

10–50 times/min

6,000–12,000 plates/hour

 260 mm

9.5 kW

DPP-260H2

Rotary seal

60–130 times/min

Up to 28,800 plates/hour

260 mm

15 kW

DPH-260H

Rotary

80–150 times/min, 200 max

6,000–18,000 plates/hour

260 mm

24 kW

DPH-380H

Rotary

40–180 times/min, 200 max

Up to 45,000 plates/hour

380 mm

28 kW

Flat plate and rotary are two different machines, not two speeds of one. Flat plate stretches the film against a mold with positive air pressure and a mechanical punch. Rotary forms and seals on a drum with line contact. The difference shows up in material waste, changeover time and what the machine costs you per plate — the table above shows where each one fits.

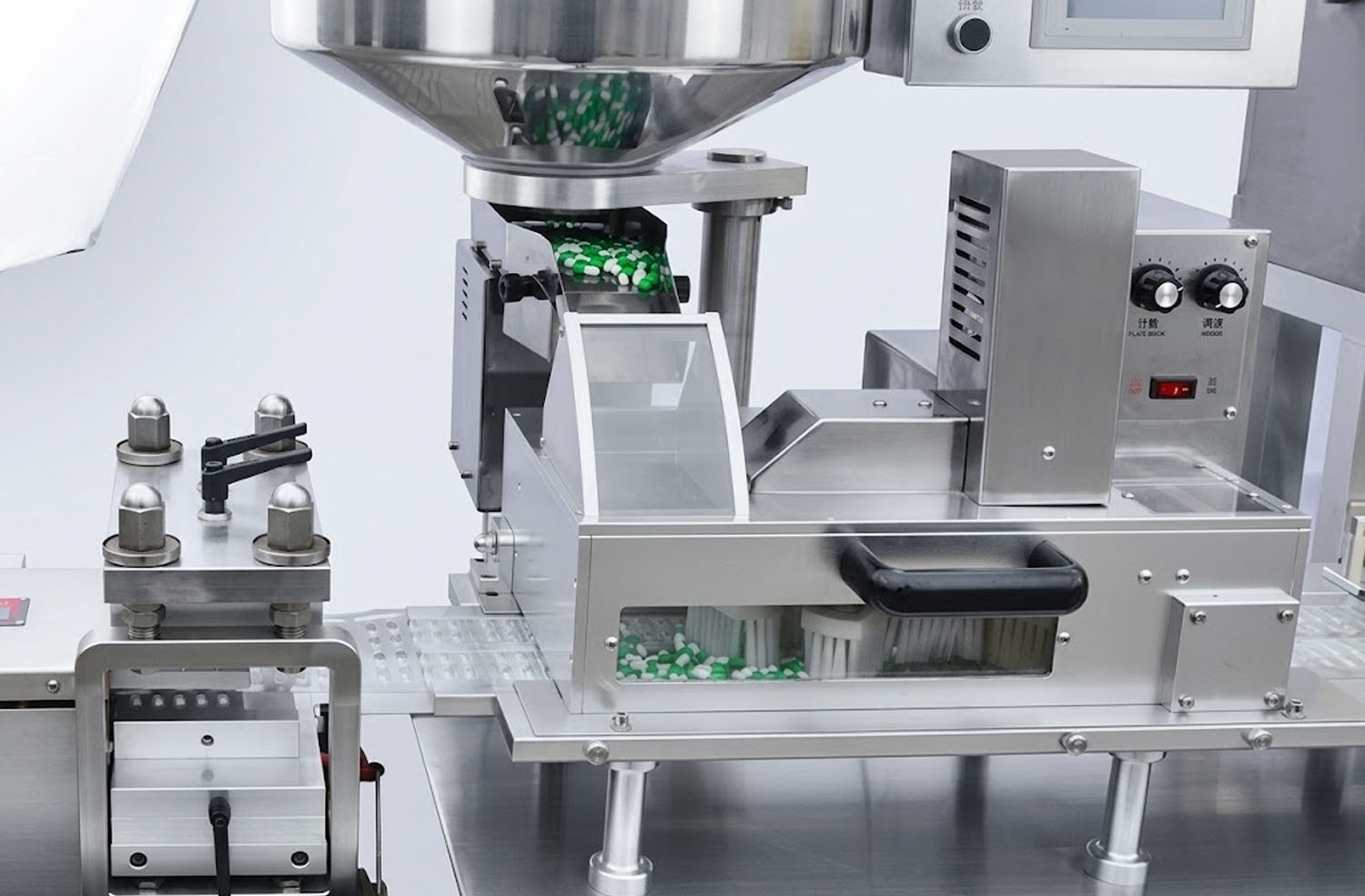

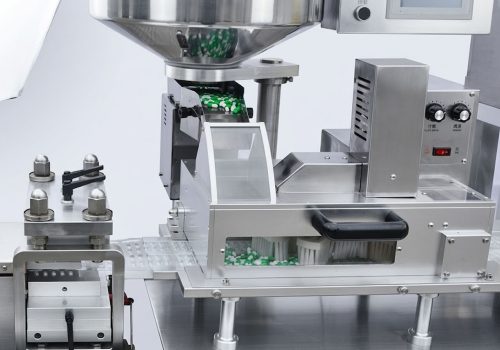

Intelligent Automatic Feeding

A versatile feeding system that automatically processes capsules, tablets, and softgels with adjustable speed to match your specific production tempo.

Film-to-Plate Registration

The formed PVC and the foil are aligned before the sealing station rather than at it. Misregistration shows up as a partly sealed pocket, which passes visual inspection and fails a leak test.

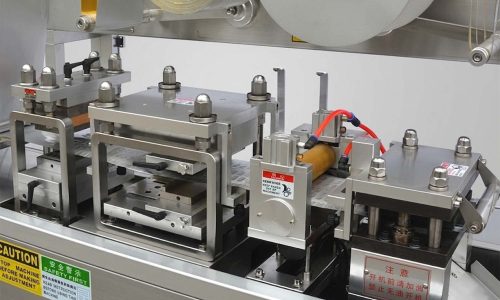

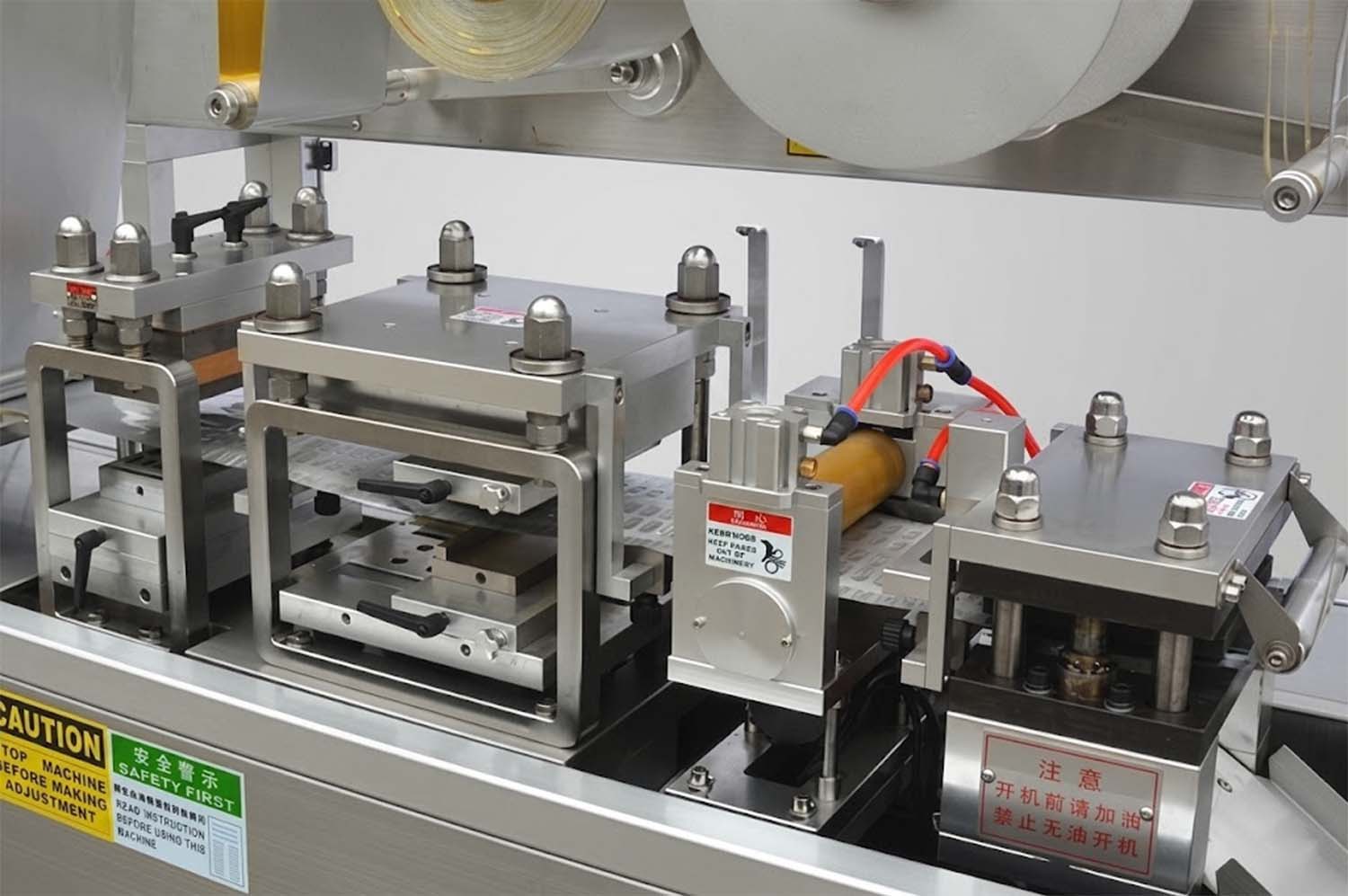

High-Integrity Heat Seal

A robust sealing station fuses the materials under controlled pressure and temperature, giving a consistent barrier against moisture and oxygen across the plate.

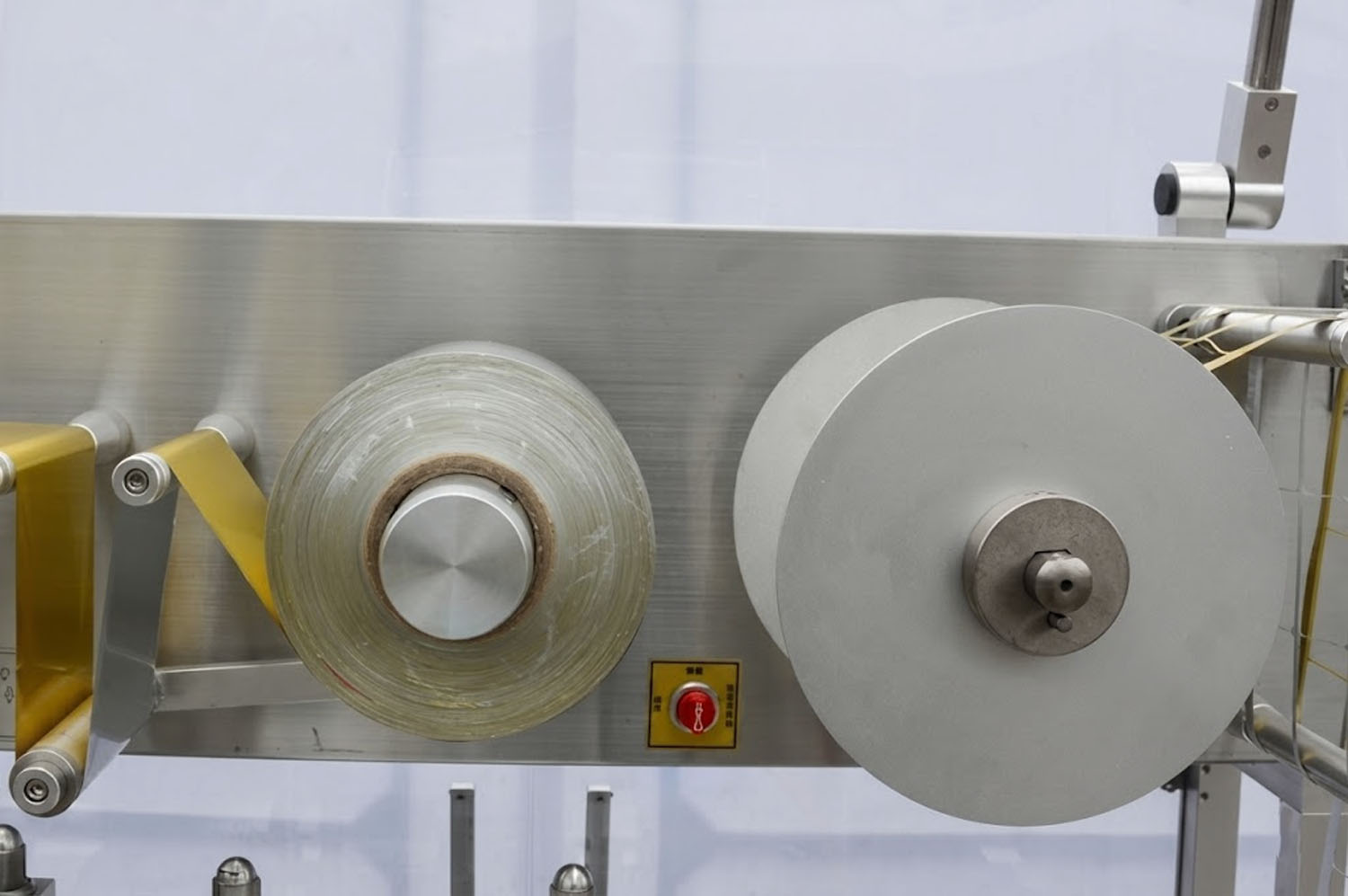

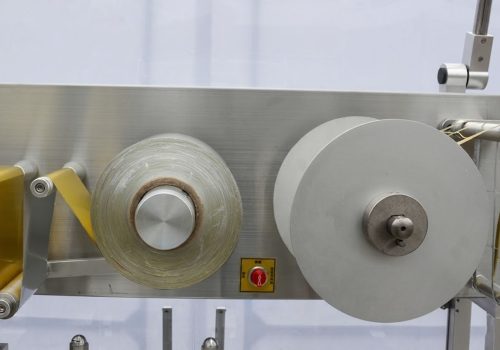

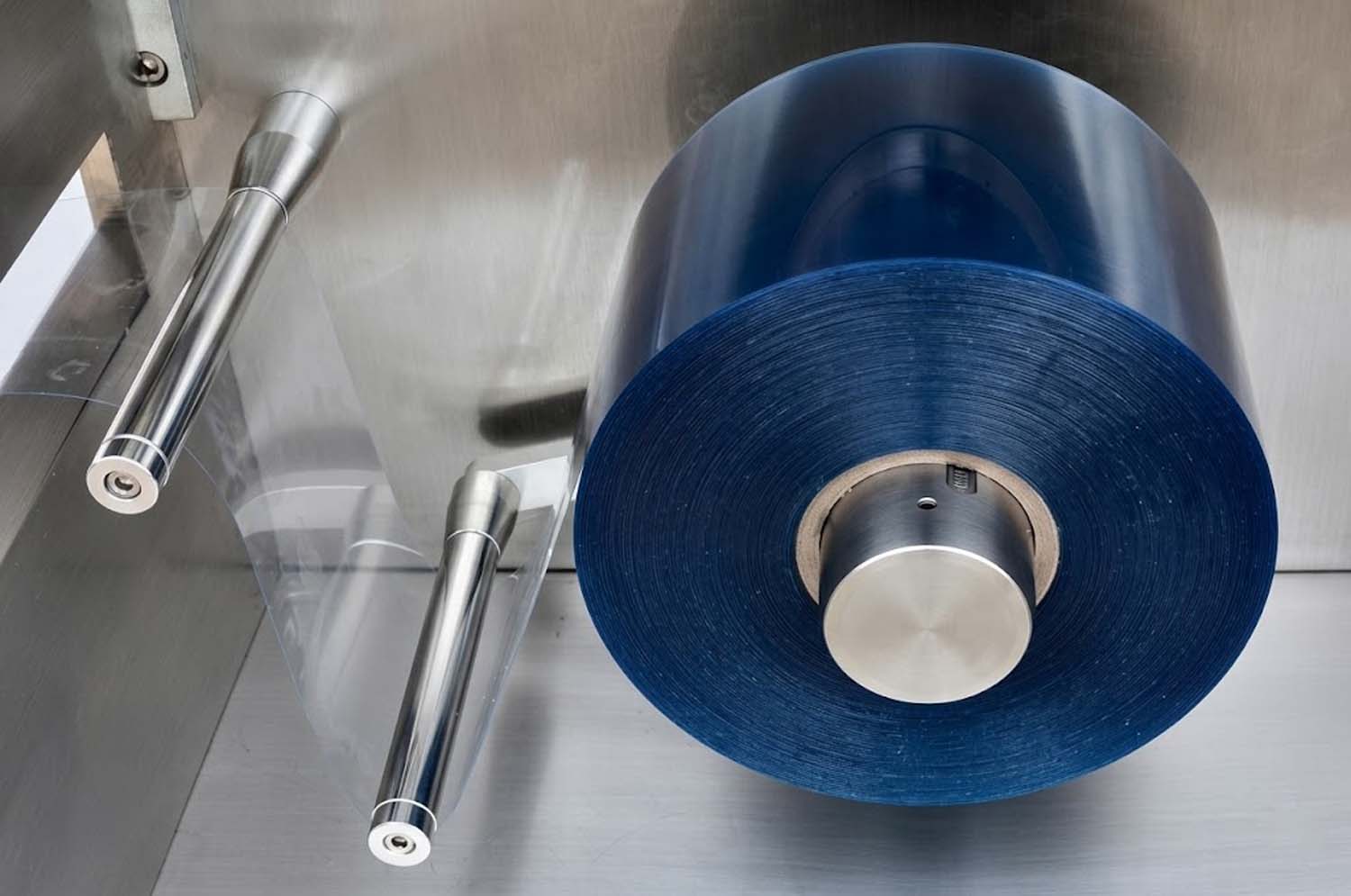

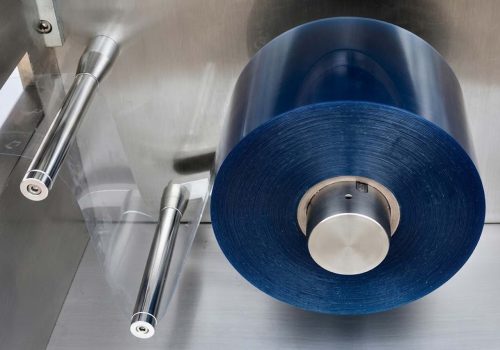

Film Delivery Device

The linkage deliver structure features multistage tensile control, keeping the aluminum film straight and taut without any folding, even at peak speeds.

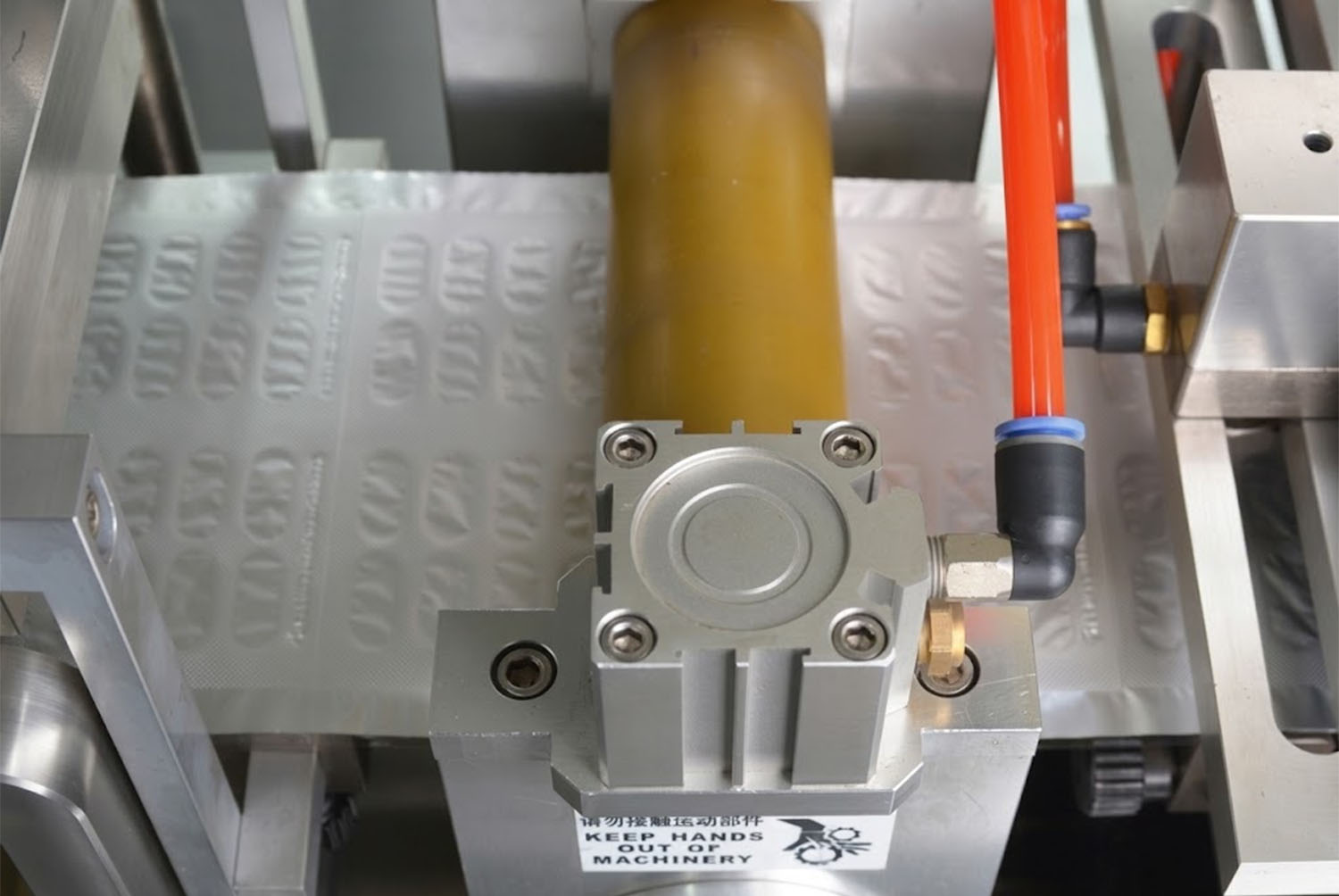

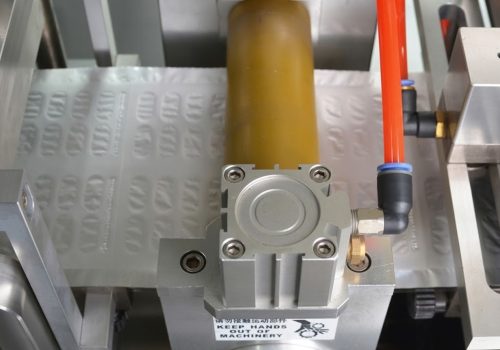

Precision Punching Cutter

High-durability cutters perform millimetric slicing of the sealed boards into customized sizes, delivering a clean, professional finish every time.

Industry Applications

A 150 mm forming width is where most proven formats settle: enough cavities per plate to bring the unit cost down, without the tooling weight of a 260 mm machine.

Multivitamin and supplement blisters

10, 20 and 30-count plates in retail formats. A 150 × 120 mm forming area fits more cavities per plate than the 120H, which is where the per-unit cost comes down at volume.

Softgels and capsules

Alu-PVC for standard shelf life, cold-formed Alu-Alu where moisture is the constraint. Both run on this platform with the right feeder.

Larger tablets and odd-shaped items

A 40 to 140 mm stroke handles items the 120H cannot. Send us the item and we’ll tell you whether it forms cleanly at 15 mm depth.

Moisture-sensitive tablets

Cold-formed Alu-Alu for tablets that pick up moisture, on the same platform with the right feeder. Tell us at the quotation stage, because the feeder can’t be changed later.

What changing over involves

A format set is four stations, not one part.

What changed

What you adjust

Roughly

Same format, new batch

Nothing

—

Plate layout or pocket size changes

All four molds — forming, sealing, embossing, cutting

15–30 minutes

Alu-PVC → Alu-Alu

Molds, and the feeder — if you specified the Alu-PVC universal feeder, it cannot be converted

Not a changeover

Tablets → paste or liquid

Molds and a different feeder entirely

Not a changeover

All four stations sit on a rack mandrel with a ruler. You turn the handle and read the scale rather than aligning by eye — which is what keeps a format change to minutes rather than a morning.

What to check before you buy

01

The tooling, not the machine

A format set covers four synchronised stations. Ask any supplier who designs the pocket layout, how long a new format takes to make, and what it costs. That's where a blister project succeeds or fails.

02

The feeder, before you order

An Alu-PVC universal feeder cannot run cold-formed Alu-Alu, and it cannot be converted afterwards. Ask which feeder you're being quoted and what it locks you out of.

03

Installation and training

Ask what's included and what costs extra. The answer varies more between suppliers than the machine price does.

Why Choose AIPAK?

One Point of Contact

One project engineer handles your machine from proposal to commissioning, so you’re not chasing five suppliers for one answer.

We Design the Pocket Around Your Product

Send us your tablet or capsule samples and tell us your foil. We design the pocket layout and specify the feeder before we quote, because an Alu-PVC universal feeder can’t be converted to Alu-Alu later.

A U.S. Number, Answered by Us

+1 (213) 526-8644, answered by our engineers 9 AM–7 PM China time, Monday to Friday. That’s evening and overnight in the U.S., so leave a message or send a WhatsApp anytime and we’ll pick it up first thing.

Spare Parts and Lead Time, in Writing

A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.

DPP-150E Blister Packaging Machine FAQ

What production scale is the DPP-150E designed for?

The DPP-150E sits in the middle of our flat-plate range. Its 150 × 120 mm forming area and 40–140 mm stroke suit facilities running steady medium-volume batches across several product formats — larger than a pilot line, but without the footprint and utility demands of a high-speed rotary system. For R&D and clinical-trial batches, the DPP-80 is the better fit; for continuous mass production, look at the DPP-260 series or the rotary DPH range.

Can the DPP-150E run both Alu-PVC and Alu-Alu?
It depends on which feeder you specify at order. Some feeder types handle both; the Alu-PVC universal feeder handles Alu-PVC only and cannot be converted afterwards. Cold-formed Alu-Alu also needs a different forming station, because the foil is stretched mechanically rather than softened with heat. Tell us at the quotation stage whether Alu-Alu is in your plan — it’s not a setting you change later.
How long does a format change take — say from a 10-count to a 20-count plate?

A format set is four molds, not one: forming, sealing, embossing and cutting. All four sit on a rack mandrel with a graduated scale, so you turn the handle and read the scale rather than aligning by eye. 15–30 minutes for an operator who’s done it before. The stroke length is a separate adjustment and it’s done on the screen — that part takes seconds.

One thing worth knowing: if the new format also changes your material, that’s not a changeover. An Alu-PVC universal feeder can’t run cold-formed Alu-Alu, and it can’t be converted afterwards.

What types of feeding mechanisms are available for this flat-plate blister packaging machine?

Four types. A vibratory feeder or an Alu-PVC universal feeder for capsules and tablets, a paste feeder for pastes and gels, and a liquid filling feeder for liquids and syrups. The Alu-PVC universal feeder runs Alu-PVC only, so if Alu-Alu is in your plan, tell us before we specify it.

How does the mechanical stepping stroke control function to reduce plastic material waste?
The machine utilizes a high-precision mechanical linkage combined with an electronic stepping traction mechanism. The feeding stroke length can be set and fine-tuned on the touch screen interface. This ensures millimetric alignment during continuous traction, minimizing the blank border area between blister pockets to maximize material utilization rates.
Can the DPP-150E be integrated with automated online vision inspection or batch printing tools?

Yes. Camera inspection with automatic rejection of broken tablets and empty pockets can be added as an option, along with inkjet batch coding. Tell us what you need at the quotation stage.

Is this machine compatible for continuous line integration with downstream cartoning equipment?
Yes. The outfeed station of the DPP-150E can be aligned and synchronized with our medium-volume entry cartoning solutions, such as the WZH-120 III Intermittent Cartoning Machine. By linking their PLC communication lines, the blister machine’s cutting speed will automatically modulate based on the downstream cartoner’s live handling cycles, forming a cohesive packaging line.
Does it run on US power?

Yes. We build to your U.S. supply at 60 Hz and confirm the voltage with your quote.

How do spare parts work?

A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.

Customers Also Interested In...

Send us your plate, not just your output target

Plates per hour is the number everyone asks about, but the one that decides the machine is how many cavities fit on your plate. A 10-count and a 30-count plate at the same hourly rate are two different machines.

Send us a sample tablet or capsule and your current plate layout. We’ll tell you whether 150 mm is the right width, or whether you’d be better off at 120 or 180.
