WZH-120-III Blister Cartoning Machine
Someone on your line is counting blister plates and folding leaflets by hand. The WZH-120-III does both at up to 120 cartons a minute. You set the number of plates per carton on the screen — no tooling change to go from two plates to three.
1.Speed — 30 to 120 cartons per minute
2.Plates per carton — set on the touchscreen, not by changing parts
3.Power — 220V single-phase, 1.5 kW
Is this the right machine for you?
✓ Yes, if…
- You pack ALU-PVC or ALU-ALU blister plates
- You need under 120 cartons a minute
- Your carton is within 70-180 × 35-85 × 14-50 mm
- Your unfolded leaflet is within 250 × 180 mm
- You only have single-phase 220V at this station
✕ Buy something else if…
- You pack bottles → the WZH-120P has bottle unscrambling at the infeed
- You pack sachets or pouches → the WZH-120D takes 1 to 12 sachets per carton
- Your line runs above 120 cartons a minute → see the WZH-180
- Your unfolded leaflet is larger than 250 mm → the 180 and above take 300 mm
- Your carton was designed for hand packing → it probably fits your product exactly. A machine needs clearance. Send us both sets of dimensions
Set the plate count on screen
Two blister plates today, three next month. You change the number on the touchscreen rather than swapping feeder parts. On a line running several SKUs, that is the difference between a five-minute change and a twenty-minute one.
Leaflet folding, 1 to 4 folds

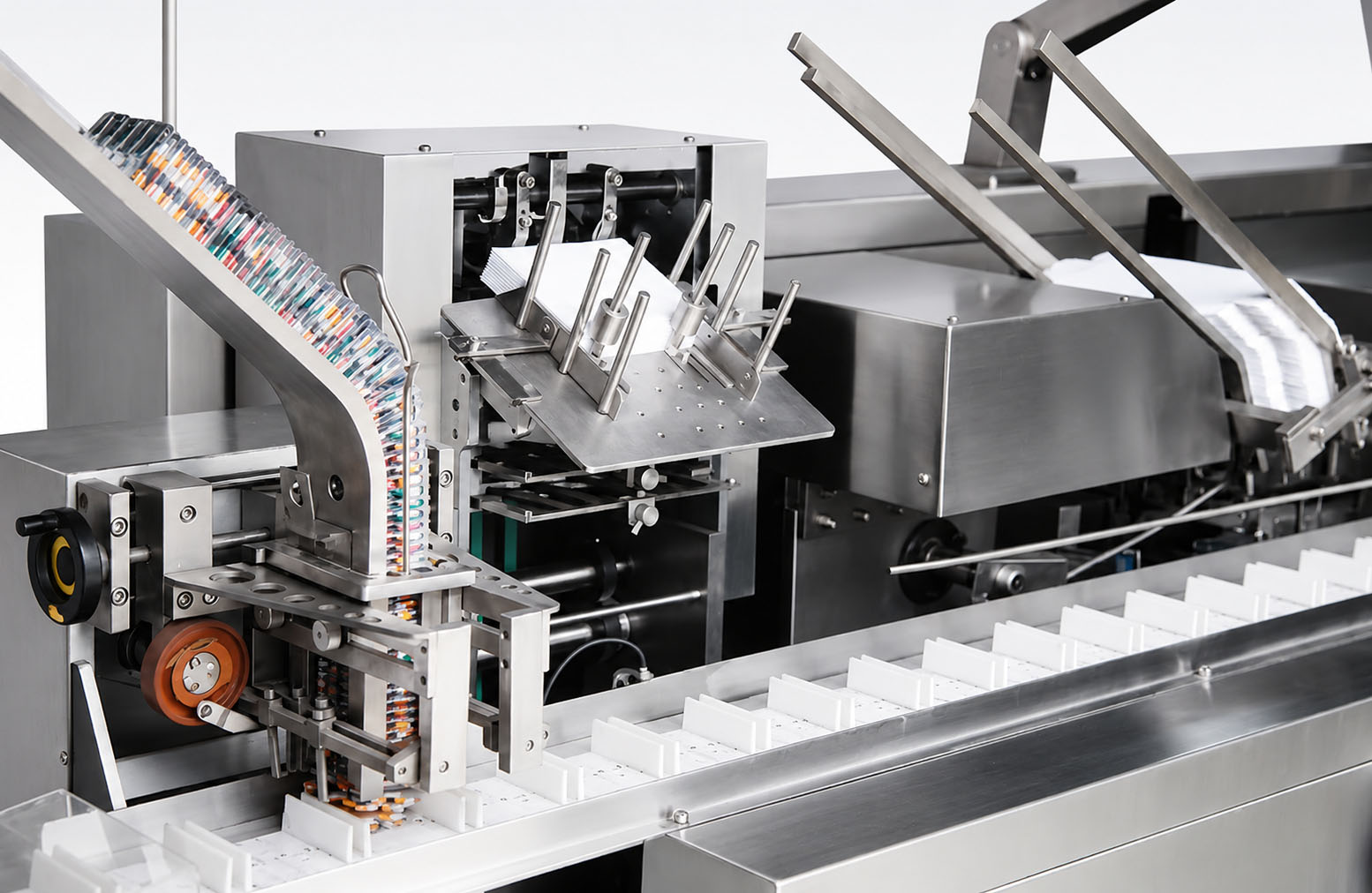

The folder takes an unfolded leaflet up to 250 × 180 mm and folds it once, twice, three or four times. It feeds into the carton with the product in the same push.
It rejects, it doesn't just alarm
A carton missing its blister or its leaflet is removed from the line automatically. The screen shows what happened and where.
220V single-phase
This machine and the WZH-120P are the only cartoners in our range that run on single-phase supply. If your packing area has no three-phase, that decides your options before anything else does.
Technical specification
Parameter | Value | What it means for you |
Encasing speed | 30–120 cartons/min | Actual speed depends on your carton and plate count |
What it packs | ALU-PVC and ALU-ALU blister plates | Bottles or sachets? Different machine |
Carton size | 70-180 × 35-85 × 14-50 mm | Same window as every model in our range |
Carton board | 250–350 g/m² | Depends on carton size |
Unfolded leaflet | 80-250 × 90-180 mm | The 180 and above take up to 300 mm |
Folds | 1–4 | — |
Air pressure | ≥0.6 MPa | Below this, cartons don’t suck down and rejects don’t kick out |
Air consumption | 120–160 L/min | Size your compressor above this |
Power | 220V, 50Hz, 1.5 kW | Single-phase |
Dimensions | 3,155 × 1,260 × 1,770 mm | The most compact cartoner in our range |
Weight | 1,400 kg | — |
Model comparison
Model | Speed | What it packs | Carton L×W×H (mm) | Leaflet unfolded | Power |
WZH-120-III | 30–120 | Blister packs | 70-180 × 35-85 × 14-50 | 80-250 × 90-180 | 220V, 1.5 kW |
WZH-120P | 30–120 | Bottles, with infeed unscrambling | 70-180 × 35-85 × 14-50 | 80-250 × 90-180 | 220V, 1.5 kW |
WZH-120D | 30–120 | Sachets and pouches, 1–12 per carton | 70-180 × 35-85 × 14-50 | 80-250 × 90-180 | 380V, 4 kW |
WZH-180 | 180 | Blisters, tubes, trays, bottles, sachets | 70-165 × 35-85 × 14-50 | 80-300 × 90-180 | 380V, 4.5 kW |
WZH-260 | 260 | Blisters, tubes, trays, sachets | 70-180 × 35-80 × 14-50 | 80-300 × 90-180 | 380V, 5 kW |
WZH-260P | 260 | Bottles, with infeed unscrambling | 70-180 × 35-80 × 14-50 | 80-300 × 90-180 | 380V, 5 kW |
WZH-320 | 320 | Blisters, bottles, tubes, sachets | 70-180 × 35-80 × 14-50 | 80-300 × 90-180 | 380V, 5.8 kW |
WZH-450 | 450 | Blisters, tubes, trays, sachets | 70-180 × 35-80 × 14-50 | 80-300 × 90-180 | 380V, 5 kW |
WZH-600 | 600 | Blisters, bottles, sachets · full servo | 70-180 × 35-80 × 14-50 | 80-300 × 90-180 | 380V, 15 kW |
Two things decide the model, and speed is only the second one.
What you pack comes first. Blisters, bottles and sachets each need a different feeder at the infeed. In the 120 series that is three separate machines. Above 120 the machines are more general, except the 260P, which is built for bottles.
Carton size is almost the same across the range. Every model takes a carton 70 to 180 mm long. Only the width narrows slightly above 180 cartons a minute, from 85 to 80 mm. So you do not lose carton flexibility by buying speed.
Industry Applications
The WZH-120 III is engineered to provide professional secondary packaging across multiple sectors:
Changeover
Throughput sells machines. Changeover decides what you actually produce in a week.
What changed | What you adjust | Roughly |
Same carton, new batch | Recipe on the screen | 15-30minutes |
Carton length or width | Handwheels only — no parts to change | 15-30minutes |
Carton or product height | The pusher head and pusher block must be swapped | 15-30minutes |
Product format changes | The feeder at the infeed | 15-30minutes |
Closing style (tuck-in → glue) | Not a changeover. That is a rebuild | — |
Length and width are a handwheel. Height means changing the pusher. A different product means a different feeder. A different closing style means a different machine.
What to check before you buy
The five questions any supplier should ask you
What goes in the carton and how many. Carton dimensions and closing style. Leaflet format and whether it arrives folded. What feeds the machine upstream. Target speed. If a supplier quotes you without these, the machine that arrives will not fit the line it was bought for.
Carton sizing — where most projects go wrong
Manually packed cartons are usually a snug fit around the product. An automated pusher needs clearance. Send us both your product and carton dimensions. We will tell you before you order whether your existing carton runs, or needs modifying — rather than after it has been printed in quantity.
The documentation
Operating and maintenance manuals in English, electrical schematics, a spare parts list with part numbers and prices, and a signed FAT report before the machine ships. Ask any supplier to show you a sample manual page before you order.
Why buy from us
One point of contact — You deal with us for the machine, the installation and the service call. Custom feeders, closing configurations and layout changes go through the engineers who build it.
Installation and training — We install it, commission it, and teach your operators.
Spare parts — Wear parts listed and priced in your quote before you sign.
Lead time — About 1-3 months. European suppliers quote 18 to 24.
WZH-120 III Cartoning Machine FAQ
You set it on the touchscreen. Two, three, four — whatever your carton holds. No parts to change.
No. The feeder at the infeed is built for blister plates. Bottles go on the WZH-120P, sachets on the WZH-120D. Same carton range, different feeders.
Yes, when specified at the order stage. Glue sealing uses a different mechanical station from tuck-in, so the machine is built one way or the other. It is not something that can be added later without rebuilding the sealing section.
Yes, it can be customizable.
About 1-3 months from order. We confirm the date in writing with your order.
