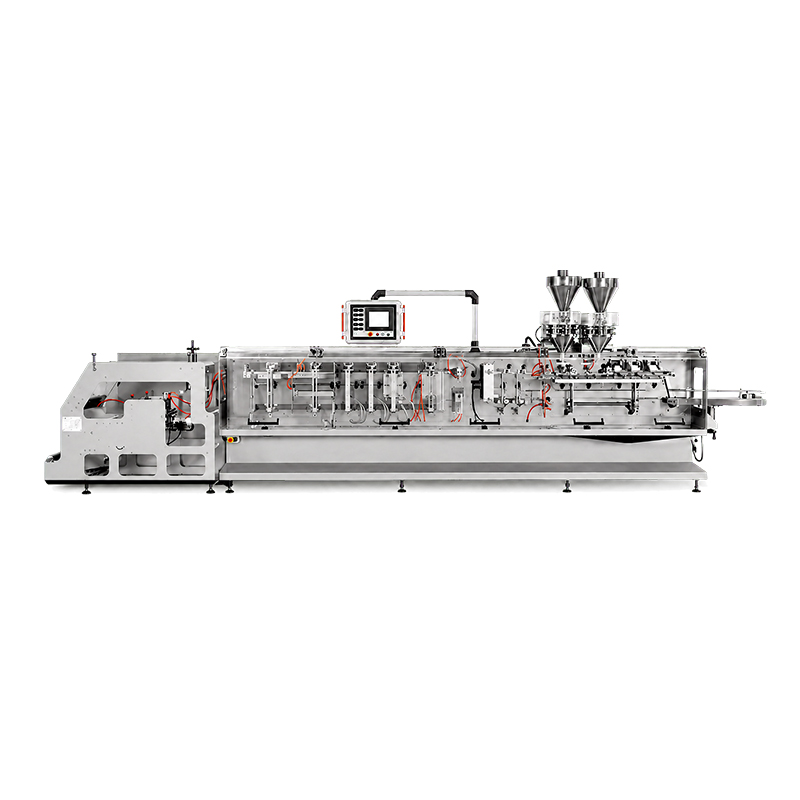

APK-240S Premade Pouch Filling Machine — Pouches up to 240 mm Wide
The largest pouch in our horizontal range, for powders and granules — 40 to 60 a minute
Some pouches are simply too big for a compact machine. This one takes pouches up to 240 mm wide and 320 mm long, holding up to 1,500 ml — the largest in our horizontal range — on the same frame as the APK-210Z. You buy the pouches printed from your supplier; the machine opens, fills and seals them.
1. Pouch size: 100 to 240 mm wide, 120 to 320 mm long, the largest in the horizontal range
2. Powders and granules: servo auger for powders, volumetric cup or multihead weigher for granules
3. Zipper opening: a dedicated station opens the zipper before filling
4. Speed: 40 to 60 pouches a minute
Is the APK-240S the right size for you?
✓ Yes, if…
- Your pouch is wider than 210 mm or holds more than 1,200 ml
- You buy printed pouches from a pouch supplier
- You run several pouch sizes and change between them
- You're packing a powder or a free-flowing granule
✕ Buy something else if…
- Your pouch fits within 210 mm and 1,200 ml → the APK-210Z does the same job on the same frame. There's no reason to buy the bigger one
- You're filling 5 lb pouches → over 1,500 ml, see our rotary premade machines, which take pouches up to 320 mm wide
- You run one pouch size at high volume and pouch cost is a real line item → a roll-film doypack machine makes the pouch from film
- Your product is a liquid or a cream → we build these machines for powders and granules

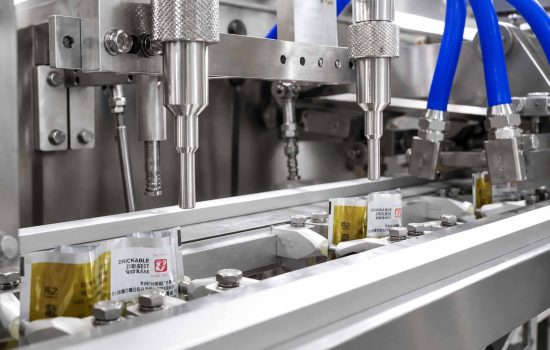

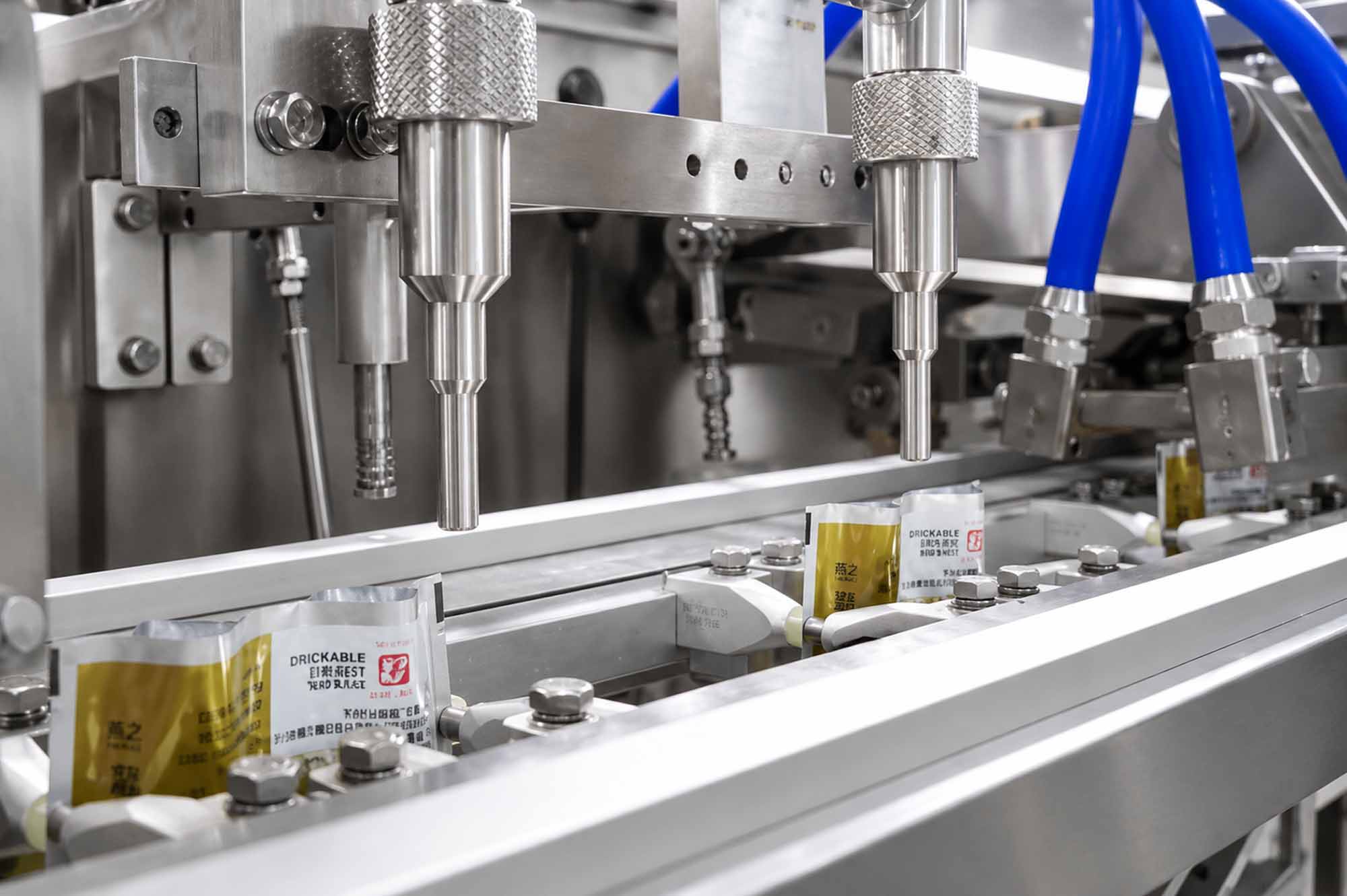

Dual Filling Station Speed Optimization
Features an integrated dual-stage dosing assembly that splits the product injection cycle across two distinct mechanical stations. Each drop is smaller, so a light powder settles between the two stations instead of billowing up into the pouch mouth — and the second station can top up to the target weight.

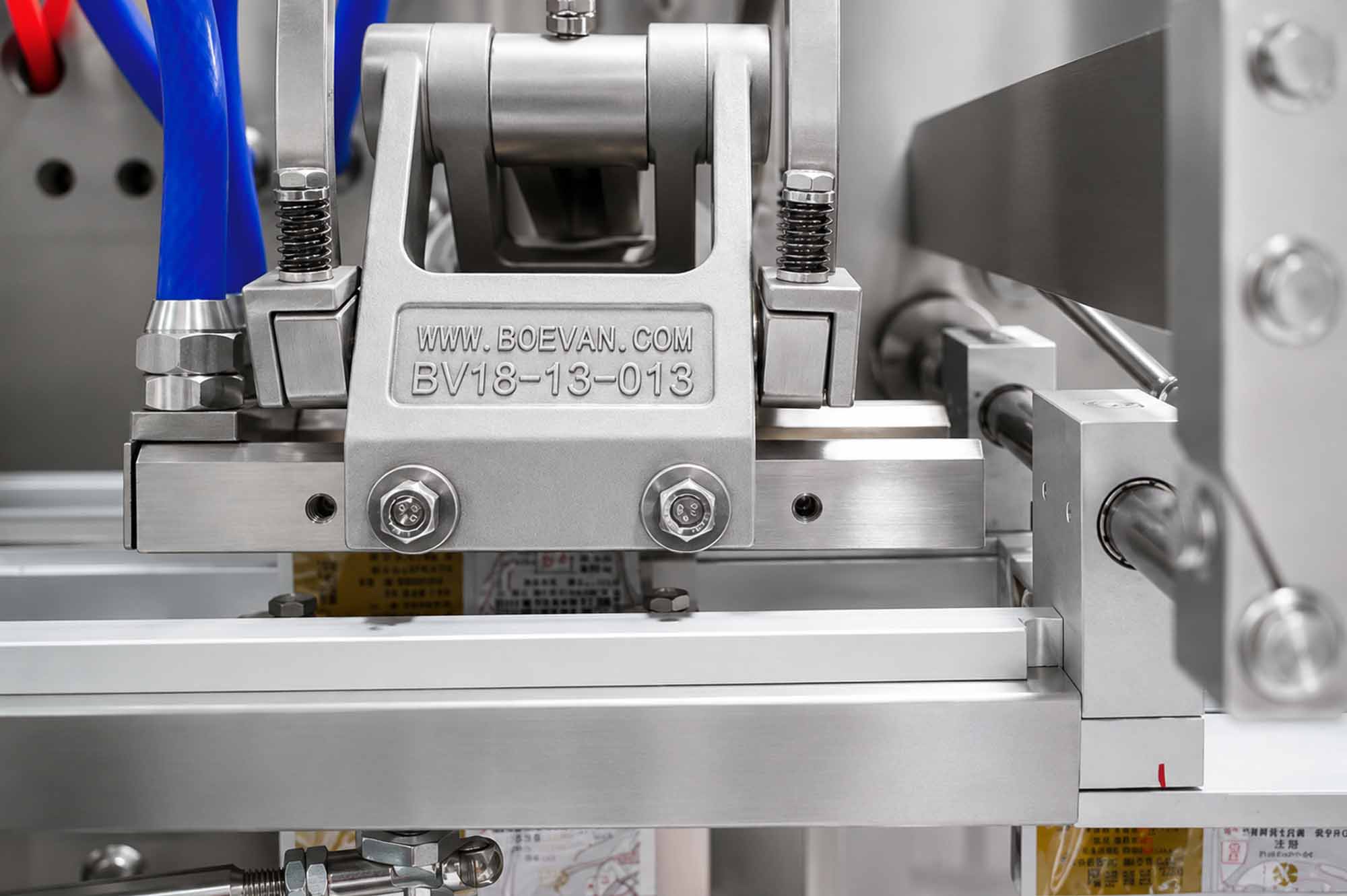

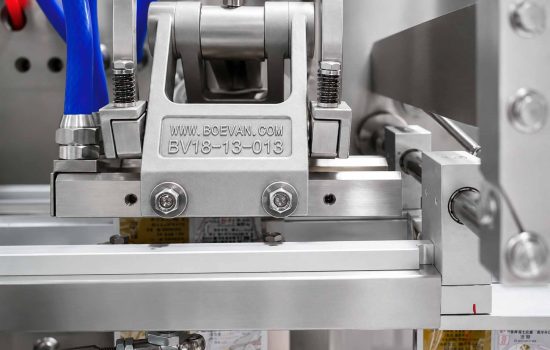

Progressive 3-Pair Top Seal Unit Assembly
Engineered with three sequential pairs of independent, PID-regulated thermal sealing bars followed by cold setting blocks. This heavy-duty configuration ensures maximum seal strength, yielding flat, wrinkle-free closures across the full width of a large pouch.

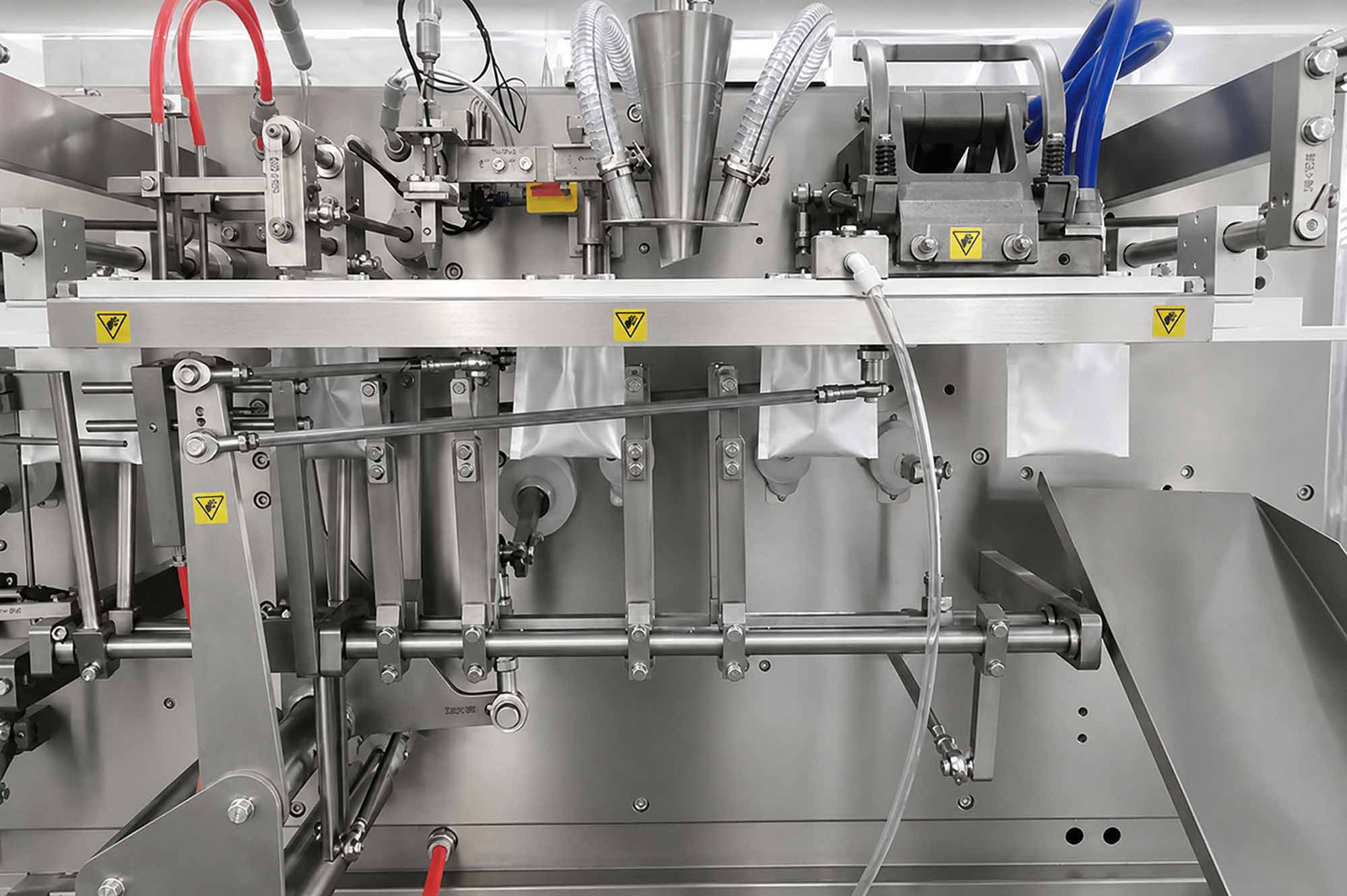

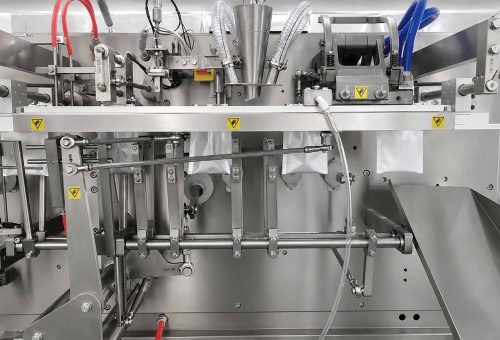

Active Mechanical Pouch Opening Matrix
Equipped with a synchronized pre-out pouch picking unit matched with specialized mechanical claws that handle bag mouth opening and bottom gusset expansion concurrently. A sensor checks that the pouch is open before any powder drops. If it isn’t, the filler doesn’t fire for that cycle.

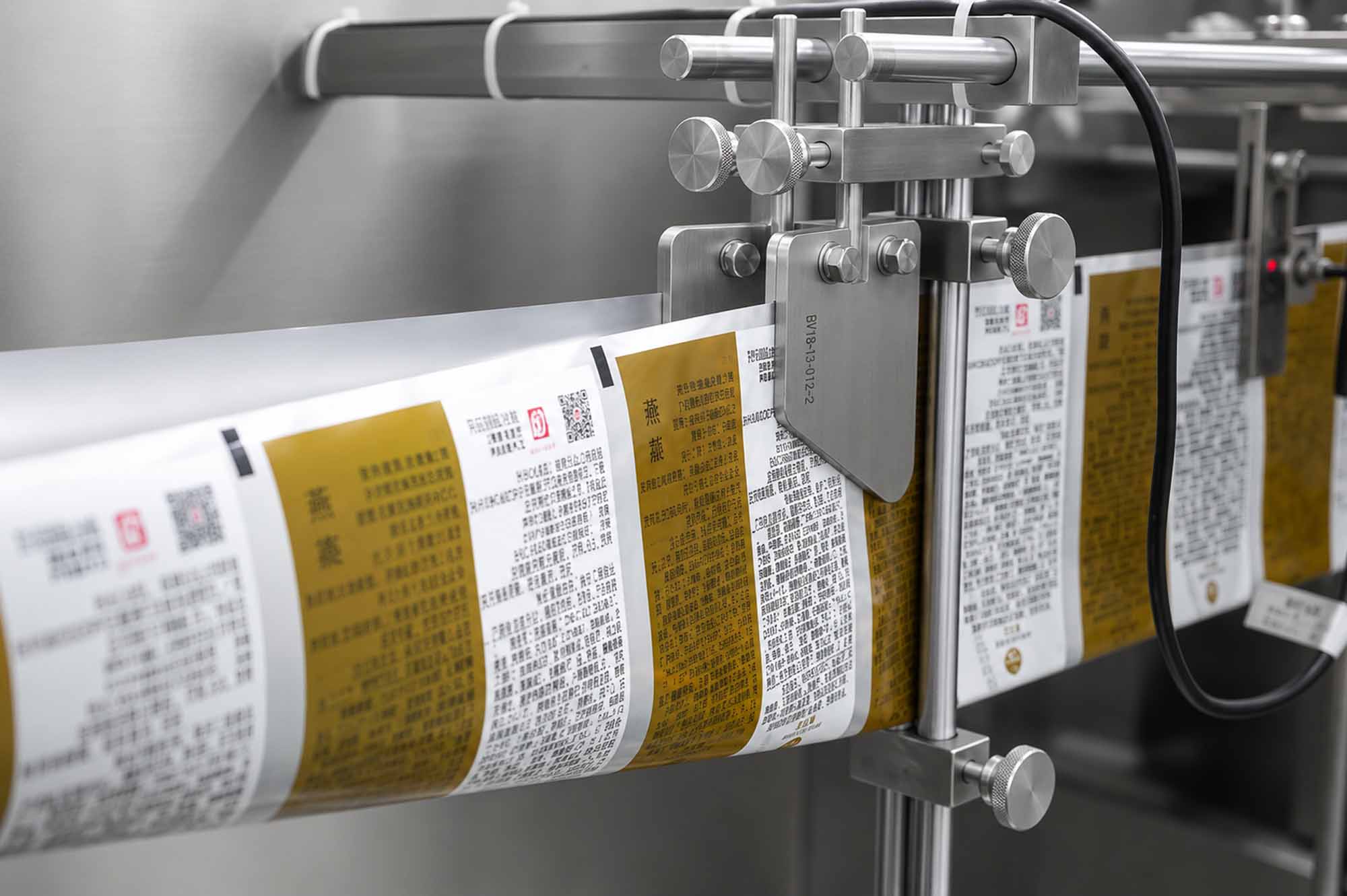

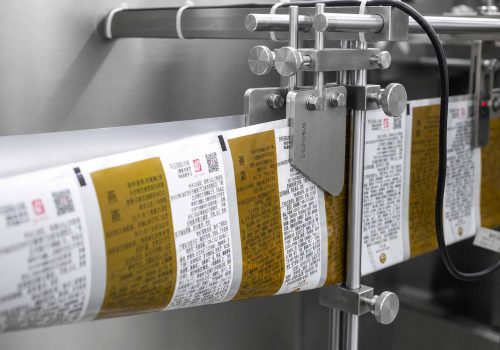

Expanded Horizontal Premade Bag Versatility
The widest pouch on a horizontal frame — up to 240 mm — with gripping clamps that adjust for flat bags, standard pouches and larger stand-up pouches. The APK-240S allows operators to transition between flat bags, standard pouches, and customized large Doypacks within 10 to 15 minutes.

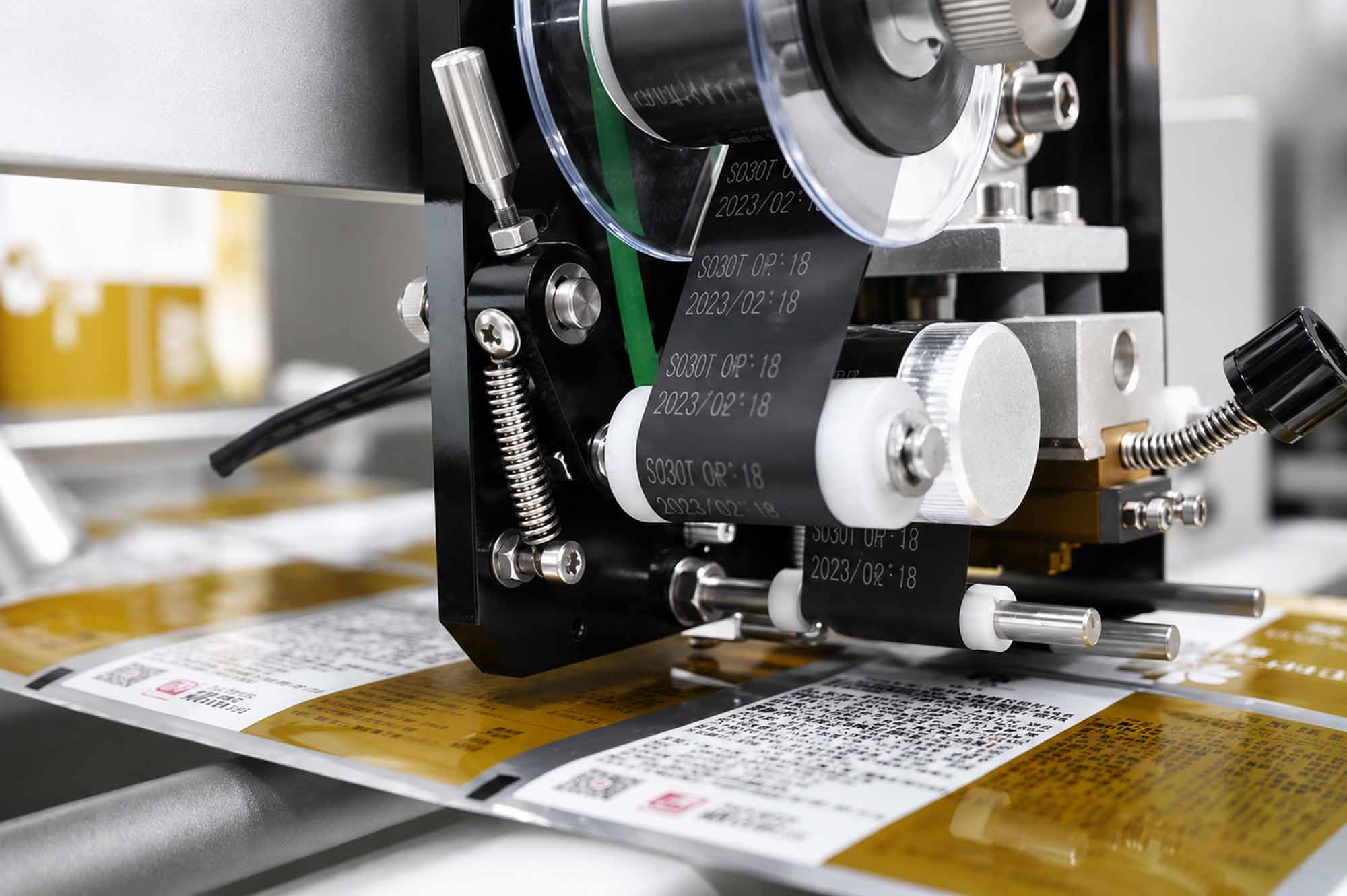

Overhead Modular Filler Gantry Harmony
Built with an open-access structural deck designed for seamless native integration with varied upstream dosing devices. It takes a servo auger for powders, or a volumetric cup or multihead weigher for free-flowing granules.
Technical specification
Parameter | APK-240S | What it means for you |
Pouch width | 100–240 mm | The widest in the horizontal range |
Pouch length | 120–320 mm | — |
Max fill | 1,500 ml | The largest in the horizontal range |
Speed | 40–60 pouches/min | — |
Pouch types | Stand-up, flat, shaped | — |
Power | 4.5 kW | Same as the APK-210Z |
Air | 350 NL/min | Same as the APK-210Z |
Dimensions | 3,200 × 980 × 1,400 mm | Narrower than a rotary machine |
Weight | 1,100 kg | — |
The APK-240 and APK-210Z share one frame — same power, air, footprint and weight. The difference is pouch size and fill: 240 mm and 1,500 ml here, 210 mm and 1,200 ml on the 210Z.
Model comparison
Model | Pouch width | Max fill | Speed | Power | Length |
APK-180S | 60–180 mm | 400 ml | 60–80/min | 2.3 kW | 2.25 m |
APK-180D | 60–180 mm | 400 ml | 120–160/min | 2.3 kW | 2.25 m |
APK-210Z | 90–210 mm | 1,200 ml | 40–60/min | 4.5 kW | 3.2 m |
APK-240S | 100–240 mm | 1,500 ml | 40–60/min | 4.5 kW | 3.2 m |
APK-280S | 90–140 mm | 800 ml | 90–120/min | 4.5 kW | 5.1 m |
Every machine in this group fills printed pouches you buy in. If you'd rather make the pouch from roll film, see our doypack machines — lower cost per bag, longer machine.
Production Applications
Thanks to its flexible, heavy-duty mechanical gripping scale and dual filling compatibility, the APK-240S delivers versatile automated precision across high-volume sectors:
Meal replacement and mass gainer
The largest fills in the horizontal range. Multi-serve pouches where 1,200 ml isn’t enough.
2 lb protein pouches
Wider stand-up pouches for protein brands whose 2 lb size doesn’t fit a 210 mm pouch.
Greens and fibre blends
Bulky powders that take up volume without weighing much, so the pouch needs to be bigger than the fill weight suggests.
Bulk granules
Free-flowing granules in large multi-serve pouches, on a volumetric cup or multihead weigher.
What changing over involves
What changed | What you adjust | Roughly |
Same pouch, next batch | Reload the magazine | 15-30 Minutes |
Pouch width | Gripper spacing on handwheels with a scale | 15-30 Minutes |
Pouch length | Guide height | 15-30 Minutes |
Powder → granule | Dosing unit — auger to cup | 15-30 Minutes |
This is the reason to buy premade pouches rather than film: a size change is an adjustment on this machine, not a new set of forming parts.
What to check before you buy
What a size change actually takes
Ask any supplier how a pouch-width change is done — handwheels and a scale, or a new set of parts — and time it on their floor, not in their brochure.
Whether it opens zippers
Not every premade pouch machine does. If your pouches have a zipper, ask for the zipper-opening station by name.
Installation and training
Ask what's included and what costs extra.
Why Buy From AIPAK?
One Point of Contact
You deal with us for the machine, the change parts, the installation and the service call. If something goes wrong on your floor, there’s one number to ring and one team responsible for fixing it — not a machine supplier and an installer pointing at each other.
We Run Your Product Before You Order
Every supplier quotes a speed and an accuracy figure, and those were measured on somebody’s product — probably not yours. Running your own sample is the only way to know what the machine will actually do on it.
A U.S. Number, Answered by Us
+1 (213) 526-8644 — phone or WhatsApp, 9am to 11pm Eastern, Monday to Friday. That’s 6am to 8pm Pacific, so it covers a full working day anywhere in the continental U.S. Outside those hours and at weekends, message us and we’ll come back at the start of the next window. We’d rather tell you that than claim 24/7 and not answer.
Spare Parts and Lead Time, in Writing
Wear parts are listed and priced in your quote before you sign, so you know what the first year costs. Lead time is confirmed in writing with your order — not estimated on a call.
Product Technical FAQ for APK-240S Premade Pouch Filling Machine
The APK-210Z Series uses two parallel filling stations to handle large-volume dosing. By distributing the filling process across two stations, the machine can maintain a stable production pace while supporting high-volume pouch filling. Specific filling performance and output for 1200 ml products are subject to product characteristics and final machine configuration.
A horizontal machine is narrower — under one metre wide compared with approximately 2.8 m for our rotary machines — making it a more compact choice for zipper pouches up to 210 mm. A rotary machine is better suited to larger zipper pouches of powder, where additional stations for degassing and rim sweeping can be more valuable than a compact machine footprint.
The APK-210Z Series uses a multi-stage top sealing system for zipper pouches. The specific sealing configuration, temperature control, and sealing performance for heavy-foil laminates are subject to final technical confirmation.
Suction cups hold the pouch walls while mechanical claws pull the zipper apart and spread the bottom gusset. The pouch is fully open before it reaches the filler.
A sensor at the opening station checks every pouch. If one is missing or hasn’t opened, the filler is blocked for that cycle, so no powder is dropped and nothing lands on the machine.
Usually not. Five pounds of protein powder needs more volume than 1,500 ml for most blends. For 5 lb pouches, our rotary premade machines take pouches up to 320 mm wide and fills up to 5 kg. Send us your pouch and we’ll check it against both.
Customers Also Interested In...
Expand your primary production footprint or seamlessly integrate your turnkey packaging facility by exploring AIPAK’s industry-proven pharmaceutical and packaging machinery lines:
Send Us Your Largest Pouch and Your Powder
Two things decide whether you need this machine rather than the smaller one. Your pouch has to be wider than 210 mm or hold more than 1,200 ml — otherwise the APK-210Z does the same job. And it has to stay within 240 mm and 1,500 ml, or you’re into rotary territory.
Send us a few empty pouches and a powder sample. We’ll open, fill and seal them and send them back, so you can check the seal and the reclose on your own pouch before you order.
- Reply within one business day
- Your pouch and powder run on the machine before you order
- Your formula and artwork stay with us
No sales calls — we reply by email or WhatsApp, whichever you gave us.
