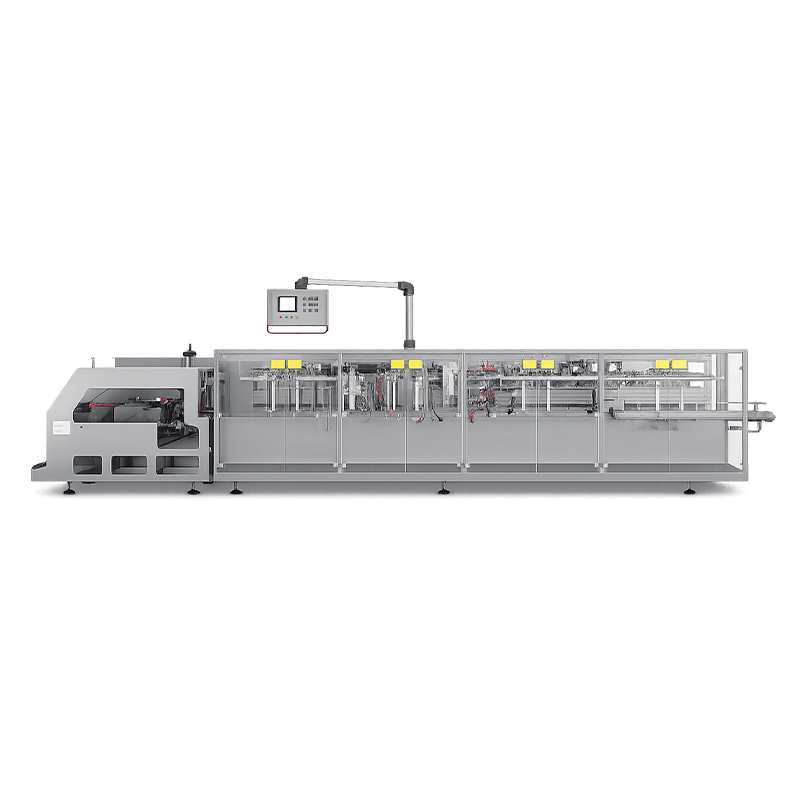

APK-280S High-Speed Duplex Horizontal Premade Pouch Filling & Sealing Machine
Production-scale horizontal packaging machine with a continuous duplex-track layout, dual synchronized filling manifolds, and 3-pair top sealing bars for up to 120 PPM leak-free production.
The APK-280S Series is a flagship duplex horizontal premade pouch packaging system that automatically handles, opens, fills, and seals flat pouches and stand-up Doypacks simultaneously. Designed for pharmaceutical plants, CMOs, and nutraceutical brands requiring maximum OEE in large-format production, it overcomes single-lane speed limits without increasing floor space.
Independent Pouch Stack: Large-capacity horizontal loading magazine matching independent mechanical extraction units to ensure flawless twin-bag extraction.
Duplex Shifting Carriage: Weight-optimized continuous horizontal walking beam engineered to smoothly transport twin pouches simultaneously at high inertia profiles.
Active Twin Pouch Opening: High-vacuum suction grids matched with double active claws that fully expand both bag mouths and bottom gussets concurrently before dropping formulation.

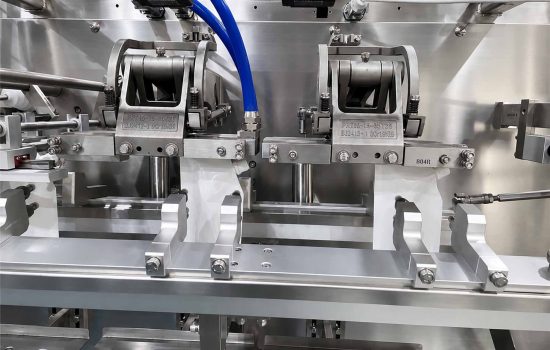

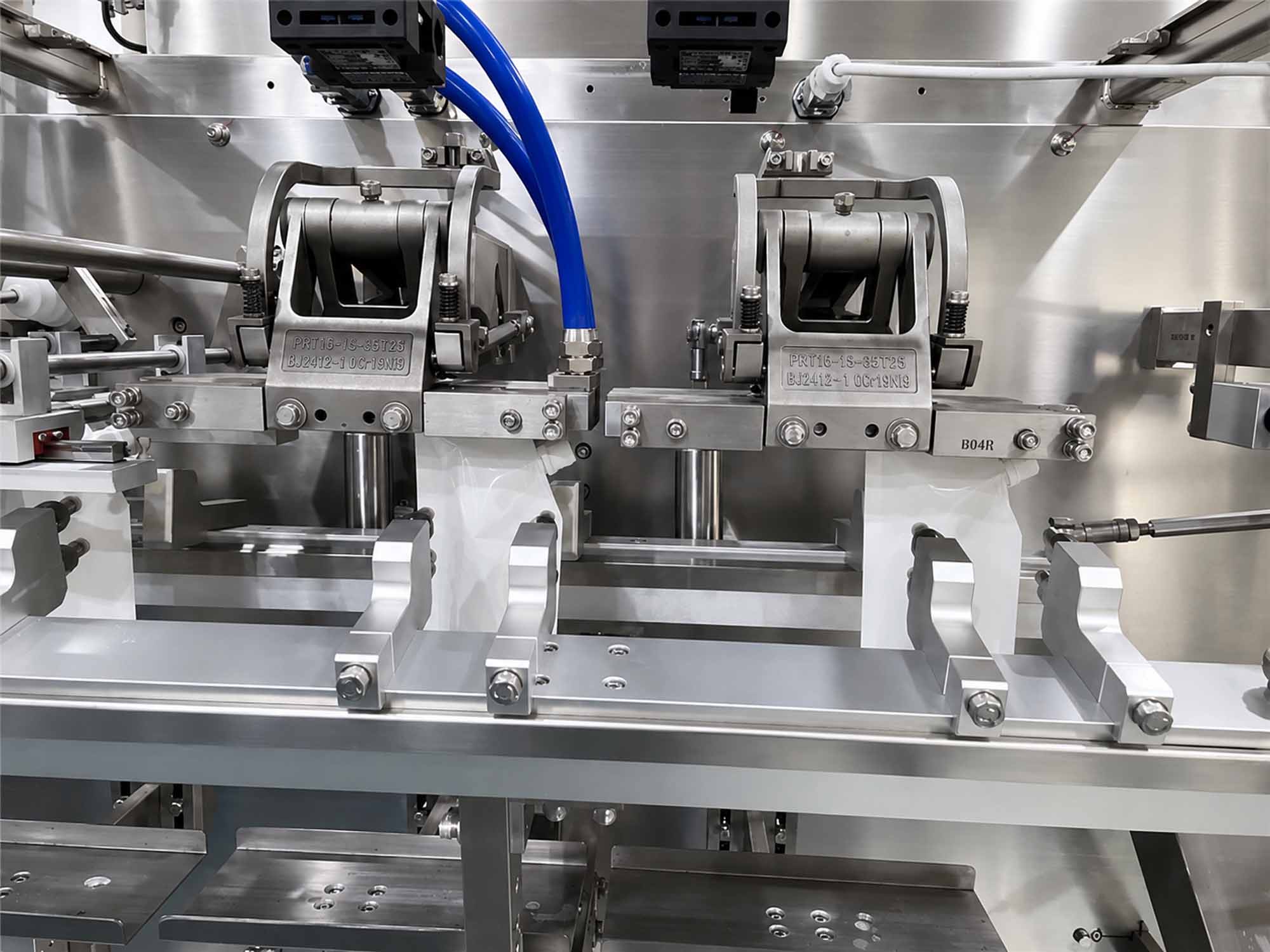

High-Throughput Duplex Tracking Layout
Built upon a true parallel twin-lane carriage framework that extracts, opens, and processes two pouches simultaneously per cycle loop. This advanced powertrain layout scales your line output capacity straight up to a maximum performance ceiling of 120 PPM while maintaining smooth, low-wear tracking kinetics.

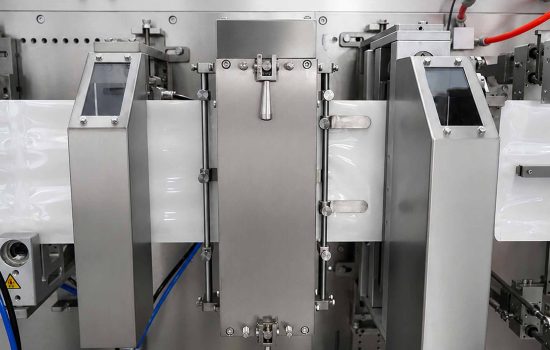

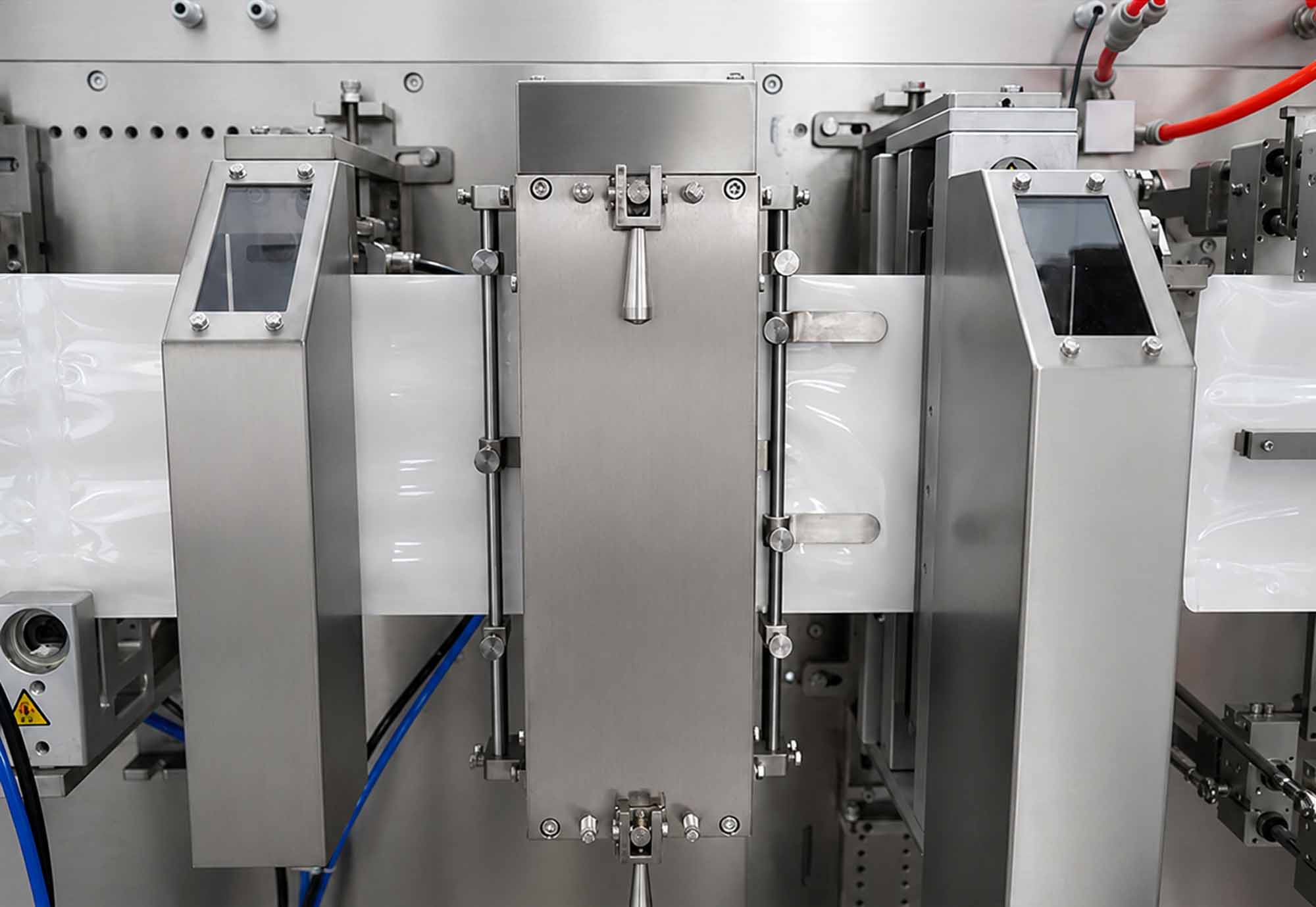

Independent Film-Unwind & Pouch Stack Extractor
Incorporates an isolated, heavy-capacity horizontal pre-made pouch magazine driven by an independent extraction drive mechanism. This ensures stable, continuous bag extraction and prevents double-pouch pulling errors across variable film thicknesses or sticky laminated pouches.

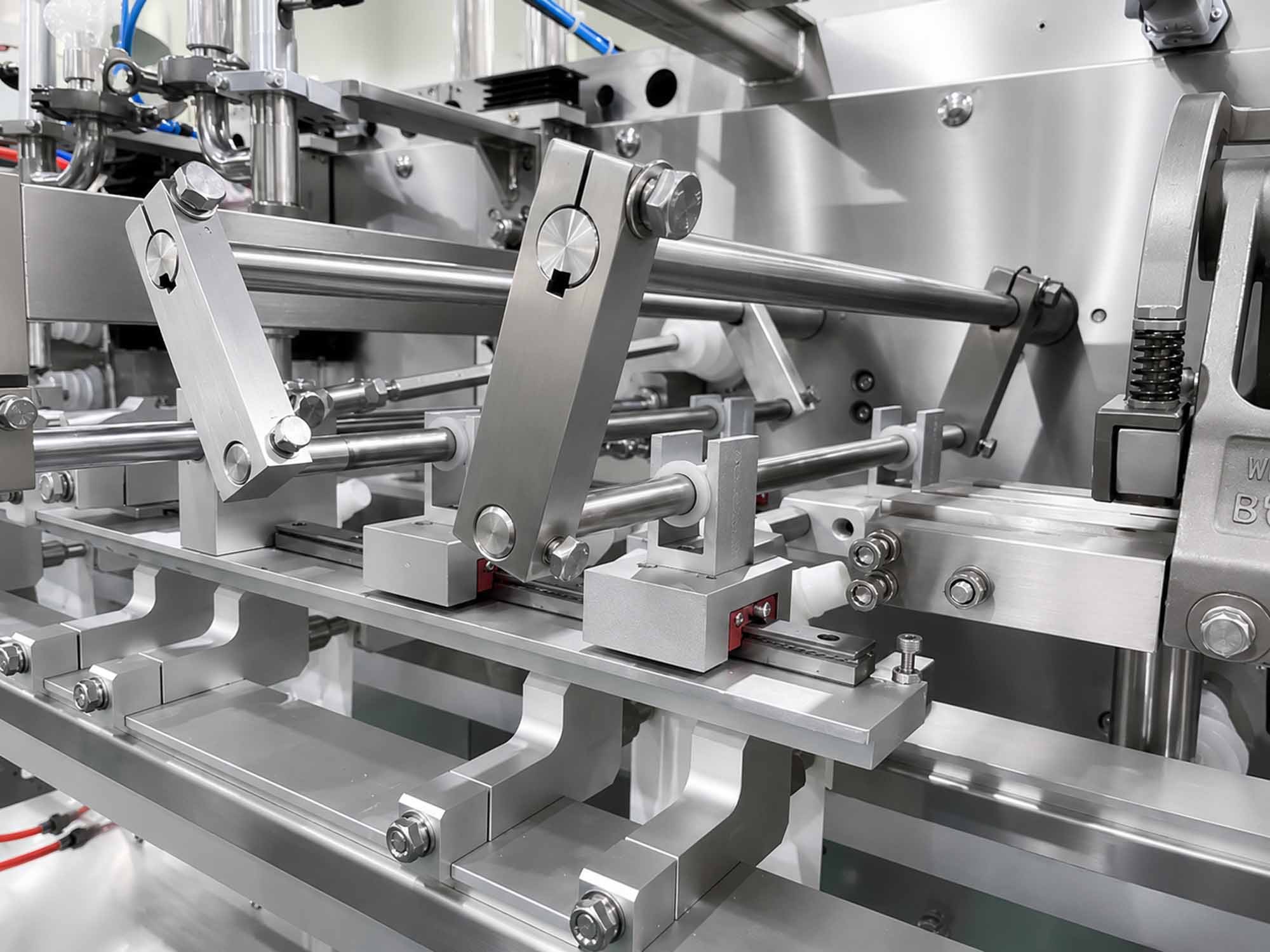

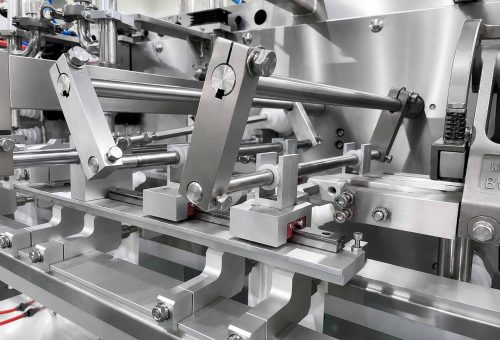

Dual Filling Station Loop Optimization
Integrates high-efficiency twin-stage inline dosing manifolds that split the physical product injection window across parallel stations. This cuts single-station vertical dosing intervals in half, allowing heavy volumes up to 800 ml to settle cleanly while ensuring extreme weight accuracy with zero product splash.

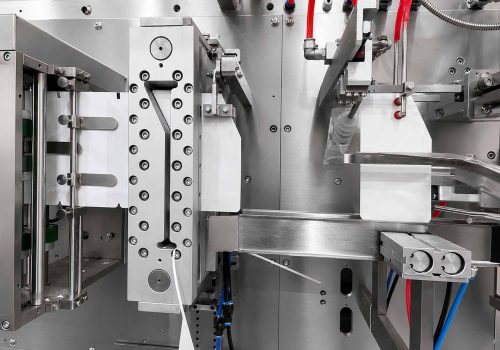

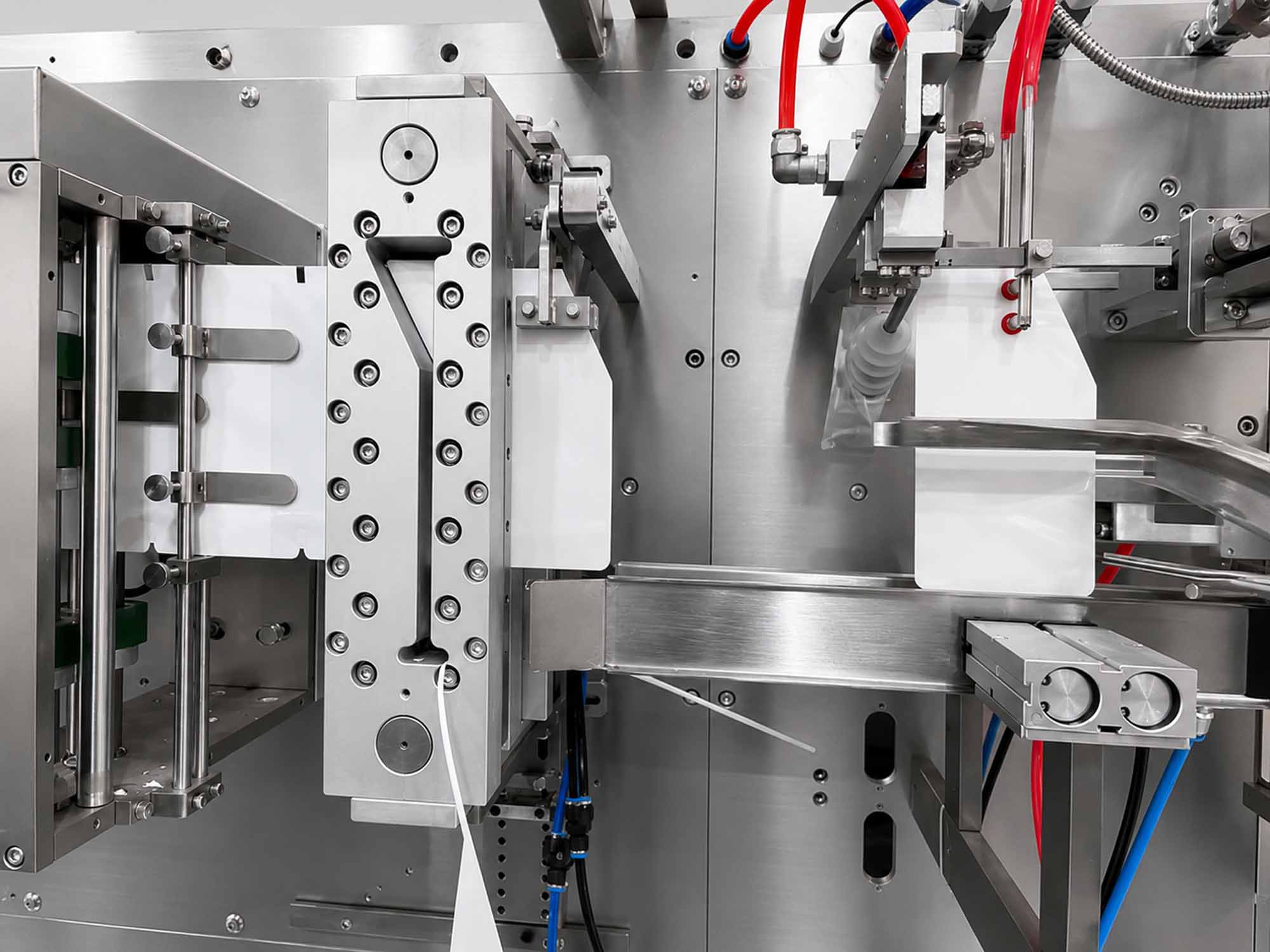

Progressive 3-Pair Top Seal Unit Assembly
Routes the filled twin pouches through three sequential pairs of independent, PID temperature-regulated hot thermal bars followed immediately by heavy cooling blocks. This achieves maximum molecular fusion of outer and inner laminate barriers, ensuring exceptionally flat, wrinkle-free pouch seams with zero leak vectors.

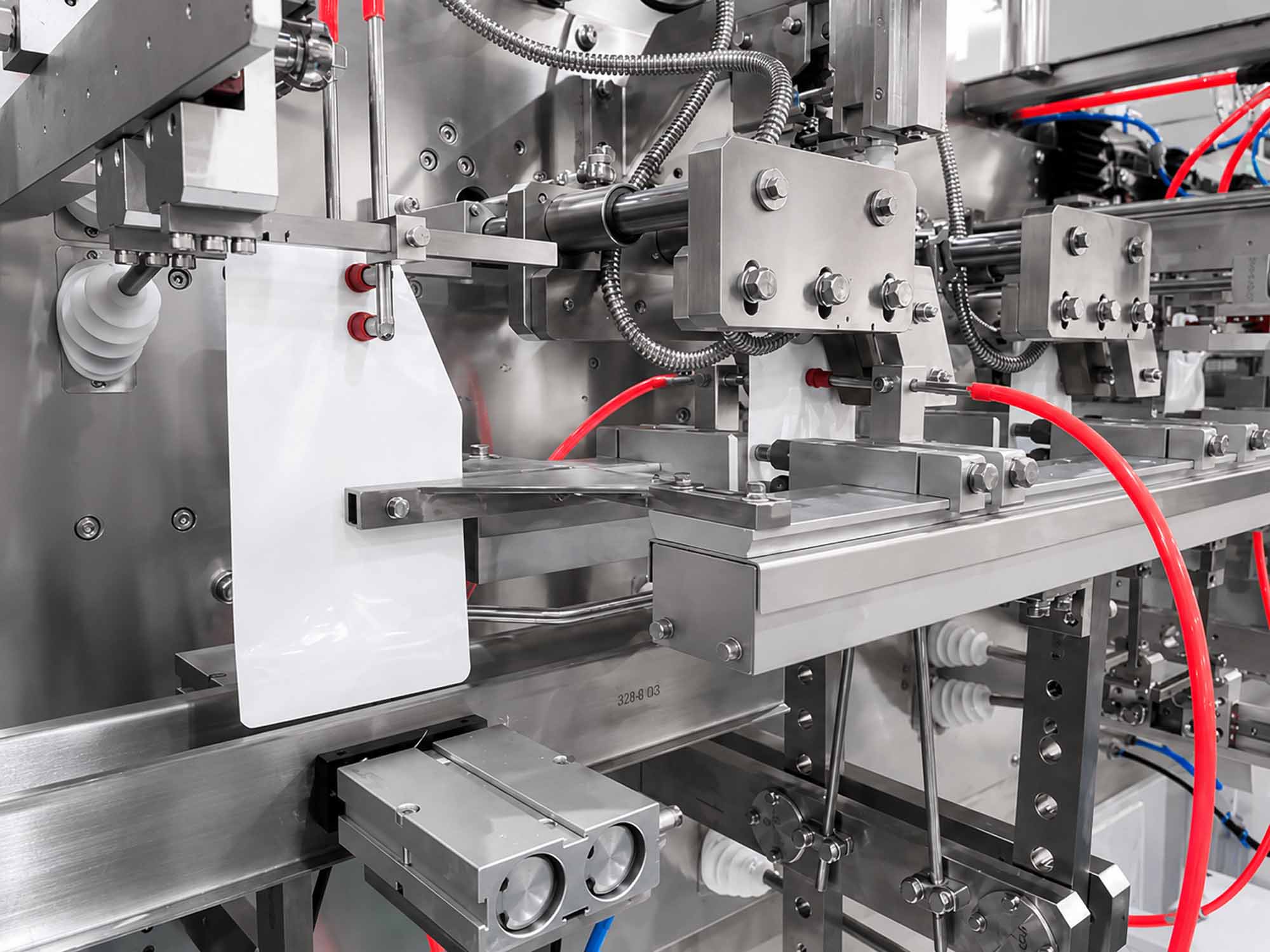

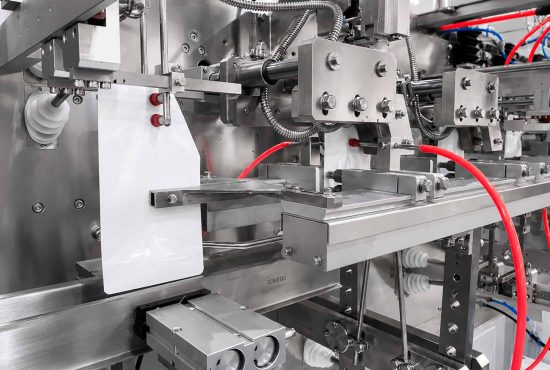

Overhead Modular Gantry Coherence
Designed with an open, open-access overhead structural deck that natively matches multiple automated dosing mechanisms. It seamlessly connects with dual-servo augers for powder, multi-head combination weighers for solids, or active piston pumps for heavy viscosity liquids, establishing an agile high-speed single floor footprint workstation.
Parallel Twin-Lane Output: Continuous duplex transport layout handling two bags concurrently to achieve high-speed outputs up to 120 PPM.
Dual-Station Dosing: High-precision parallel dosing stations designed to halve product injection times and maximize weight accuracy.
3-Pair Hot Fusion Bars: Multi-stage sequential heating array paired with cooling jaws to yield flat, high-strength aesthetic seams.
Independent Stacker Feed: Isolated high-capacity loading magazine with independent extraction mechanics preventing pouch jams.
Centralized PLC Sensory Safety: Centralized fiber-optic detection network that automatically blocks dosing if a twin-lane bag fails to open perfectly.
| Specification Parameter | APK-280S Technical Metrics |
| Model Designation | APK-280S (Horizontal Duplex High-Speed Premade Platform) |
| Supported Pouch Width Bounds | 90 mm–140 mm per lane (Dual parallel gripping tracks layout) |
| Supported Pouch Length Bounds | 110 mm–260 mm (Accommodates extended tall-profile Doypacks) |
| Maximum Operational Filling Capacity | Up to 800 ml per pouch (Optimized for production-scale packaging) |
| Maximum Stable Output Yield | 90–120 pouches/minute (Parallel twin-lane duplex index timing) |
| Total Mechanical Power Consumption | 4.5 kW (High-efficiency optimized energy-loop management) |
| Pneumatic Air Consumption Volume | 500 NL/minute (Robust pneumatic multi-valve stroke pacing) |
| Net Equipment Dead Weight | 2000 KG (Heavy-duty vibration-isolation solid steel sub-base) |
| Machine Outline Footprint (L × W × H) | 5100 × 980 × 1400 mm (Saves space compared to rotary carousels) |
| Supported Bag Packaging Formats | Flat Pouch (3/4 Side Seal), Doypack (Stand-Up), Zipper Bags |
Why Choose AIPAK？
Global Compliance Excellence Every AIPAK machine is engineered to meet and exceed international standards, including EU GMP. We provide full FAT (Factory Acceptance Testing) and comprehensive documentation support to ensure your seamless integration.
Decades of Engineering Expertise With over 15 years of specialization in pharmaceutical packaging and processing, we don’t just sell machines; we provide optimized production solutions tailored to your specific dosage forms and material characteristics.
U.S.Focused Technical Support We understand the urgency of production uptime. AIPAK provides 9am to 11pm Eastern, Monday to Friday remote technical assistance and localized support strategies for the North American market, ensuring expert help is always a video call away.
Factory-Direct Value By working directly with AIPAK, you benefit from factory-direct pricing without middleman markups, coupled with the ability to request custom modifications to suit your unique facility requirements.
Production Applications
Thanks to its heavy-duty mechanical gripping scale and continuous duplex parallel processing capability, the APK-280S delivers high-speed automated precision across diverse fields:
Product Technical FAQ for APK-280S Premade Pouch Filling Machine
Traditional machines use a single mechanical grip per walking beam index. The APK-280S integrates a continuous parallel twin-lane carriage that extracts, opens, doses, and seals two pouches at the exact same time. By keeping mechanical speeds steady while splitting product filling and top sealing across dual stations, it reaches 120 PPM easily with zero loss in weight precision or seal closure quality.
Standard loaders stack bags inside the main machine chassis where vibration from the sealing jaws can displace them, leading to misfeeds. The APK-280S utilizes an independent premade pouch stack unit isolated from the main drive vibration. This configuration stabilizes bag extraction, ensures smooth pneumatic suction handover, and avoids double-bag pull failures completely.
Dropping heavy product volumes in a single quick step creates air pockets, powder dust clouds, or cream splashes that foul the bag rim. The APK-280S routes pouches sequentially under two distinct filling stations. Station 1 drops the core volume, and Station 2 tops off the remainder. This layout cuts vertical dosing intervals in half, prevents product splash, and improves overall accuracy.
It indexes the filled twin bag necks through three separate pairs of independent, PID temperature-controlled heating bars. This progressive heating pattern thoroughly fuses the inner plastic laminate layers without overheating the outer film face, followed immediately by cooling jaws to set a pristine, wrinkle-free hermetic seal.
The duplex line features independent fiber-optic sensory tracking loops at each opening station. If a bag on either Lane 1 or Lane 2 fails to open completely, its corresponding dosing nozzle is instantly locked for that cycle loop. This prevents any product waste or cleanroom conveyor contamination while keeping the other lane running normally.
