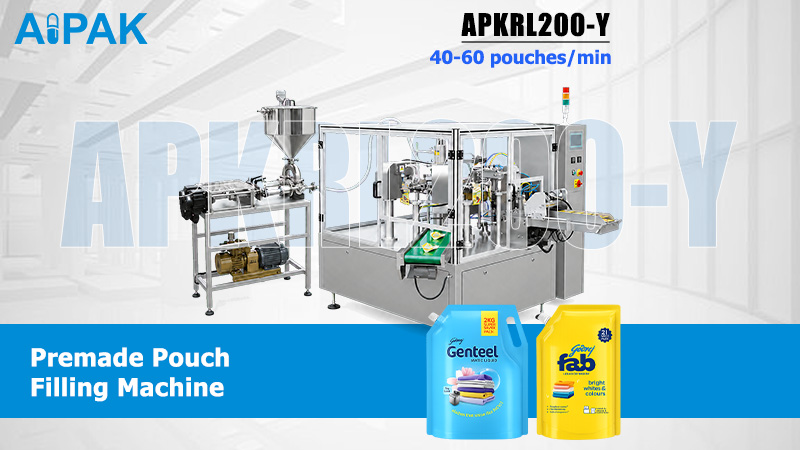

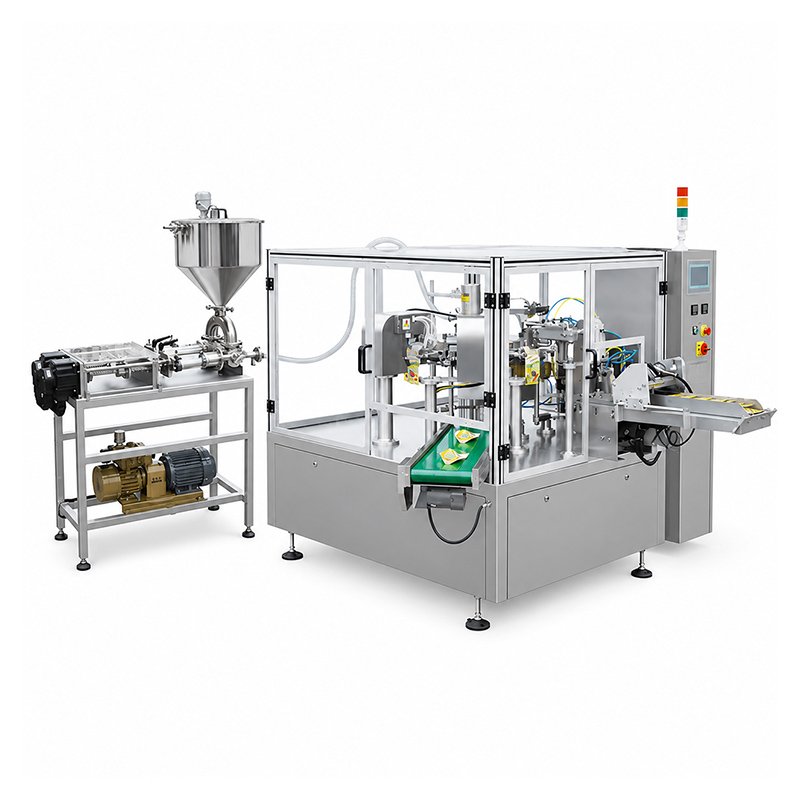

APKRL200-Y Automatic Rotary Vacuum Premade Pouch Filling & Sealing Machine

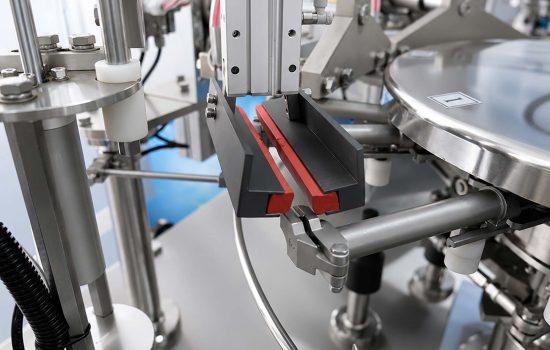

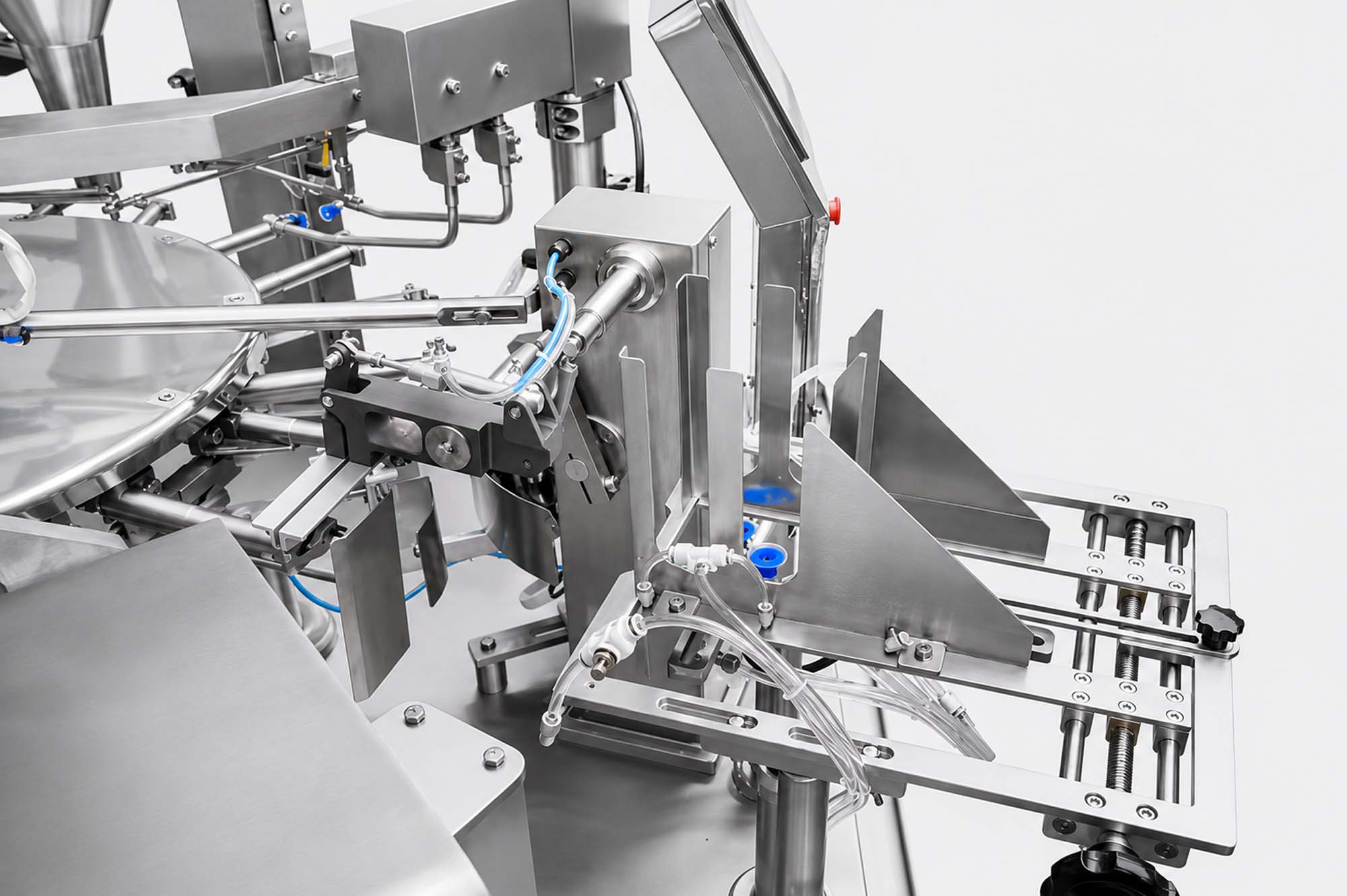

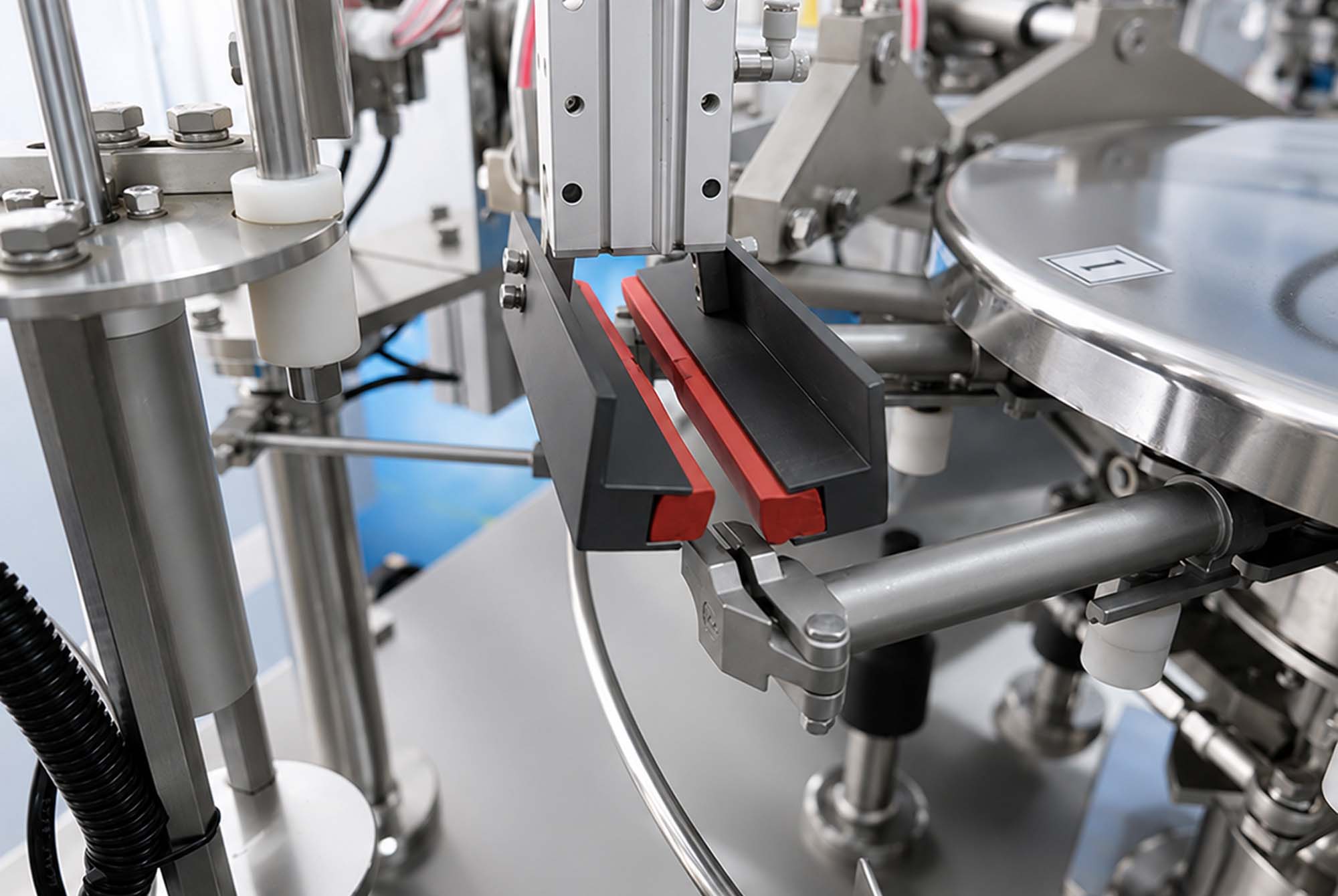

Standard linear vacuum machines require a stop-start cycle for each chamber, while single-turntable designs force filling and vacuum to compete for the same carousel space. By physically separating these into the Filling Carousel and the Vacuum Wheel, we achieve a constant-motion pipeline. This eliminates the “wait-time” during chamber deaeration, allowing the machine to maintain a steady 40-60 PPM rhythm. Furthermore, by keeping the filling gantry clear of vacuum debris, we reduce unscheduled downtime for cleaning by approximately 40% compared to integrated rotary systems.

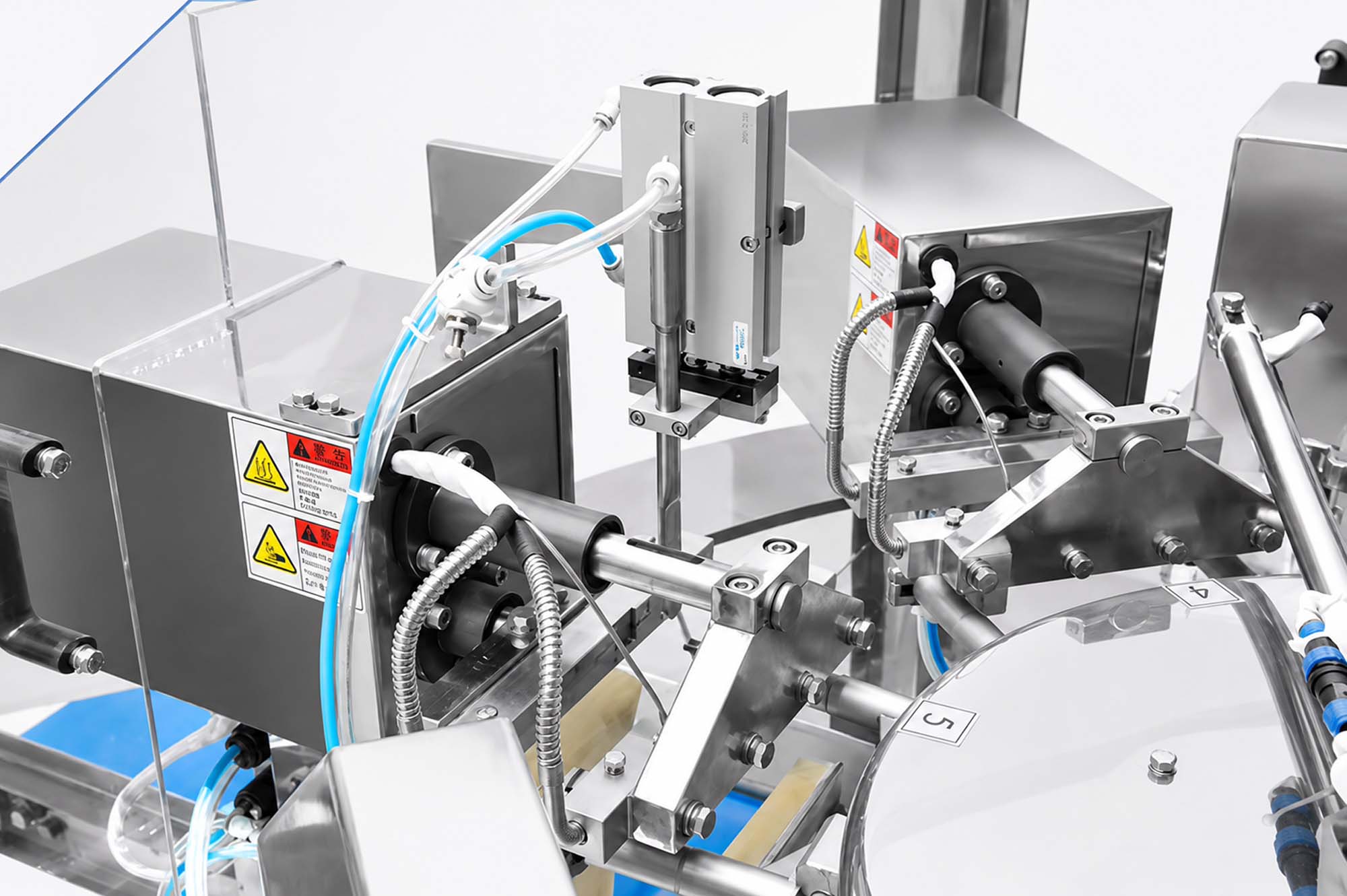

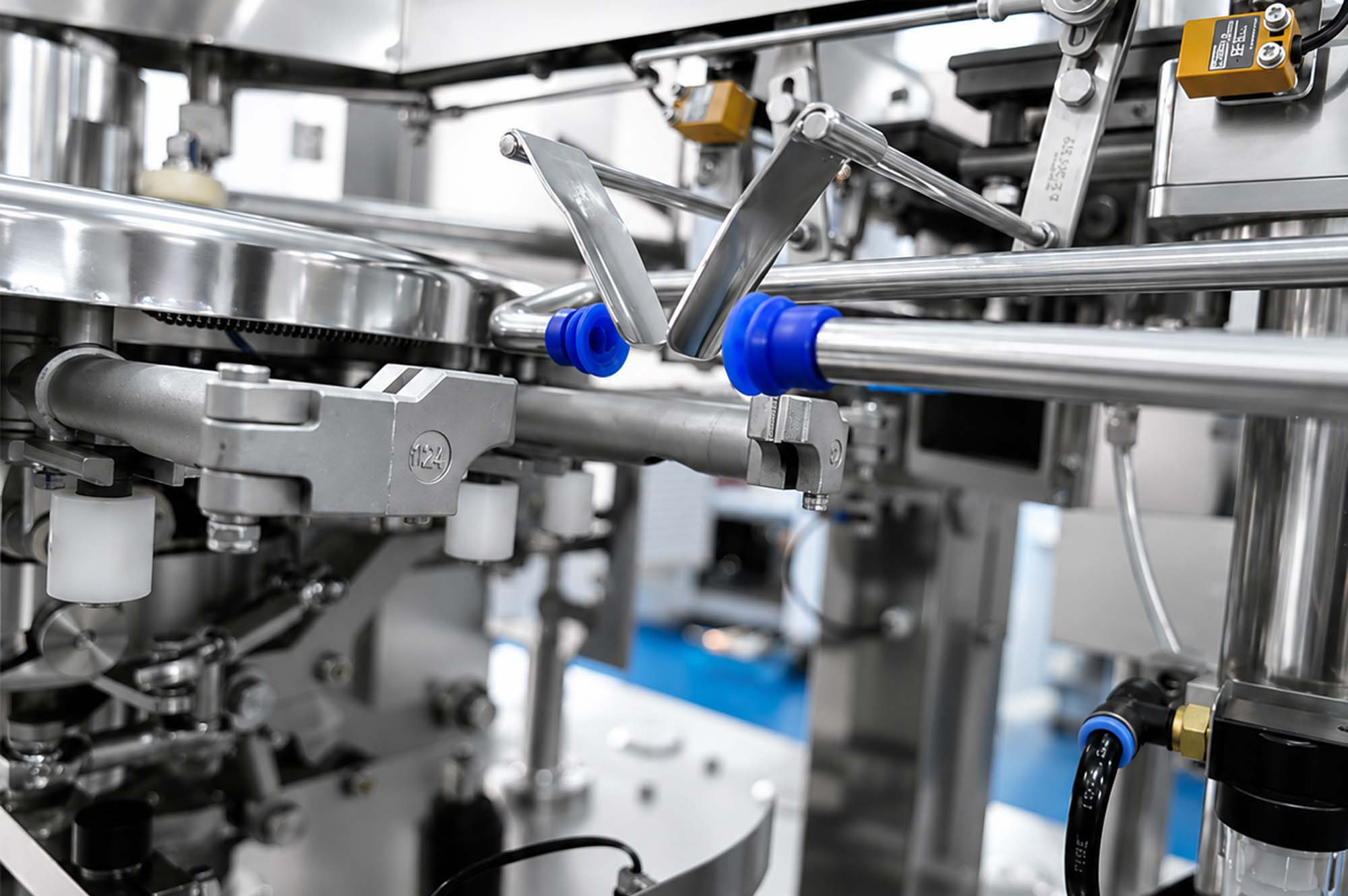

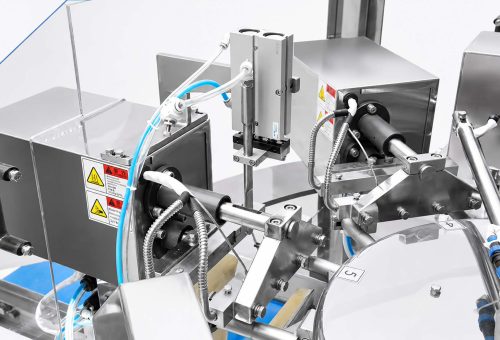

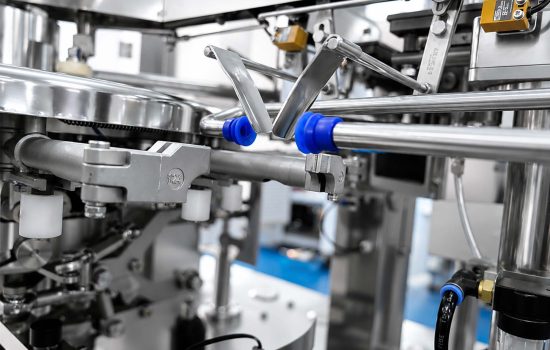

Atmospheric heat sealing often struggles with “micro-channeling” when sealing through thick, multi-layer foil laminates, especially when ambient air pressure is high. Inside our vacuum cells, the air is evacuated first, eliminating internal pressure that would otherwise resist the seal. The impulse jaws then apply high-frequency thermal energy followed by instantaneous cold-setting. This “deaerated-welding” creates a molecular bond rather than a surface melt, resulting in a hermetic seam that can withstand significant drops and internal pressure without delamination.

We use a dual-stage safety strategy. First, the filling nozzle is precision-engineered to retract only after a high-speed pneumatic cut-off, ensuring no droplets tail off the nozzle. Second, since the filling carousel operates at atmospheric pressure, the product has a stable “settling time” before the pouch is transferred. The transfer arm uses high-inertia damping to move the bag without swaying, ensuring the product stays at the bottom of the pouch, leaving the sealing zone pristine and ready for vacuum-ready hermetic closure.

Yes. The APKRL200-Y control system is designed for high-end validation. It supports cGMP-ready PLC logic that logs cycle data, including chamber vacuum levels, sealing temperatures, and dwell times per batch. We offer an optional “Audit Trail” software module that exports production data for every single pouch, allowing for full batch traceability. The machine’s architecture is fully “open-frame,” with no dead corners, making it compatible with high-pressure CIP/SIP (Clean-in-Place) protocols commonly required in pharmaceutical manufacturing.

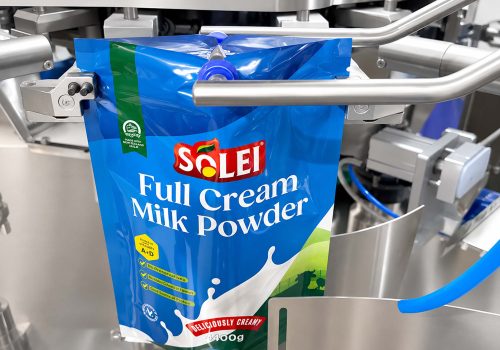

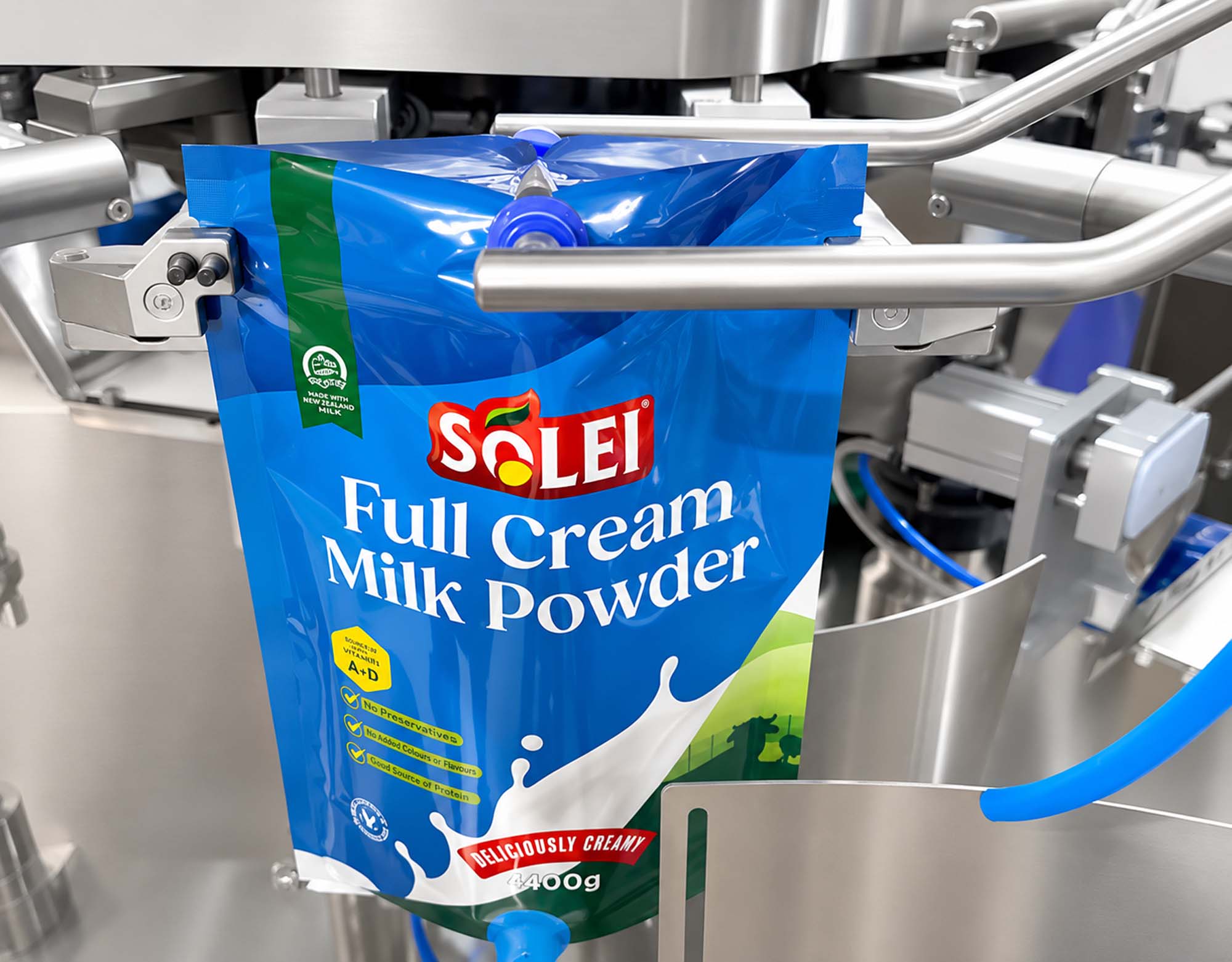

Static discharge is a major hurdle for high-speed pouch loaders. The APKRL200-Y uses a two-pronged solution: an active ionization bar installed at the magazine exit, and a mechanical “pouch-fan” system. The mechanical extraction claws utilize a “peel-off” motion rather than a straight pull, which breaks the vacuum seal between two static-clung pouches. If the sensor detects a double-thickness at the opening station, the PLC instantly halts the vacuum index, ensuring no incorrectly opened pouches reach the sealing stage.

The toggle linkages are manufactured from heat-treated, chrome-molybdenum alloy steel, specifically selected for high-stress cyclic movement under high-vacuum load. These components are sealed in a high-temperature lubricant bath that is rated for 20,000 hours of continuous operation before major maintenance is required. All linkage pivot points utilize self-lubricating, maintenance-free bronze bushings, minimizing the need for manual grease intervention and preventing potential cross-contamination in the cleanroom.
