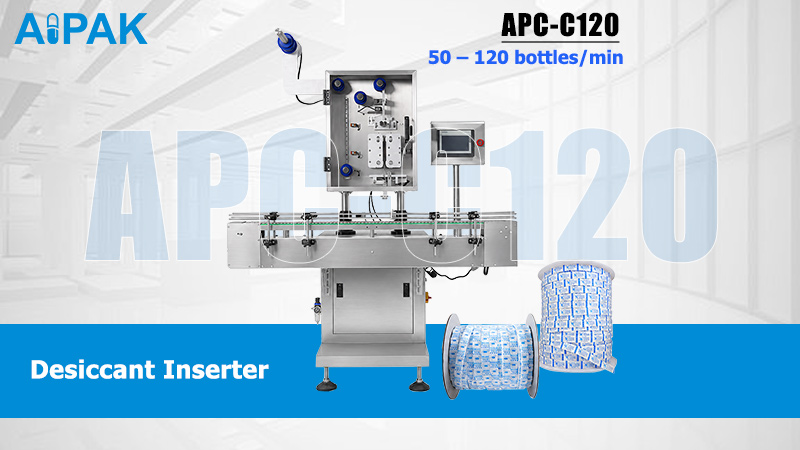

APC-C120 Desiccant Inserter

The APC-C120 drops a desiccant into each bottle after counting and before capping. It runs 50 to 120 bottles a minute on one discharge outlet. If your product needs moisture control and someone is dropping desiccants in by hand, this is the station that replaces them.

  • Output— 50 to 120 bottles per minute
  • One insert per bottle— bottle sensing means no bottle, no dispense
  • Matched to your counter— keeps up with 16 and 24-channel counting machines

Factory supply|Lead time confirmed in your quote|Installation and training available|Spare parts listed in your quote

Is this the right machine for you?

✓ This is a fit if…

✕ Look elsewhere if…

Technical specification

Parameter

Value

What this means for you

Output

50 – 120 bottles / min

Keeps up with a 16 or 24-channel counter

Discharge outlets

1

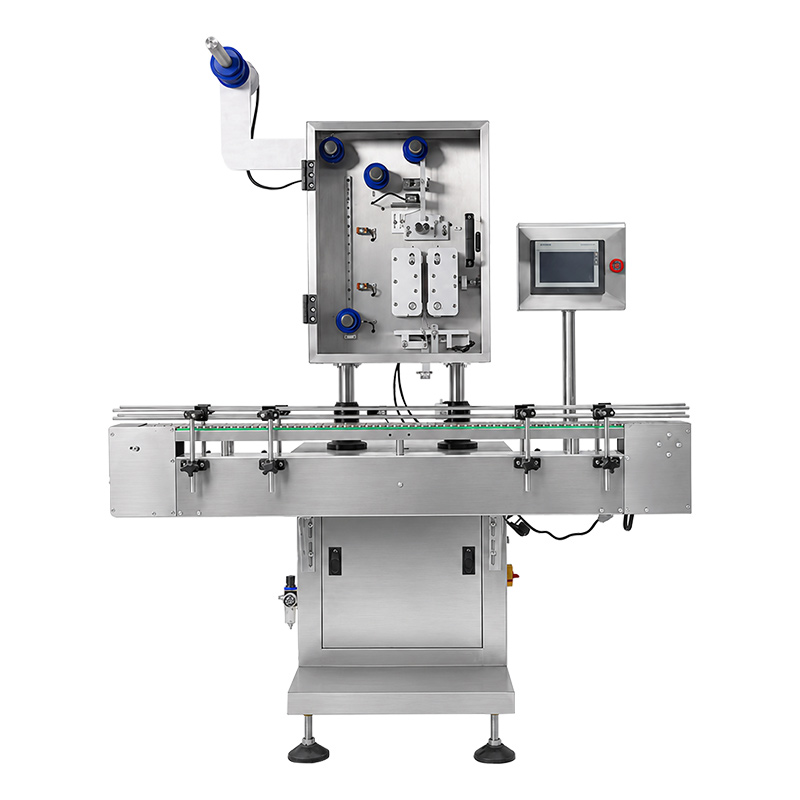

Faster line? See the APC-C120D

Insertion trigger

Bottle sensing

A gap in the bottle stream costs you nothing

Desiccant format

Desiccant pouches on a continuous rol

Canisters run on a different machine. Ask us

Desiccant size range

L: 30–60 mm, W: 20–40 mm

Send a sample and we’ll confirm

Minimum bottle neck

Inner Diameter ≥ Φ20 mm

Neck diameter matters more than bottle size

Changeover

Hand adjustment, no tools

See the changeover table below

Power

1.5 kW, 60 Hz

Built to your U.S. supply. We confirm the voltage with your quote

Compressed air

0.5 – 0.7 MPa (70-100 psi)

—

Footprint

1500 x 800 x 1600 mm

Add clearance for loading the desiccant roll

Weight

250 kg

—

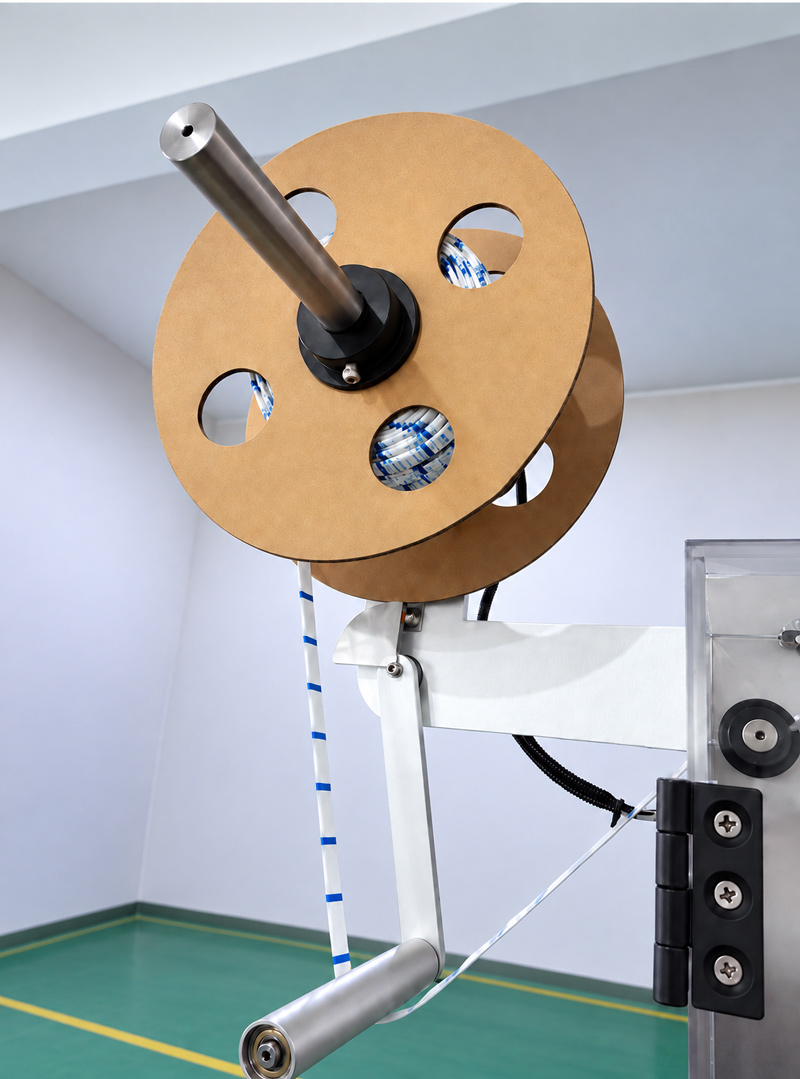

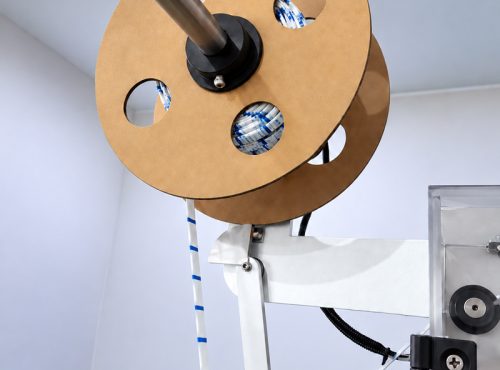

Bottle sensing

The machine dispenses when a bottle is under the head. No bottle, no dispense. A gap in the bottle stream costs you nothing — no desiccant on the conveyor, and no one clearing it off before the next bottle passes.

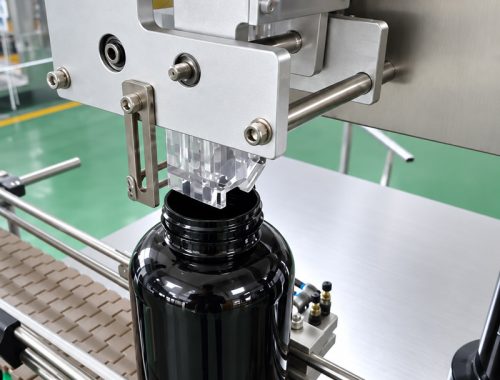

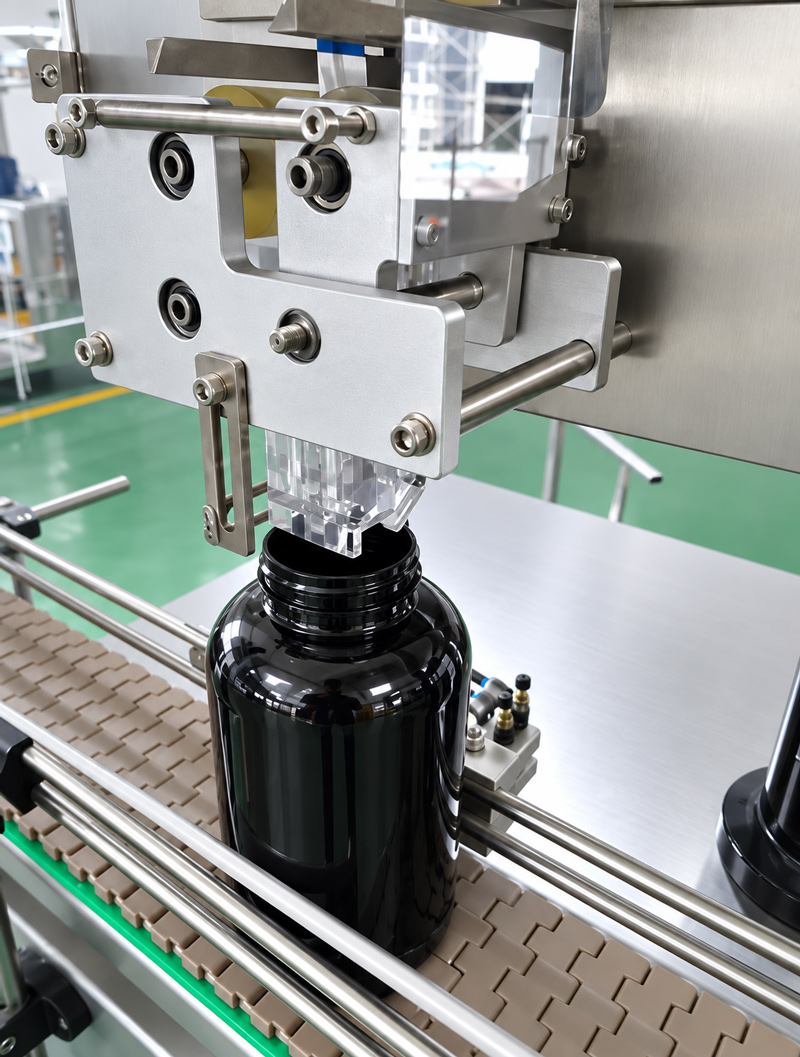

One outlet, matched to your line

One discharge outlet places one desiccant per bottle. That covers 50 to 120 bottles a minute. Outlet count is set when the machine is built. It cannot be added later.

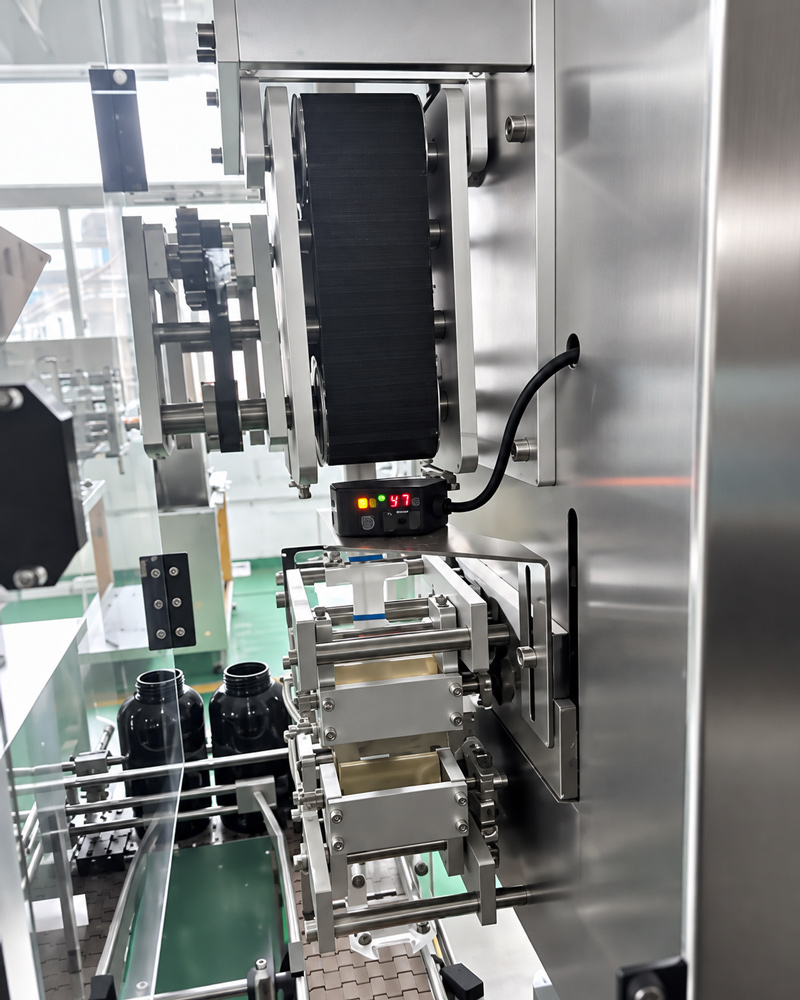

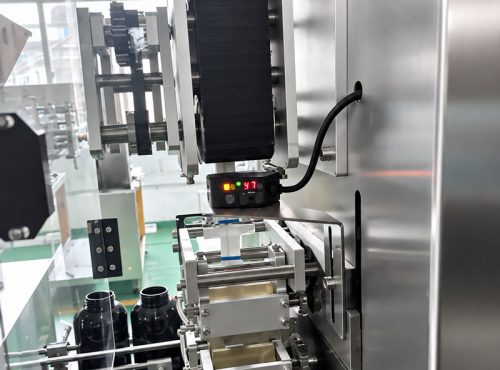

Indexed to the conveyor

The insertion cycle follows conveyor motion, not its own timer. When the counter pauses, this station pauses with it.

Ideal Applications & Industries

Probiotic capsules

Viability is measured against a moisture spec. The desiccant is part of how your product holds its count to the end of shelf life.

Gummy vitamins

Gummies pick up moisture and stick together. A desiccant slows that down inside a closed jar.

Fish oil and softgel products

Softgel shells soften as they take up water. Moisture control keeps them separate in the bottle.

What changing over involves

What you changed

What gets adjusted

Roughly how long

Same desiccant, different product

Nothing on this machine

0 min

Bottle changes, desiccant stays

No change parts required; fast tool-less adjustment via hand cranks.

15-30mins

Desiccant format changes

Change parts required

15-30min

On a full line the counter, the capper and the labeler all adjust too. Ask us for the line number, not just this one.

Three things to check before you buy any desiccant inserter

01

Whether it runs your desiccant

Pouches on a roll and loose canisters run on different machines. A roll-fed inserter cuts each pouch at the print mark, so your pouch size, mark position and roll core all have to suit it. Send the supplier a roll of the desiccant you actually use, and ask them to run it before you order.

02

How it knows a pouch went in

A bottle that leaves this station without a desiccant looks exactly like one that has it, until the product picks up moisture on the shelf. Ask how the machine detects a missed or half-cut pouch, and what happens to that bottle.

03

Whether it keeps up with your counter

A desiccant station slower than your counting machine sets the speed of your whole line. Ask for the rate on your bottle and your pouch, not the brochure number. And ask whether a second outlet can be added later or has to be ordered now.

Why Choose AIPAK?

One Point of Contact

One project engineer handles your inserter from proposal to commissioning, and the rest of your bottling line if it comes from us. You’re not chasing five suppliers for one answer.

We Run Your Bottles and Desiccant Before You Order

Send us your bottles and a roll of your desiccant. We run them on the machine and send you the video. You decide whether to talk quotes after that.

A U.S. Number, Answered by Us

+1 (213) 526-8644, answered by our engineers 9 AM–7 PM China time, Monday to Friday. That’s evening and overnight in the U.S., so leave a message or send a WhatsApp anytime and we’ll pick it up first thing.

Spare Parts and Lead Time, in Writing

A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.

FAQ

How much does a desiccant inserter cost?

It depends on your desiccant format and your line speed. Send us a roll of your desiccant and your bottles per minute. We don’t publish a list price because configuration changes it.

How long is the lead time?

It depends on the configuration. The lead time is confirmed in writing in your quote, along with the spare parts list.

Do you supply the desiccants?

No. Your desiccant supplier does. We set the machine up for the pouch you already use.

What happens if a bottle misses its desiccant?

The machine checks each insertion and alarms if a pouch doesn’t go in, so your operator can pull that bottle before it’s capped. If your QA plan needs the bottle rejected automatically, tell us and we’ll confirm it in your quote.

Does it run on U.S. power?

Yes. We build to your U.S. supply at 60 Hz and confirm the voltage with your quote.

How fast does this station need to be?

Fast enough to keep up with your counter. Nothing more. The counter sets your line speed. Every station after it follows.

Are your machines electrically certified for the U.S.?

Yes. Our machines are certified and use certified electrical components. Because the exact scope depends on the model and electrical configuration you select, our factory confirms it in writing before production.

How do spare parts work?

A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.

Customers Also Interested In...

Send us your desiccant and your bottle.

Desiccant size decides the feeding setup. Bottle neck decides whether it drops cleanly. No two suppliers make quite the same desiccant, so a sample tells us more than a spec sheet.

Post us a handful with a bottle and we’ll run them before quoting.
