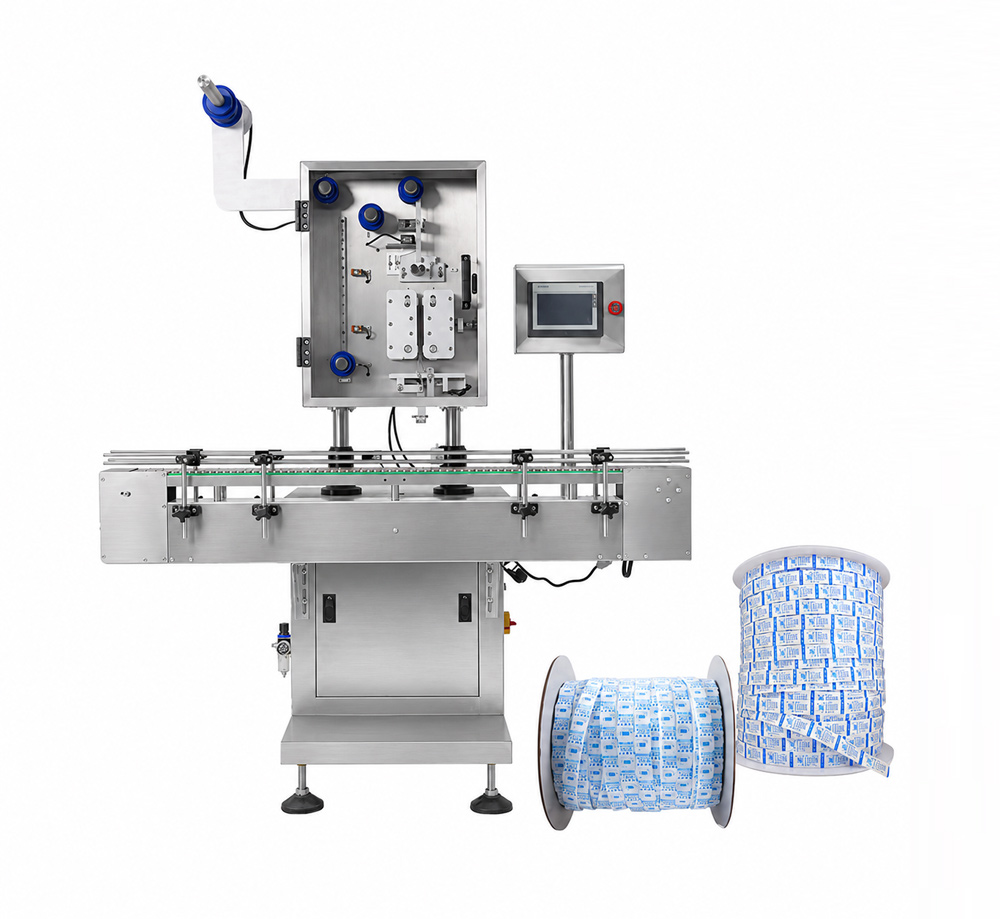

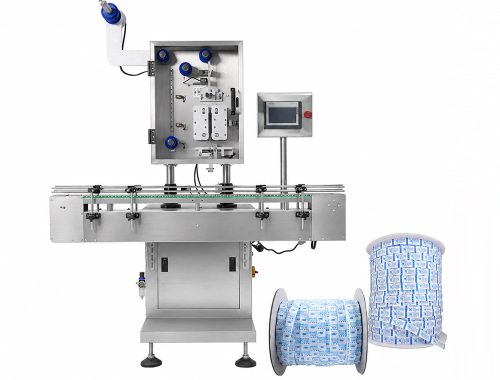

APC-C120D High Speed Desiccant Inserter
The APC-C120D has two discharge outlets instead of one. It runs 80 to 200 bottles a minute. If your counter is 32 or 48 channels, a single-outlet inserter caps your line speed below what the counter can deliver.
- Output— 80 to 200 bottles per minute
- Two outlets — twice the capacity of a single-outlet station
- Fixed at build— outlet count cannot be added later
Factory supply|Lead time confirmed in your quote|Installation and training available|Spare parts listed in your quote
Is the APC-C120D High Speed Desiccant Inserter for you?
✓ This is a fit if…
- Your counter is 32 or 48 channels
- Your line runs faster than 120 bottles a minute
- You expect line speed to rise within a few years
- Your product needs a desiccant
✕ Look elsewhere if…
- Your line runs under 120 bottles a minute → the APC-C120 does the same job for less. Buy that one
- Your counter is 16 or 24 channels → same answer. You will not use this capacity
- You need cotton → different machine. See the APC-S120, Below 120 bottles a minute we'd rather sell you the single-outlet model.
Technical specification
Parameter | Value | What this means for you |
Output | 80 – 200 bottles / min | Stays ahead of a 48-channel counter |
Discharge outlets | 2 | Cannot be added to a single-outlet machine later |
Insertion trigger | Bottle sensing | Both outlets sense independently |
Desiccant format | Desiccant pouches on a continuous roll | Canisters run on a different machine. Ask us |
Desiccant size range | L: 30–60 mm, W: 20–40 mm | Send a sample and we’ll confirm |
Minimum bottle neck | Inner Diameter ≥ Φ20 mm | Neck diameter matters more than bottle size |
Changeover | Hand adjustment, no tools | See the changeover table below |
Power | 1.5 kW, 60 Hz | Built to your U.S. supply. We confirm the voltage with your quote |
Compressed air | 0.5 – 0.7 MPa (70-100 psi) | — |
Footprint | 1500 x 800 x 1600 mm | Add clearance for loading the desiccant roll |
Weight | 250 kg | — |

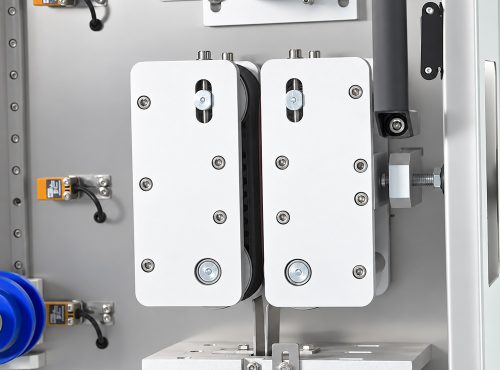

Two outlets
Two discharge outlets share the cycle. The station places a desiccant more often per metre of conveyor. Output rises to 200 bottles a minute.
Built for 32 and 48-channel lines
A 32-channel counter runs to 120 bottles a minute. A 48-channel counter runs to 150. A single-outlet inserter cannot follow either at the top. This one can.
Fixed at build
Outlet count is set when the machine is made. You cannot add a second outlet in three years. If your line speed is likely to rise, that belongs in this decision now.
Ideal Applications & Industries
High-speed supplement bottling
Lines built around a 32 or 48-channel counter, where a single-outlet station would cap output.
Contract packing at volume
Line speed decides how many client orders fit into a shift.
Brands planning for growth
You buy the counter for the line you want in three years. The inserter should match it.
What changing over involves
|
What you changed |
What gets adjusted |
Roughly how long |
|
Same desiccant, different product |
Nothing on this machine |
0 min |
|
Bottle changes, desiccant stays |
No change parts required; fast tool-less adjustment via hand cranks. |
15-30mins |
|
Desiccant format changes |
Change parts required |
15-30min |
On a full line the counter, the capper and the labeler all adjust too. Ask us for the line number, not just this one.
Three things to check before you buy any desiccant inserter
Whether it runs your desiccant
Pouches on a roll and loose canisters run on different machines. A roll-fed inserter cuts each pouch at the print mark, so your pouch size, mark position and roll core all have to suit it. Send the supplier a roll of the desiccant you actually use, and ask them to run it before you order.
How it knows a pouch went in
A bottle that leaves this station without a desiccant looks exactly like one that has it, until the product picks up moisture on the shelf. Ask how the machine detects a missed or half-cut pouch, and what happens to that bottle.
Whether it keeps up with your counter
A desiccant station slower than your counting machine sets the speed of your whole line. Ask for the rate on your bottle and your pouch, not the brochure number. And ask whether a second outlet can be added later or has to be ordered now.
Why Choose AIPAK?
One Point of Contact
One project engineer handles your inserter from proposal to commissioning, and the rest of your bottling line if it comes from us. You’re not chasing five suppliers for one answer.
We Run Your Bottles and Desiccant Before You Order
Send us your bottles and a roll of your desiccant. We run them on the machine and send you the video. You decide whether to talk quotes after that.
A U.S. Number, Answered by Us
+1 (213) 526-8644, answered by our engineers 9 AM–7 PM China time, Monday to Friday. That’s evening and overnight in the U.S., so leave a message or send a WhatsApp anytime and we’ll pick it up first thing.
Spare Parts and Lead Time, in Writing
A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.
FAQ
It depends on your desiccant format and your line speed. Send us a roll of your desiccant and your bottles per minute. We don’t publish a list price because configuration changes it.
It depends on the configuration. The lead time is confirmed in writing in your quote, along with the spare parts list.
No. Your desiccant supplier does. We set the machine up for the pouch you already use.
The machine checks each insertion and alarms if a pouch doesn’t go in, so your operator can pull that bottle before it’s capped. If your QA plan needs the bottle rejected automatically, tell us and we’ll confirm it in your quote.
Yes. We build to your U.S. supply at 60 Hz and confirm the voltage with your quote.
Fast enough to keep up with your counter. Nothing more. The counter sets your line speed. Every station after it follows.
Yes. Our machines are certified and use certified electrical components. Because the exact scope depends on the model and electrical configuration you select, our factory confirms it in writing before production.
A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.
Customers Also Interested In...
Tell us your counter first.
Two outlets are worth buying only if your counter can deliver more than 120 bottles a minute. Below that, the single-outlet APC-C120 does the same job for less. We’d rather tell you that now.
Send us your counter model or channel count, plus a desiccant sample.
