APC-Z120 Rayon Inserter
The APC-Z120 inserts rayon or paper fill material at 20 to 160 bottles a minute. It does the same job as cotton with one difference. Rayon does not absorb moisture. If your bottle also has a desiccant, that difference matters.
- Output— 20 to 160 bottles per minute
- Non-absorbent— rayon leaves your desiccant to do its job
- Double head— two heads share the cycle
Factory supply|Lead time confirmed in your quote|Installation and training available|Spare parts listed in your quote
Is the APC-Z120 Rayon Inserter for you?
✓ This is a fit if…
- Your line runs faster than 50 bottles a minute
- Your bottle also takes a desiccant
- Your product is moisture-sensitive
- Your bottles are part-filled and product moves
✕ Look elsewhere if…
- Your label or spec says cotton → then it says cotton. See the APC-S120
- Your bottles are filled to the shoulder → you may not need fill material at all
- Your bottle neck is under 18 mm → the insert folds. Send us the bottle first
Technical specification
Parameter | Value | What this means for you |
Output | 20 – 160 bottles / min | Three times a cotton station. Rarely your bottleneck |
Insertion heads | 2 | Two heads share the cycle |
Fill material | Rayon or paper, on a coil | Non-absorbent. Does not compete with your desiccant |
Inserts per bottle | 1 – 3 pieces per bottle | Matters on tall bottles |
Minimum bottle neck | Inner Diameter ≥ Φ18 mm | — |
Changeover | Hand adjustment, no tools | See the changeover table below |
Power | 60 Hz, built to your U.S. supply | We confirm the voltage and power with your quote |
Compressed air | 0.5 – 0.7 MPa (70-100 psi) | — |
Footprint | 1500 x 800 x 1600 mm | Add clearance for loading the coil |
Weight | 250 kg | — |
Two heads
Two insertion heads share the cycle. Each head gets a full index to draw, cut and insert. Output reaches 160 bottles a minute without handling the material faster.
Non-absorbent material
Cotton is a natural fiber. It takes up moisture from the bottle headspace. In a bottle with a desiccant, the two compete for the same water. Your desiccant spends its capacity on the cotton, not on your product. Rayon is synthetic. It does not.

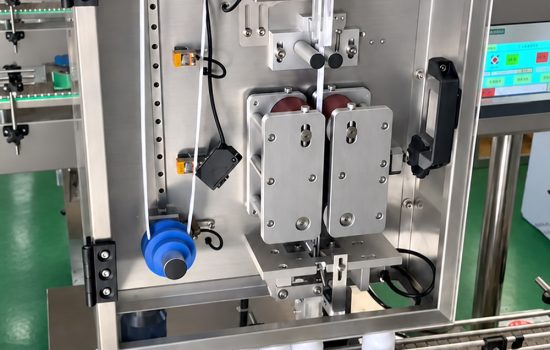

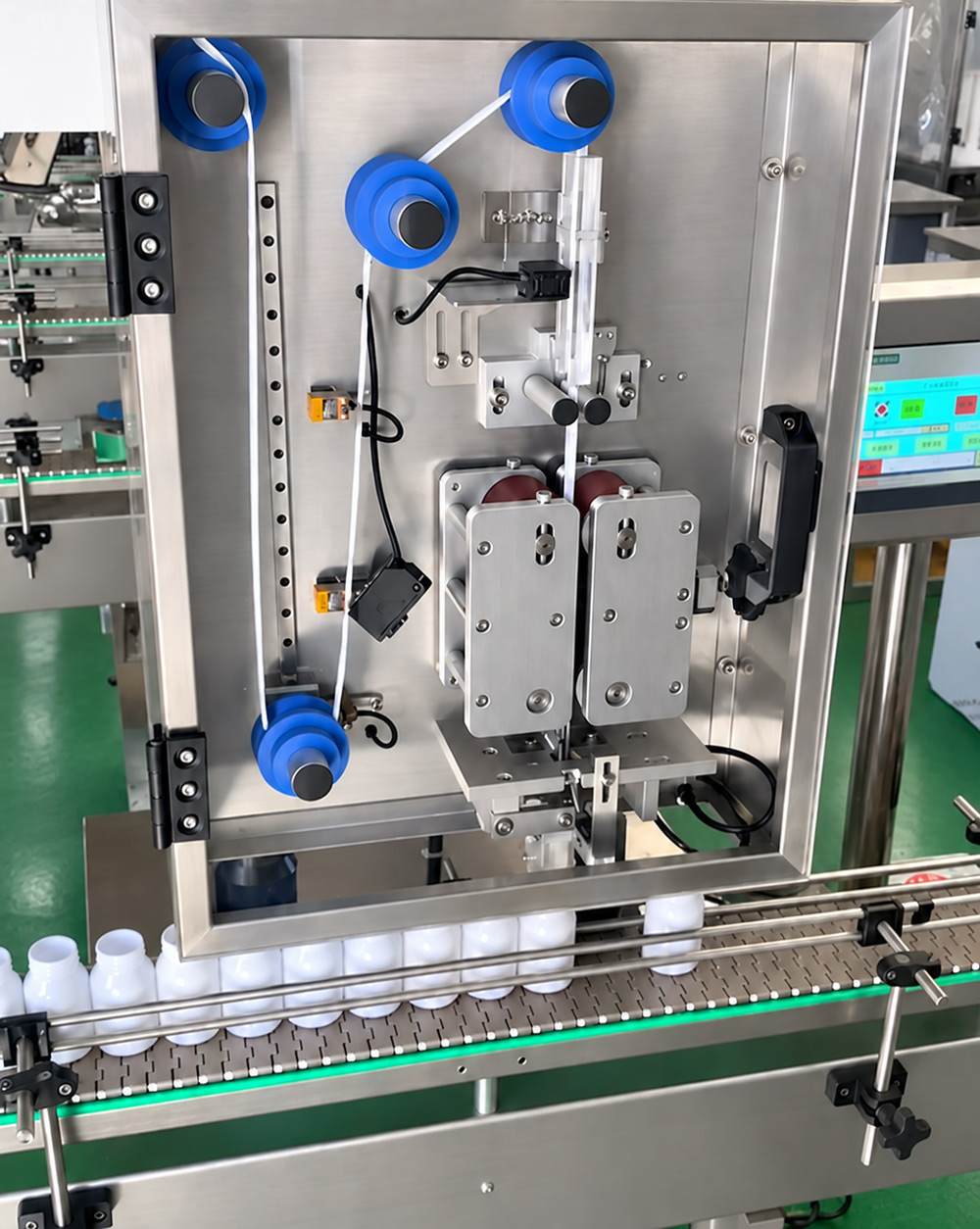

Bottle sensing
No bottle, no insert. At 160 bottles a minute that adds up quickly in material cost.
Ideal Applications & Industries
Moisture-sensitive products with a desiccant
Probiotics, gummies and softgels. Non-absorbent fill material leaves the desiccant working on your product.
High-speed supplement lines
Lines running above 50 bottles a minute, where a cotton station would set the ceiling.
Contract packing
Line speed decides how many client orders fit into a shift.
Tall bottles with a lot of headspace
Where the product sits well below half the bottle height, one short insert does not restrain it.
What changing over involves
What you changed | What gets adjusted | Roughly how long |
Same bottle, different product | Nothing on this machine | 0 min |
Bottle neck changes | Hand adjustment, no tools | 15–30 minutes |
Number of inserts per bottle | Setting on the control panel | 15–30 minutes |
On a full line the counter, the capper and the labeler all adjust too. Ask us for the line number, not just this one.
Three things to check before you buy a cotton or rayon inserter
Whether it runs your bottle neck
The insert has to pass your bottle neck without folding. Send the supplier your actual bottle and a coil of the material you use, and ask them to run it before you order.
How it knows an insert went in
A bottle that leaves this station without fill material looks the same from the outside. Ask how the machine detects a missed insert, and what happens to that bottle.
Whether it keeps up with your counter
A fill-material station slower than your counting machine sets the speed of your whole line. Ask for the rate on your bottle and your material, not the brochure number.
Why Choose AIPAK?
One Point of Contact
One project engineer handles your inserter from proposal to commissioning, and the rest of your bottling line if it comes from us. You’re not chasing five suppliers for one answer.
We Run Your Bottles and Rayon Before You Order
Send us your bottles and a coil of the rayon or paper you use. We run them on the machine and send you the video. You decide whether to talk quotes after that.
A U.S. Number, Answered by Us
+1 (213) 526-8644, answered by our engineers 9 AM–7 PM China time, Monday to Friday. That’s evening and overnight in the U.S., so leave a message or send a WhatsApp anytime and we’ll pick it up first thing.
Spare Parts and Lead Time, in Writing
A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.
FAQ
It depends on your bottle neck and your line speed. Send us a bottle and your bottles per minute. We don’t publish a list price because configuration changes it.
It depends on the configuration. The lead time is confirmed in writing in your quote, along with the spare parts list.
No. You buy the rayon or paper coil locally. We set the machine up for the coil you use.
Bottle sensing means nothing is pushed when no bottle is there. If your QA plan needs a check that every bottle got its insert, tell us and we’ll confirm what can be added for your line.
Yes. We build to your U.S. supply at 60 Hz and confirm the voltage with your quote.
Fast enough to keep up with your counter. Nothing more. The counter sets your line speed. Every station after it follows.
Yes. Our machines are certified and use certified electrical components. Because the exact scope depends on the model and electrical configuration you select, our factory confirms it in writing before production.
Two questions. Is your product moisture-sensitive? Then rayon, because cotton absorbs moisture and eats into your desiccant. Does your line run faster than 50 bottles a minute? Then rayon again, because that is where the cotton station stops.
Usually, for supplements. Check your label and your spec first. If either names cotton, changing it is a documentation change, not just a purchasing one.
Yes, one to three pieces per bottle. That matters on tall bottles where one insert doesn’t fill the headspace.
A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.
Customers Also Interested In...
Check the fit before you order.
Two numbers decide this. Your bottle neck needs 18 mm or more for the insert to pass. Your line speed decides whether one rayon station keeps up with your counter.
Send us both. If rayon doesn’t fit your line, we’ll tell you and show you what does.
