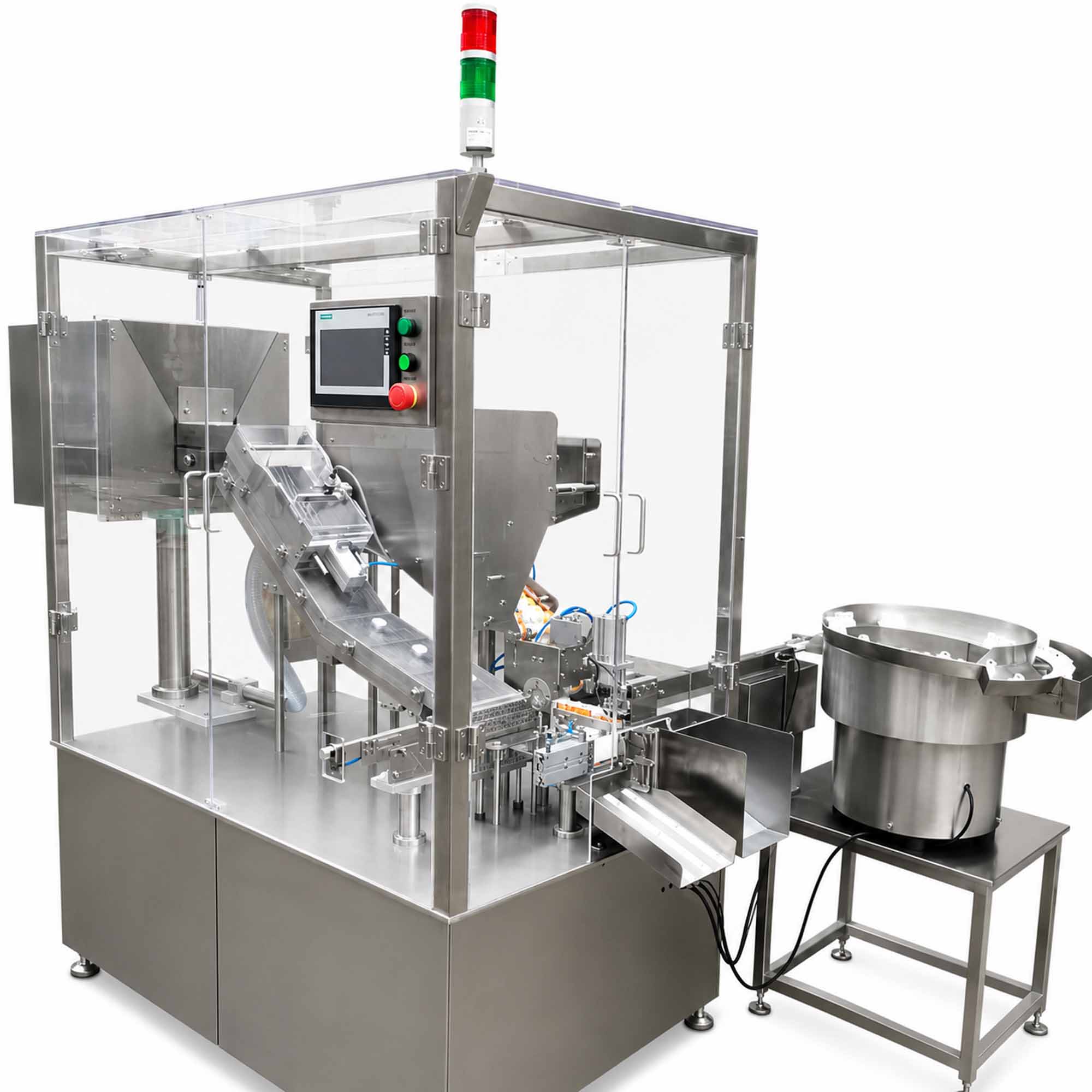

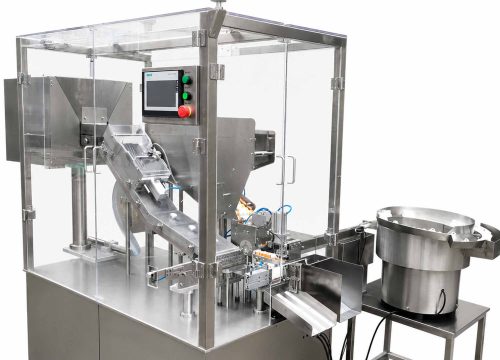

APK-60 High-Speed Automatic Effervescent Tablets Tube Filling Machine
50 to 60 tubes a minute, with automatic rejection of short-count tubes
Speed is the obvious difference — 50 to 60 tubes a minute against 40. The less obvious one matters more: this machine detects a tube that’s a tablet short and rejects it, rather than capping it and sending it down the line.
1. Speed: 50 to 60 tubes a minute
2. Short-count rejection: a tube missing a tablet is diverted, not capped
3. Tablets: Ø25 mm, up to 6 mm thick, 10 to 20 per tube
4. Power: 2 kW, built to your U.S. supply at 60 Hz
5. Weight: 1,000 kg. Check your floor before you order
Is this the right machine for you?
✓ Yes, if…
- You need 50 to 60 tubes a minute
- Short counts are a real cost for you — this is the only model that rejects them automatically
- You have 3.3 × 2 m of floor for it
✕ Buy something else if…
- You need 40 tubes a minute or fewer → the APK-40B does that in about a third of the floor space, at under half the weight
- Your floor can't take 1,000 kg → check before you order
- Your tablet hardness is under 5 kg → speed makes chipping worse, not better
Short-Count Tubes Leave the Line
The 40-series locks out the cap when a tablet is missing, which leaves you an uncapped tube travelling down the line. This machine pushes it out into a separate chute. At 60 tubes a minute, that’s the difference between finding it now and finding it at the packing bench.

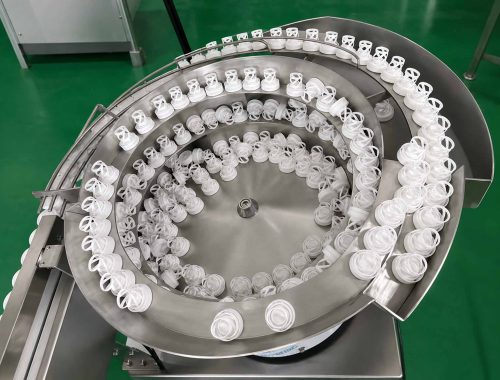

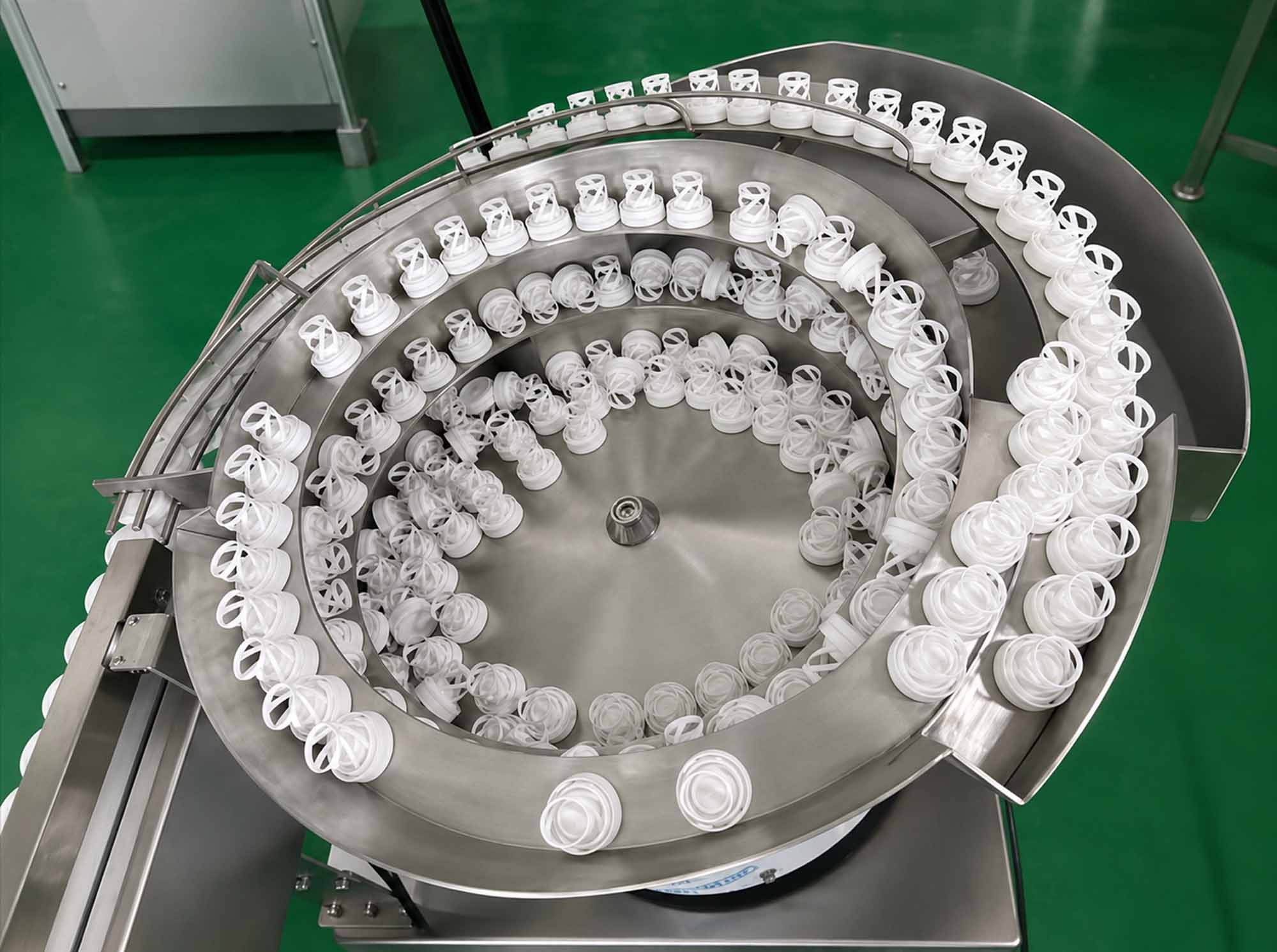

Cap Feed Sized for the Speed
A vibrating hopper orients caps and feeds them down the track continuously. On a 40-tube line the cap feed has slack; at 60 it doesn’t, which is why this machine’s sorter is scaled up rather than carried over.

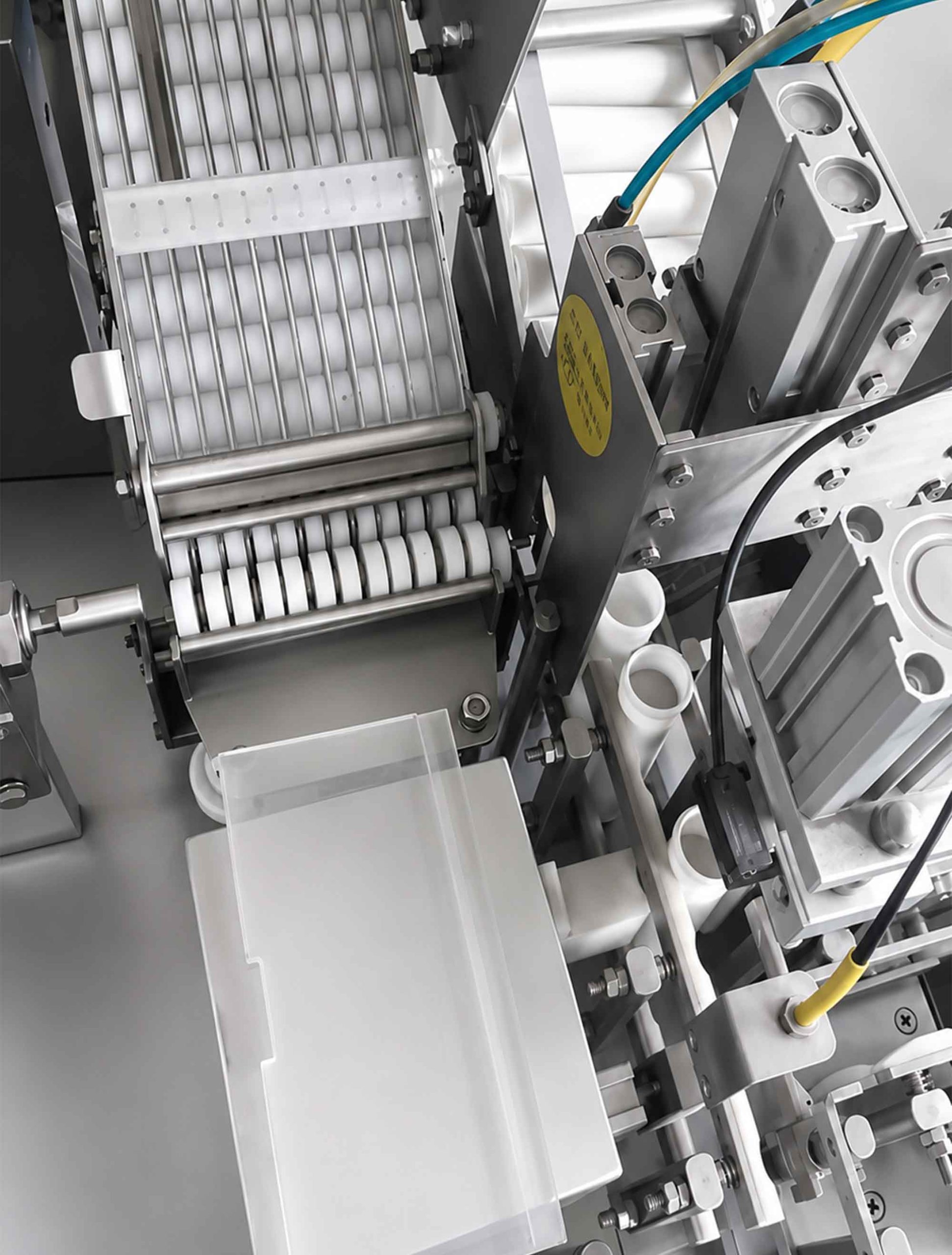

50 to 60 Tubes a Minute
Fifty percent more than the 40-series, from the same screening-and-row logic running faster. The tablets are still laid flat and pushed in sideways — speed here comes from the indexing and the cap feed keeping up, not from handling the tablets any harder.

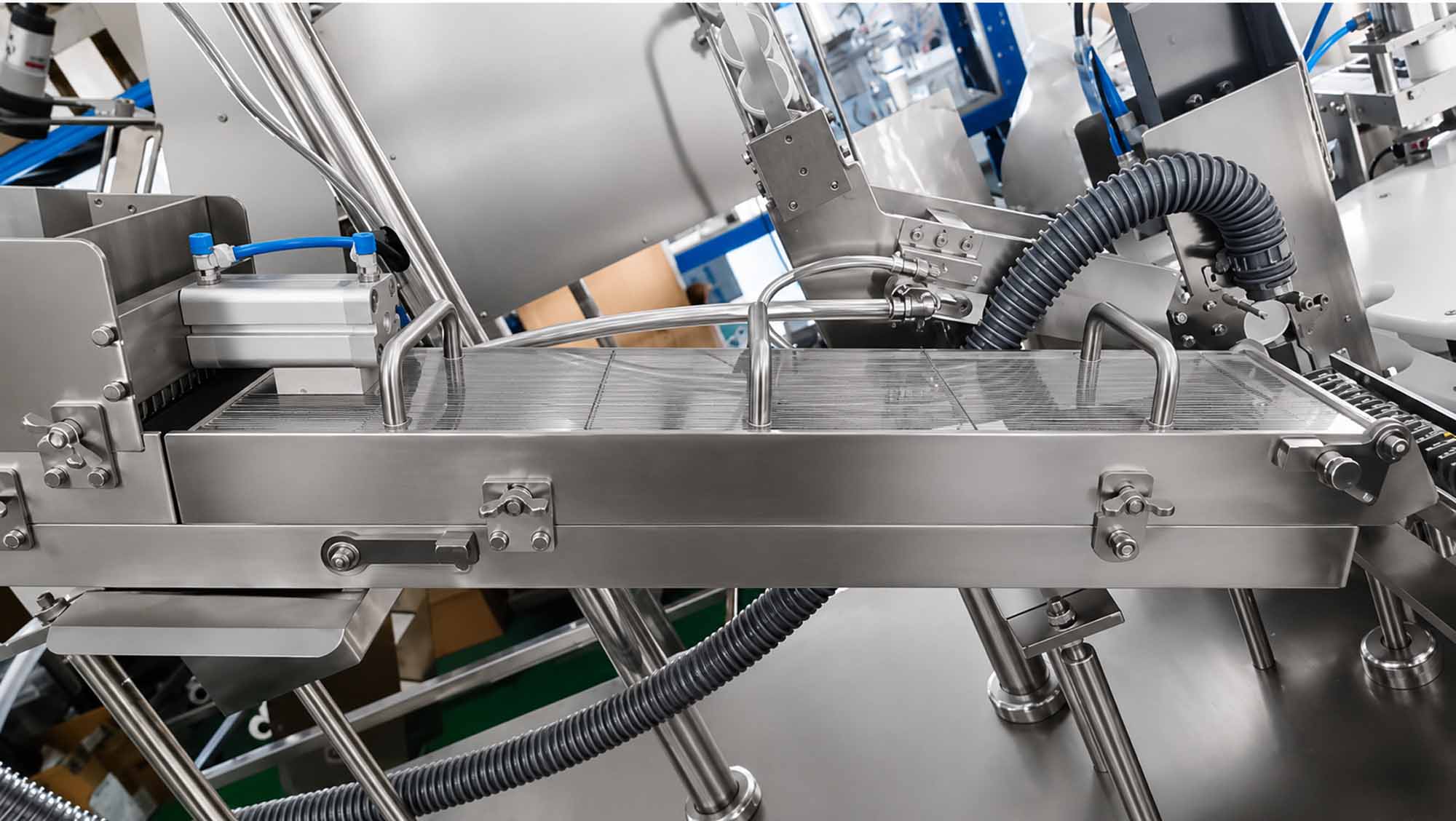

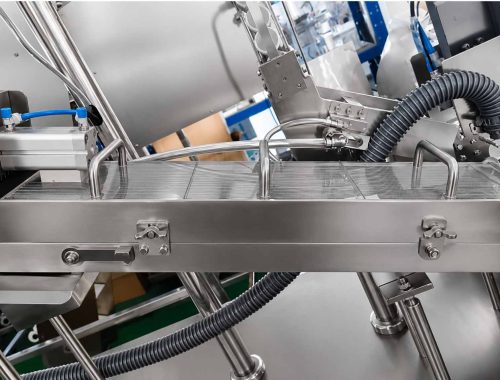

SUS316L Where the Tablets Touch
Effervescent tablets carry citric and malic acid, and they shed that acid as dust. Contact parts are SUS316L; the table canopy is SUS304.
Technical specification
| Specification | APK-60 | What it means for you |
|---|---|---|
| Speed | 50–60 tubes/min | Depends on tablet size and stack count |
| Tablets per tube | 10–20 | Set at build; tell us your count |
| Tablet diameter | 25 mm | — |
| Tablet thickness | Up to 6 mm | Thickness variance must stay within ±0.2 mm |
| Tablet hardness | Above 5 kg | Softer tablets chip in the track |
| Tube inner diameter | At least 2 mm larger than the tablet | Below that it jams |
| Indexing | Stepper motor and indexing disk | — |
| Short-count tubes | Pushed out into a separate chute | The 40-series locks out the cap instead |
| Control | Siemens PLC and touchscreen | — |
| Power | 2 kW, 60 Hz | Built to your U.S. supply. We confirm the voltage with your quote |
| Compressed air | 0.5–0.6 MPa, up to 0.24 m³/min | — |
| Dust port | 38 mm | Extractor supplied by you |
| Dimensions | 3,300 × 2,000 × 1,750 mm | — |
| Weight | 1,000 kg | Check your floor before you order |
| Contact parts | SUS316L | Frame cover SUS304 |
Model comparison
| Model | Indexing | Speed | Power | Weight |
| APK-40A | Pneumatic | 35–40 tubes/min | 1.2 kW | 420 kg |
| APK-40B | Stepper + indexing disk | 35–40 tubes/min | 1.5 kW | 420 kg |
| APK-60 | Stepper, with short-count rejection | 50–60 tubes/min | 2 kW | 1,000 kg |
| APKZL-60 | Tube labeller | 60 tubes/min | 0.8 kW | 320 kg |
The 40A and 40B run at the same speed and weigh the same. What differs is how each station is stopped — and that shows up when your tablet thickness varies.
Production Applications
Vitamin C and immunity effervescents
Electrolyte and hydration tablets
Thinner tablets in the same tube. Thickness consistency matters more than diameter here.
Magnesium and mineral effervescents
Larger, denser tablets. Check hardness — under 5 kg they chip in the track.

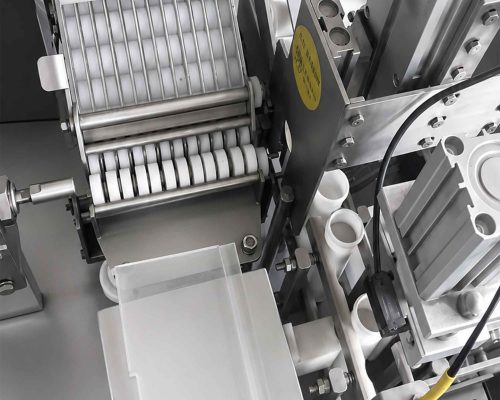

Long runs at volume
One tablet spec for weeks at 50 to 60 tubes a minute. At that rate, pushing out short-count tubes is what saves you from finding them at the packing bench.
What changing over involves
What changed | What you adjust | Roughly |
Same tablet, different count per tube | Track setting | 15–30 minutes |
Different tube diameter | Tube guides and cap vibrating disk | 15–30 minutes |
Different tablet diameter | Row alignment rails and track guides | 15–30 minutes |
Tablet thickness drifts within ±0.2 mm | Nothing — but that’s the limit | — |
Beyond ±0.2 mm of thickness variance, no adjustment fixes it, on this machine or any other.
What to check before you buy
Your tablet, before the machine
Hardness above 5 kg, thickness variance within ±0.2 mm, and a tube at least 2 mm wider inside than your tablet. Those three decide whether any tube filler runs cleanly on your product — ask any supplier to confirm them against your actual samples.
What happens to a short-count tube
Some machines lock out the cap. Others push the tube out of the line. Ask which, because one of them still leaves you a tube to find at the packing bench.
Installation and training
Ask what's included and what costs extra.
Why Choose AIPAK?
One Point of Contact
One project engineer handles your machine from proposal to commissioning, so you’re not chasing five suppliers for one answer.
We Run Your Tablets and Tubes Before You Order
Send us some tablets and empty tubes. We run them on the machine and send them back, so you can check the count and the tablet edges yourself. You decide whether to talk quotes after that.
A U.S. Number, Answered by Us
+1 (213) 526-8644, answered by our engineers 9 AM–7 PM China time, Monday to Friday. That’s evening and overnight in the U.S., so leave a message or send a WhatsApp anytime and we’ll pick it up first thing.
Spare Parts and Lead Time, in Writing
A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.
Questions About the APK-60
The machine is engineered around a horizontal vibratory sorting table and screening channels that arrange tablets into a single overlapping row. Tablets are systematically aligned flat before a gentle mechanical cylinder shuffles them into the tube mouth, entirely removing vertical drops and preserving raw tablet hardness.
To ensure reliable row counting and jam-free insertion, your raw formulation must maintain a minimum hardness threshold of above 5kg. Additionally, to prevent count variations from cumulative stacking errors, tablet thickness variance must remain within a tight tolerance of ±0.2mm.
The line features a multi-point sensor verification array governed by the Siemens PLC. If a container displays an incorrect tablet count or experiences a capping failure, the system skips the sealing step to protect component integrity and automatically directs that specific uncapped tube into an integrated rejection chute.
The sorting track drops fine powder away from the tablet path as it runs. The rest is taken away through a 38 mm port that connects to your own dust extractor. The extractor itself isn’t included.
Yes. Your operator adjusts or swaps the tube feed rails, the cap vibrating disk and the row channels. The changeover table above shows what each change involves.
No. Your tube’s inner diameter has to be at least 2 mm larger than your tablet, or the tablets jam at the tube mouth.
Yes. We build to your U.S. supply at 60 Hz and confirm the voltage with your quote.
A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.
Customers Also Interested In...
Send Us Tablets and Tubes
Three things decide whether any of these machines runs cleanly on your product, and speed isn’t one of them.
Your tablets need to be harder than 5 kg — softer than that and the edges chip in the track. Thickness has to stay inside ±0.2 mm, or the stack height drifts and the count goes wrong. And your tube’s inner diameter has to be at least 2 mm wider than your tablet, or it jams at the mouth.
Send us samples of both and we’ll check all three before we quote. If your tablet doesn’t clear one of them, we’d rather tell you now than after the machine ships.
- Reply within one business day
- Your tablets and tubes run on the machine before you order
- Your formula and specs stay with us
