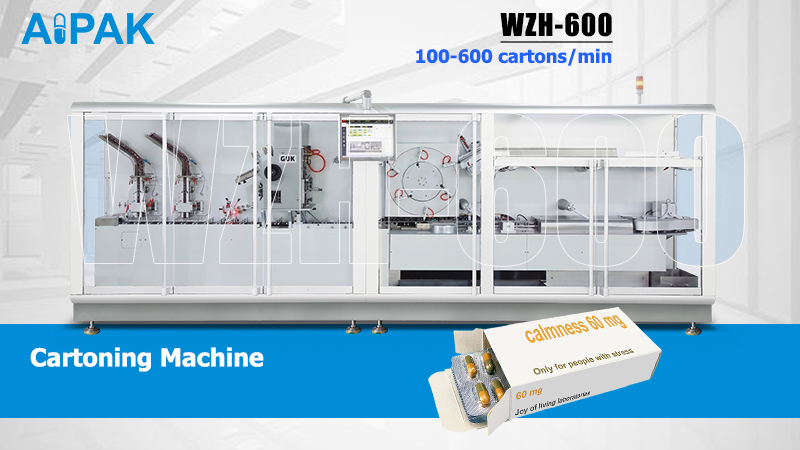

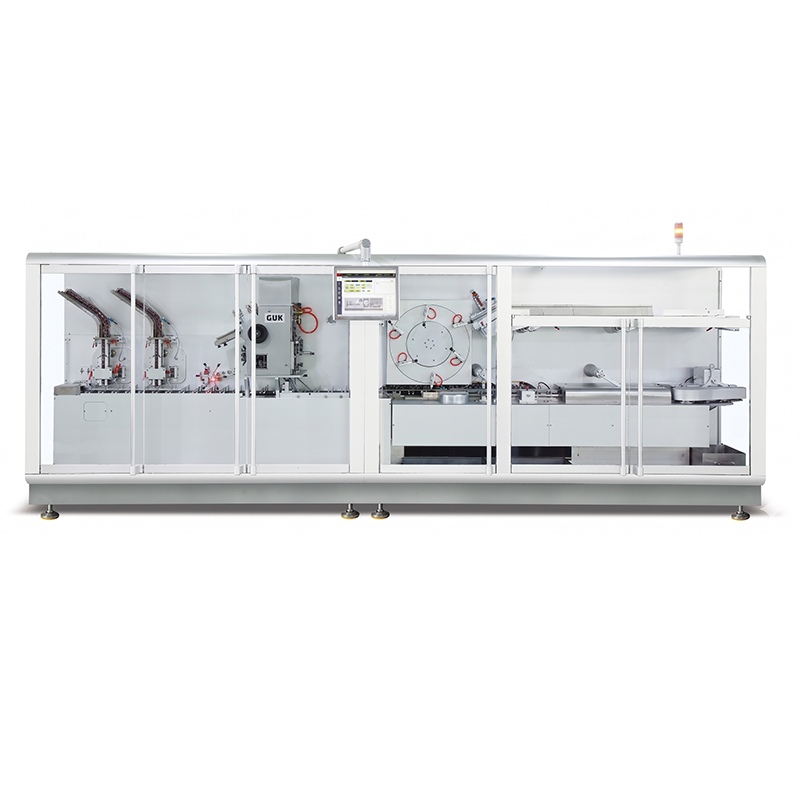

WZH-600 High-Speed Intelligent Continuous Cartoning Machine
600 Cartons a Minute, with Format Changes Set on the Touchscreen
The WZH-600 is our full-servo cartoner at 600 cartons a minute. Every main mechanism is driven by its own servo, so changing product size is done by entering numbers on the touchscreen — there is no manual re-timing at all. It is the only machine in our range where a format change is a screen operation rather than a mechanical one.
1. Speed: 600 cartons per minute
2. Full servo: every main mechanism on its own servo, format changes set on screen
3. Formats: blisters, bottles, tubes, ALU strips, sachets
Is this the right machine for you?
✓ Yes, if…
- You need 450 to 600 cartons a minute
- You change product size often and want it done on screen
- Your floor can take 5,500 kg and 5,100 × 1,850 mm
✕ Buy something else if…
- You run below 450 a minute → the WZH-450 does the same carton range for less
- You change size once a year → the servo changeover is the reason to buy this machine. If you don't change often, you are paying for something you won't use
- Your supply is under 15 kW at this station → this machine draws three times what the 260 does
Every mechanism on its own servo
Each main mechanism is driven by one or two dedicated servos. Timing between them is electronic, not mechanical. That is what makes the next point possible.
Format change on the screen
You enter the new carton and product dimensions on the touchscreen and the machine re-times itself. There is no manual adjustment. On a plant running many SKUs, this is the difference between changeover being a job and being a step.
Leaflet up to 300 mm, 1 to 4 folds
The folder handles the full range at 600 cartons a minute.

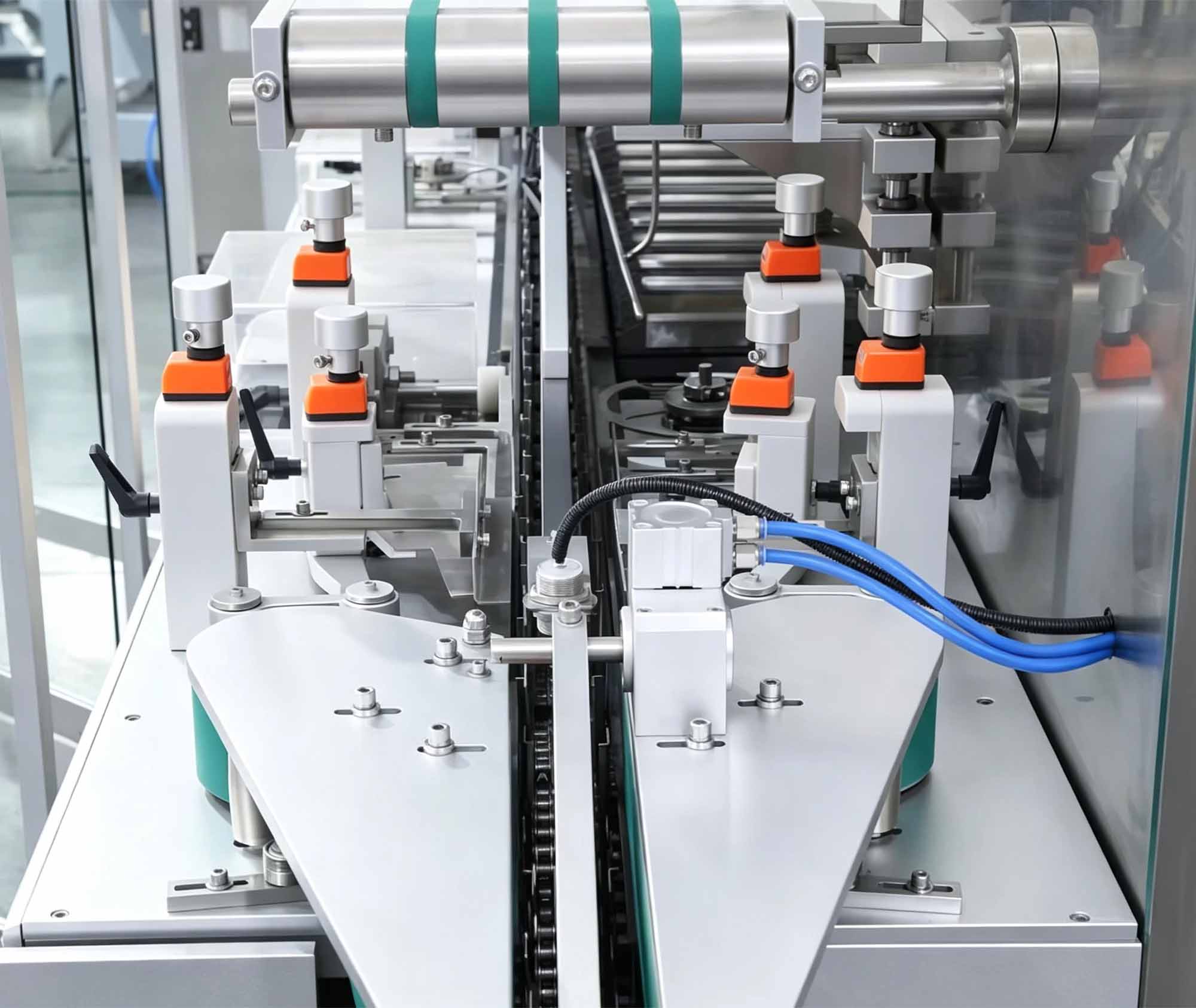

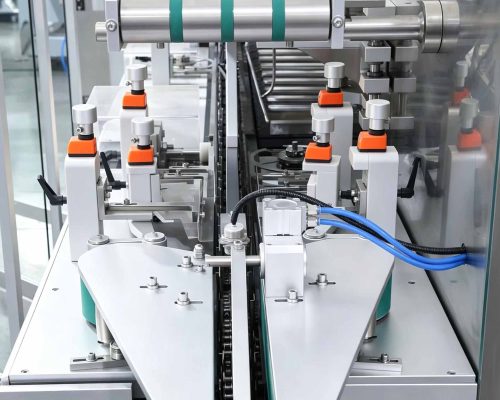

Separated drive zone
The drive components sit behind the working area, not under it.
Technical specification
Parameter | Value |
Model | WZH-600 |
Encasing Speed | 600 cartons/min |
Carton Size Range (L x W x H) | 70-180 × 35-80 × 14-50 mm |
Leaflet Material Quality | 60 – 70 g/m² |
Unfolded Leaflet Size (L x W) | 80-300 × 90-180 mm |
Working Air Pressure | 0.6 MPa |
Air Consumption | 280–320 L/min |
Power Supply | Three-phase, 60 Hz. Built to your U.S. supply; we confirm the voltage with your quote |
Main Motor Power | 15 kW |
Machine Weight | 5,500 kg |
Dimensions | 5,100 × 1,850 × 2,000 mm |
Model comparison
Model | Speed | What it packs | Carton L×W×H (mm) | Leaflet unfolded | Power |
WZH-120-III | 30–120 | Blister packs | 70-180 × 35-85 × 14-50 | 80-250 × 90-180 | Single-phase, 1.5 kW |
WZH-120P | 30–120 | Bottles, with infeed unscrambling | 70-180 × 35-85 × 14-50 | 80-250 × 90-180 | Single-phase, 1.5 kW |
WZH-120D | 30–120 | Sachets and pouches, 1–12 per carton | 70-180 × 35-85 × 14-50 | 80-250 × 90-180 | Three-phase, 4 kW |
WZH-180 | 180 | Blisters, tubes, trays, bottles, sachets | 70-165 × 35-85 × 14-50 | 80-300 × 90-180 | Three-phase, 4.5 kW |
WZH-260 | 260 | Blisters, tubes, trays, sachets | 70-180 × 35-80 × 14-50 | 80-300 × 90-180 | Three-phase, 5 kW |
WZH-260P | 260 | Bottles, with infeed unscrambling | 70-180 × 35-80 × 14-50 | 80-300 × 90-180 | Three-phase, 5 kW |
WZH-320 | 320 | Blisters, bottles, tubes, sachets | 70-180 × 35-80 × 14-50 | 80-300 × 90-180 | Three-phase, 5.8 kW |
WZH-450 | 450 | Blisters, tubes, trays, sachets | 70-180 × 35-80 × 14-50 | 80-300 × 90-180 | Three-phase, 5 kW |
WZH-600 | 600 | Blisters, bottles, sachets · full servo | 70-180 × 35-80 × 14-50 | 80-300 × 90-180 | Three-phase, 15 kW |
Two things decide the model, and speed is only the second one.
What you pack comes first. Blisters, bottles and sachets each need a different feeder at the infeed. In the 120 series that is three separate machines. Above 120 the machines are more general, except the 260P, which is built for bottles.
Carton size is almost the same across the range. Every model takes a carton 70 to 180 mm long, except the WZH-180, which stops at 165 mm. Only the width narrows slightly above 180 cartons a minute, from 85 to 80 mm. So you do not lose carton flexibility by buying speed.
Industry Applications
High-SKU Supplement Plants
Many products and carton sizes on one line. Each format change is entered on the screen rather than set by hand.
Supplement Blister Lines
Downstream of a dual-lane or high-speed blister machine, two or three plates to a carton with a leaflet.
Bottles, Tubes and Sachets
Supplement bottles, ointment tubes and sachets on the same machine, with a change of feeder.
Changeover
Throughput sells machines. Changeover decides what you actually produce in a week.
What changed | What you adjust | Roughly |
Same carton, new batch | Recipe on the screen | A few minutes |
Carton length or width | Entered on the touchscreen; the servos re-time the machine | A few minutes |
Carton or product height | The pusher head and pusher block must be swapped | 15–30 minutes |
Product format changes | The feeder at the infeed | 15–30 minutes |
Closing style (tuck-in → glue) | Not a changeover. That is a rebuild | — |
Length and width are a screen setting. Height means changing the pusher. A different product means a different feeder. A different closing style means a different machine.
What to check before you buy
The five questions any supplier should ask you
What goes in the carton and how many. Carton dimensions and closing style. Leaflet format and whether it arrives folded. What feeds the machine upstream. Target speed. If a supplier quotes you without these, the machine that arrives will not fit the line it was bought for.
Carton sizing — where most projects go wrong
Manually packed cartons are usually a snug fit around the product. An automated pusher needs clearance. Send us both your product and carton dimensions. We will tell you before you order whether your existing carton runs, or needs modifying — rather than after it has been printed in quantity.
The documentation
Operating and maintenance manuals in English, electrical schematics, a spare parts list with part numbers and prices, and a signed FAT report before the machine ships. Ask any supplier to show you a sample manual page before you order.
Why Choose AIPAK?
One Point of Contact
You deal with us for the machine, the installation and the service call. Custom feeders, closing configurations and layout changes go through the engineers who build it.
Your Carton Checked Before You Order
Send us your carton and product dimensions. We tell you before you order whether your carton runs as it is or needs changing, not after it has been printed in quantity.
A U.S. Number, Answered by Us
+1 (213) 526-8644, answered by our engineers 9 AM–7 PM China time, Monday to Friday. That’s evening and overnight in the U.S., so leave a message or send a WhatsApp anytime and we’ll pick it up first thing.
Spare Parts and Lead Time, in Writing
A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.
WZH-600 Cartoning Machine FAQ
Changeover. On a mechanical machine, changing carton size means adjusting handwheels and re-timing mechanisms by hand. On this one you enter the dimensions on the screen and the servos re-time themselves. If you change carton size several times a week, that time adds up.
The leaflet folder runs on its own servo, timed electronically to the main drive. Holding fingers clamp the folded leaflet, and the pusher slides it into the carton together with the product while both are moving.
Yes. You set the plate count on the touchscreen, for example 2, 3 or 4 plates per carton.
Overload protection stops the machine, sounds an alarm and shows on the touchscreen where the fault is, so the operator goes straight to it.
Yes. We build to your U.S. supply at 60 Hz and confirm the voltage with your quote.
A kit of wear parts ships with your machine. Every part in the kit, and the lead time for anything outside it, is listed in your quote in writing.
